0.6mm PTFE Insulation Silver Thermocouple Cable With Kapton Film Jacket

Name: 0.6mm PTFE Insulation Silver Thermocouple Cable With Kapton Film Jacket
Brand: Tankii alloy
SKU: silver wire
Rating: 4.5 (185 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii alloy

Certification: ISO9001

Model Number: silver wire

Payment & Shipping Terms

Minimum Order Quantity: 1000M

Price: Negotiation

Packaging Details: 100m per roll with plastic film wrapped and carton package

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000Ton per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    high temperature thermocouple cable, type k thermocouple wire


Wire Color:	Silver	Insulation Material:	PTFE , Kapton
Conductor Type:	Solid Wire	Standard:	GB
Temperature:	250 Degrees	Package:	On Bobbin In Carton Box
Leadting Time:	5-7 Days	Brand Name:	Tankii Alloy

Wire Color:	Silver
Insulation Material:	PTFE , Kapton
Conductor Type:	Solid Wire
Standard:	GB
Temperature:	250 Degrees
Package:	On Bobbin In Carton Box
Leadting Time:	5-7 Days
Brand Name:	Tankii Alloy

Description

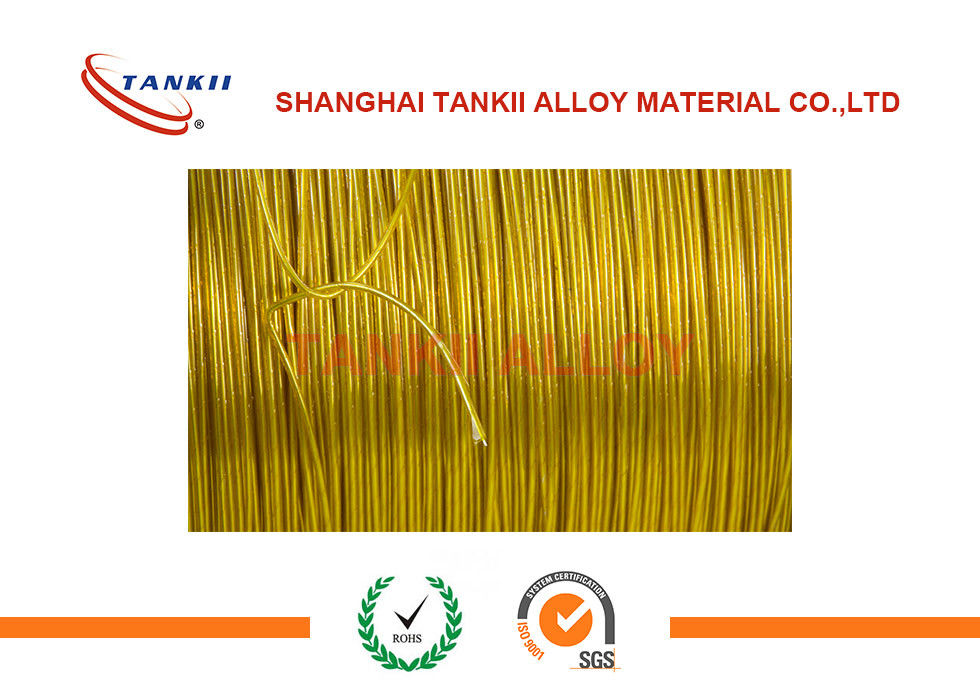

0.6mm PTFE Insulation Silver Thermocouple Cable With Kapton Film Jacket

0.6mm Silver Wire With PTFE Insulation And Kapton film Jacket withstand 6000v puncture voltage

The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).

Mineral insulated cable ( MI cable ) , enamelled wire, ribbon wire, rods can be Customized according to your request.

Noble metal wire can be insulated with PTFE, kapton, pvc as per the customer's request.

Application Range:

• Heating – Gas burners for ovens
• Cooling – Freezers
• Engine protection – Temperatures and surface temperatures
• High temperature control – Iron casting

Different color codes can be supplied as per the request of the customers.

Detailed Description on thermocouple cable

Thermocouple Code	Comp. Type	Comp. Wire Name	Positive		Negative
Thermocouple Code	Comp. Type	Comp. Wire Name	Name	Code	Name	Code
S	SC	copper-constantan 0.6	copper	SPC	constantan 0.6	SNC
R	RC	copper-constantan 0.6	copper	RPC	constantan 0.6	RNC
K	KCA	Iron-constantan22	Iron	KPCA	constantan22	KNCA
K	KCB	copper-constantan 40	copper	KPCB	constantan 40	KNCB
K	KX	Chromel10-NiSi3	Chromel10	KPX	NiSi3	KNX
N	NC	Iron-constantan 18	Iron	NPC	constantan 18	NNC
N	NX	NiCr14Si-NiSi4Mg	NiCr14Si	NPX	NiSi4Mg	NNX
E	EX	NiCr10-Constantan45	NiCr10	EPX	Constantan45	ENX
J	JX	Iron-constantan 45	Iron	JPX	constantan 45	JNX
T	TX	copper-constantan 45	copper	TPX	constantan 45	TNX

The color of Insulation and Sheath
Type	Insulation Color		Sheath Color
	Positive	Negative	G		H
	Positive	Negative	/	S	/	S
SC/RC	RED	GREEN	BLACK	GRAY	BLACK	YELLOW
KCA	RED	BLUE	BLACK	GRAY	BLACK	YELLOW
KCB	RED	BLUE	BLACK	GRAY	BLACK	YELLOW
KX	RED	BLACK	BLACK	GRAY	BLACK	YELLOW
NC	RED	GRAY	BLACK	GRAY	BLACK	YELLOW
NX	RED	GRAY	BLACK	GRAY	BLACK	YELLOW
EX	RED	BROWN	BLACK	GRAY	BLACK	YELLOW
JX	RED	PURPLE	BLACK	GRAY	BLACK	YELLOW
TX	RED	WHITE	BLACK	GRAY	BLACK	YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign

Material Type	Continuous Operating Temp. / ℃	Abrasion Resistance	Chemical Resistance	Moisture Resistance	Solvent Resistance	Flame Resistance
PE	80	Good	Excellent	Excellent	Excellent	Poor
PVC	105	Very Good	Very Good	Good	Fair	Excellent
TPE	125	Excellent	Poor	Good	Good	Excellent
SILICONE	200	Good	Good	Excellent	Excellent	Excellent
FEP	200	Excellent	Excellent	Excellent	Excellent	Excellent
PFA	260	Excellent	Excellent	Excellent	Excellent	Excellent
PTFE	260	Good	Excellent	Excellent	Excellent	Excellent
B-GLASS FIBER	260	Good	Good	Fair	Good	Good
G-GLASS FIBER	510	Poor	Good	Good	Excellent	Excellent
Q-GLASS FIBER	704	Fair	Good	Good	Excellent	Excellent
VITREOUS SILICA FIBER	1100	Good	Good	Excellent	Excellent	Excellent
MINERAL INSULATION*	1100	Excellent	Excellent	Good	Excellent	Excellent

Delivery and Package:

1. Standard Export package in carton box or wooden case

2. Delivery by sea or air, in about 5-7 days after getting the payment
