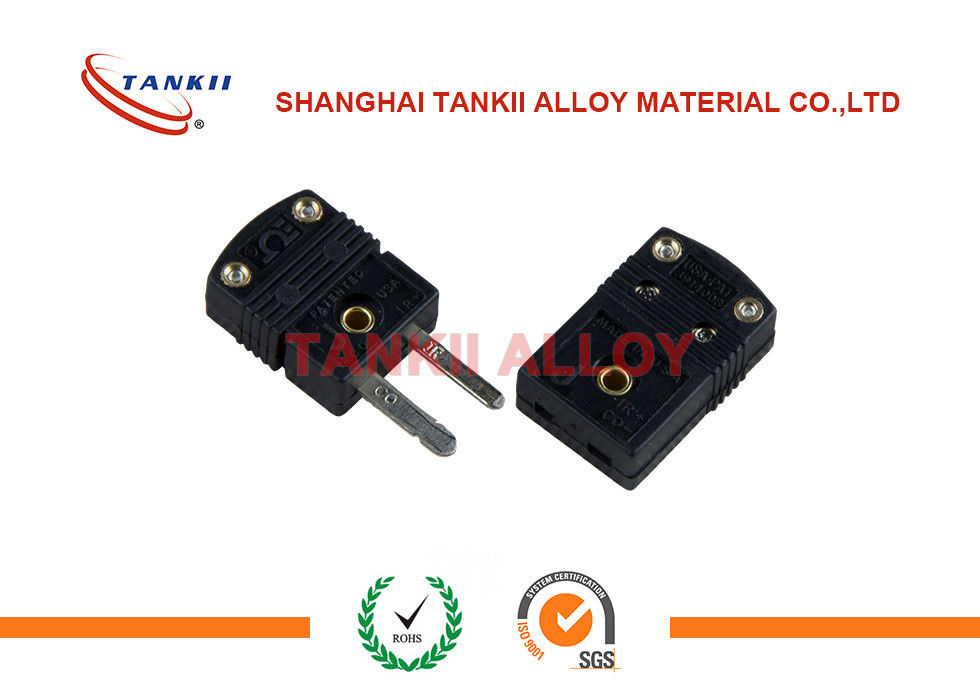

220v J Type Thermocouple Connector , Black Mini Male Connector Plug

220v J Type Thermocouple Connector , Black Mini Male Connector Plug
220v J Type Thermocouple Connector , Black Mini Male Connector Plug
220v J Type Thermocouple Connector , Black Mini Male Connector Plug 220v J Type Thermocouple Connector , Black Mini Male Connector Plug 220v J Type Thermocouple Connector , Black Mini Male Connector Plug 220v J Type Thermocouple Connector , Black Mini Male Connector Plug 220v J Type Thermocouple Connector , Black Mini Male Connector Plug

Large Image :  220v J Type Thermocouple Connector , Black Mini Male Connector Plug

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: J mini
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pcs
Price: Negotiation
Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery Time: 3-5 days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Piece/Pieces per day

220v J Type Thermocouple Connector , Black Mini Male Connector Plug

Description
Color: Blace Standard: GB
Type: J Male And Female Rated Current: 10A/15A/16A
Available Size: Mini And Big Customized: Avaliable
Item: J Type Thermocouple Connector 220v , Mini Male And Female Connector And Plug With Black Color
High Light:

thermocouple cable k type

,

high temperature thermocouple cable

J Type Thermocouple Connector 220v , Mini Male and Female Connector and Plug With Black Color



Quick Details



Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.


Thermocouple connectors have two types of pins. The standard sized male plugs have polarized round pins. The polarized pins prevent mismatched connections. Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks. The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application. High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.


All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.









Connector Type and Color

Type Color Conductor Material
KX yellow ( ANSI ) or green ( IEC ) NiCr-NiSi
NX orange NiCrSi-NiSiMg
EX purple NiCr-CuNi
JX black Fe-CuNi
TX blue Cu-CuNi
R/S green Cu-CuNi
PT100 white Cu/Ni



Miniature and standard connectors are available.



Pack and delivery:

Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm GW:22kg

Delivery time : 5-7 days after getting the payment

Delivery: By express



Application:





220v J Type Thermocouple Connector , Black Mini Male Connector Plug 0
