Product Details:
|
| Material: | Chromel Constantan | Surface: | Bright |
|---|---|---|---|
| Diameter: | 0.81mm | Grade: | II |
| Type: | EPX/ENX | Wire Dia: | 0.81mm |
| MOQ: | 5kg Per Size | Insulation: | Available |
| Leading Time: | 10-15 Days | Item: | Chromel Constantan Thermocouple Wire 20AWG Bare Wire Used For Extension Thermocouple Cable |
| High Light: | high temperature thermocouple wire,thermocouple lead wire |
||

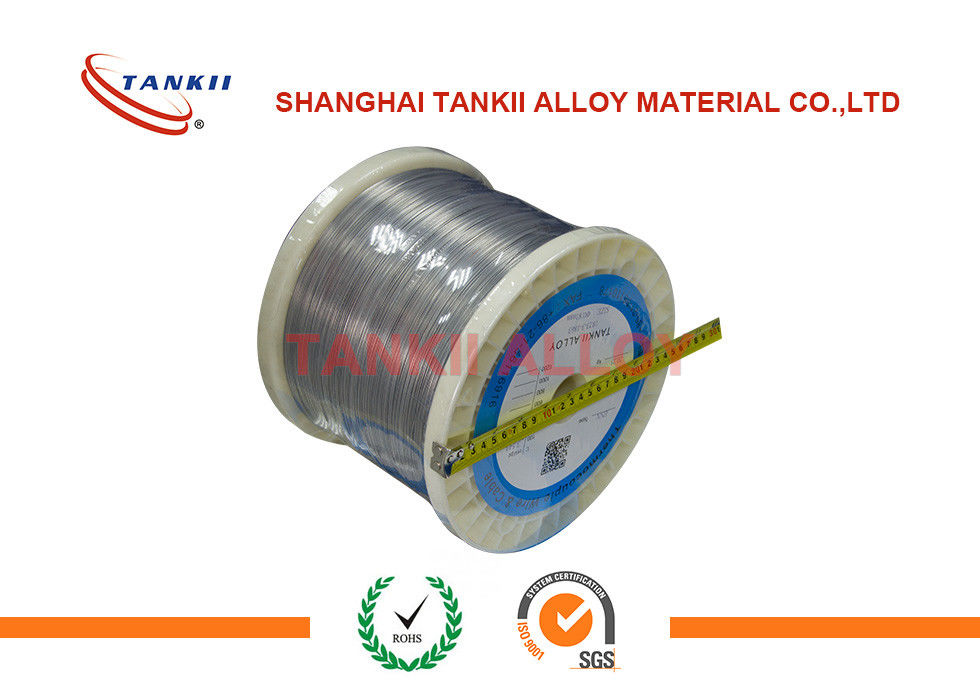

Chromel Constantan Thermocouple Wire 20AWG Bare Wire Used For Extension Thermocouple Cable
What is thermocouple wire?
Thermocouple wire allows temperatures to be measured electronically.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Other types of thermocouple are available.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
