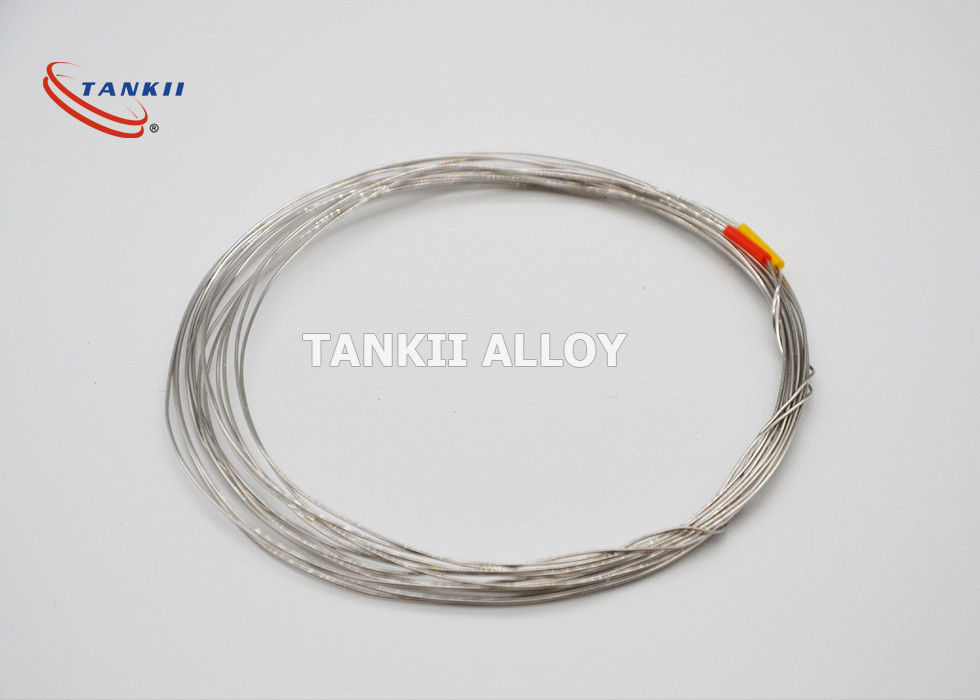

IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree

IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree
IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree

Large Image :  IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: S/R/B
Payment & Shipping Terms:
Minimum Order Quantity: 1m
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 10Ton per year

IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree

Description
Item: 0.035 To 0.5mm S /B/R Type Thermocouple Wire Used For Measuring 1600 /1700 Degress Application: High Temperature Thermocouples
MOQ: 1 Pair Meter Per Size For 0.5mm, Standard: IEC584
Package: In Coil Or Length Surface: Bright
Diameter: 0.04~5.0mm Leading Time: 5~10 Days After Getting The Payment
High Light:

R Type Thermocouple Bare Wire

,

Dia 0.04mm Thermocouple Bare Wire

,

IEC584 Thermocouple Bare Wire

0.035 To 0.5mm S /B/R Type Thermocouple Wire Used For Measuring 1600 /1700 Degress

Introduction:

Tankii Type S Thermocouple (Platinum Rhodium - 10% / Platinum): The Type S is used in very high temperature applications. Type S is  commonly found in the BioTech and Pharmaceutical industries. Type S is sometimes used in lower temperature applications because of its high accuracy and stability. The type S is often used with a ceramic protection tube.



Tankii Type S Temperature Range:

  • Maximum continuous operating temperature: up to 2,912F (1600C)
  • Short term use: up to 3,092F (1,700C)
  • Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
  • Extension wire, 32 to 392F (0 to 200C)

Tankii Type S – Special Order Upgrade

  • Accurate – Type S wire is the most accurate thermocouple wire available.
  • Responsive – The low mass ceramic protection tube insures that this thermocouple remains responsive.
  • Long Life – This thermocouple does not degrade and will virtually last forever if not broken.
  • No Drifting – Since this thermocouple does not degrade it will not drift.
  • Sealed tube – Protects probe from kiln atmosphere.


0.035 To 0.5mm S /B/R Type Thermocouple Wire Used For Measuring 1600 /1700 Degress

Characteristics:
Tankii thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1and IEC-2.


Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii noble metal thermocouple alloy wire with class 1 and 2 are available.

Application Range of S type thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Dental
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
11. Laboratory


0.035 To 0.5mm S /B/R Type Thermocouple Wire Used For Measuring 1600 /1700 Degress



Tankii noble metal Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t


Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



0.035 To 0.5mm S /B/R Type Thermocouple Wire Used For Measuring 1600 /1700 Degress
IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree 0IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree 1
IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree 2



 Delivery and Packing of thermocouple wire:

1. Packaging Details : Carton box.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree 3
IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree 4
IEC584 R Type Thermocouple Bare Wire Dia 0.04mm For Measuring 1700 Degree 5

High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry

Welcome to call me or email to me for more information on S /B/R  type thermocouple wire, Thermocouple cable, thermocouple flat wire, thermocouple strip.
