Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: 100 Meters
Price: Negotiation

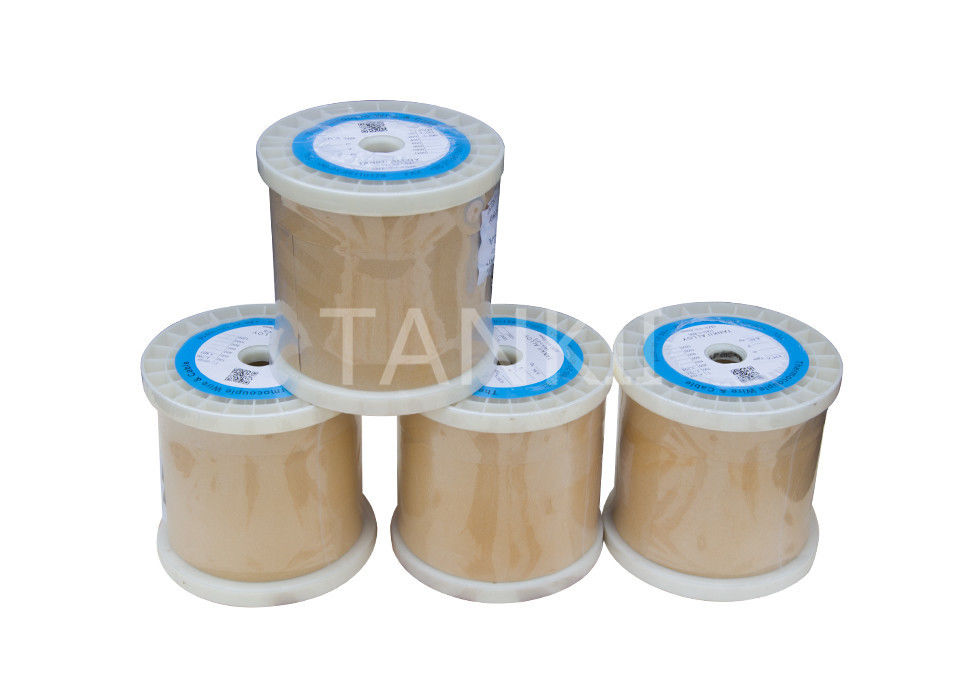

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 5-7 days
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per week
Material: |
Chromel Alumel |
Surface: |
Bright / Oxidized |
Diameter: |
0.1mm-8.0mm |
Grade: |
I/II/III |
Item: |
0.711mm Thermocouple Wire Type K Nicr - Nial With Bright And Smooth Surface |
Material: |
Chromel Alumel |
Surface: |
Bright / Oxidized |
Diameter: |
0.1mm-8.0mm |
Grade: |
I/II/III |
Item: |
0.711mm Thermocouple Wire Type K Nicr - Nial With Bright And Smooth Surface |
1. Introduction:
Thermocouple wire is usually used to connect thermocouple and display-controled meters in order to lower the inaccuracy caused by temperature change on the connections.
Quick Description
What is thermocouple wire?
Thermocouple wire allows temperatures to be measured electronically.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6
|
B | 600~1700 |
|
PtRh13-Pt
|
R | 0~1600 |
|
PtRh10-Pt
|
S | 0~1600 |
|
NiCr-NiSi
|
K | -200~1300 |
|
NiCr-CuNi (constantan)
|
E | -200~900 |
|
Fe-CuNi (constantan)
|
J | -40~750 |
|
Cu-CuNi (constantan)
|
T | -200~350 |
|
NiCrSi-NiSi
|
N | -200~1300 |
