Custom Thermocouple Bare Wire Type K N E J T Alloy IEC Class

Name: Custom Thermocouple Bare Wire Type K N E J T Alloy IEC Class
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: K Type Chromel Alumel Bare Wire
Price: 0.60 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: tankii

Certification: -

Model Number: K Type Chromel Alumel Bare Wire

Payment & Shipping Terms

Minimum Order Quantity: 50M

Price: USD 0.6-0.9/M

Packaging Details: -

Delivery Time: 10-15Days

Payment Terms: T/T

Supply Ability: 5000Tons/Year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Accurate Temperature Control Thermocouple Bare Wire, Industrial  Thermocouple Bare Wire, Versatile Thermocouple Bare Wire


Dia:	Customized	Item:	K /N /E / T /J Type Thermocouple Wire IEC Class
Chemical Composition:	Ni/Cr/Si/Al/Cu	Production Capacity:	60000kg/Month
Temperature Range:	-270~1372	HS Code:	75052200

Dia:	Customized
Item:	K /N /E / T /J Type Thermocouple Wire IEC Class
Chemical Composition:	Ni/Cr/Si/Al/Cu
Production Capacity:	60000kg/Month
Temperature Range:	-270~1372
HS Code:	75052200

Description

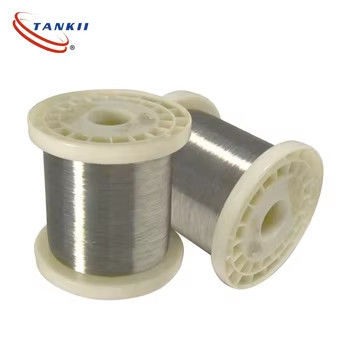

Custom Thermocouple Bare Wire Type K N E J T Alloy IEC Class

Customized High Precision Thermocouple Bare Alloy Wire (Type K/N/E/J/T)

Product Specifications

Diameter	Customized
Type	K/N/E/T/J Type Thermocouple Wire (IEC Class)
Chemical Composition	Ni/Cr/Si/Al/Cu
Production Capacity	60,000 kg/Month
Temperature Range	-270°C to 1372°C
HS Code	75052200

Product Description

Our high-precision thermocouple bare alloy wires are designed for electric insulation applications, available in Type K, N, E, J, and T configurations. These wires serve as compensating cables to connect thermocouple electrodes with display instruments, forming complete temperature measurement systems.

Ideal for demanding industrial applications including aerospace, nuclear power, and chemical processing, our thermocouple wires ensure accurate temperature measurement across extreme conditions.

Chemical Composition & Mechanical Properties

Thermocouple Type	Extension Conduction Model	Name	Code	Polarity	Chemical Composition (%)	Density (g/cm³)	Resistivity (μΩ.cm)	Tensile Strength (Mpa)
K	KX KCA KCB	Ni-Cr10	KPX	Positive	Ni90 Cr10	8.7	< 7.9	> 490
		Ni-Si3	KNX	Negative	Ni97 Si3	8.6	< 0.3	> 390

Alloy Wire Specifications

Diameter (mm)	Wire Cores	Cross-Sectional Area (mm²)
0.2	7	0.2
0.3	7	0.5

EMF Reference Values

Type	Model	Class	Temp (°C)	EMF (μV)	Tolerance	Range
K	KX KCA KCB	G	-25	-968	±44	-924~-1012
K	KX KCA KCB	G	100	4096	±44	4052~4140
