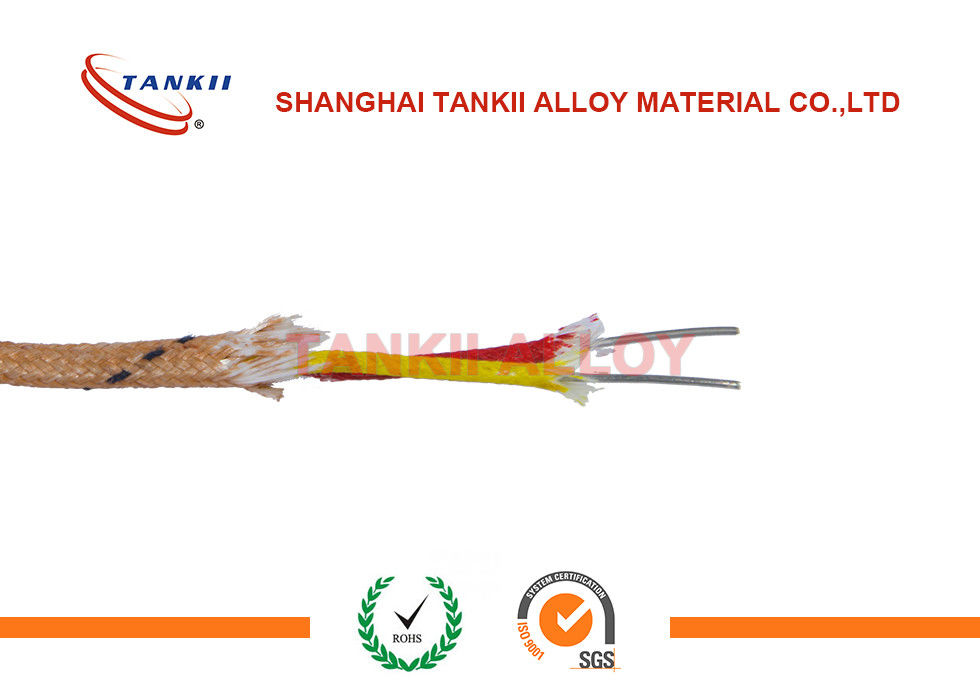

Extension Thermocouple Cable 20 Awg With Ansi Colour Code Yellow And Red

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: KX / JX / TX / LX / UX thermocouple wire

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 100m per roll with plastic film wrapped and carton package

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

thermocouple cable k type

,

high temperature thermocouple cable

Color:
Customized
Insulation Material:
PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type:
Solid/Stranded
Standard:
GB/IEC/ANSI/BS/DIN/JIS
Insulation:
Fiberglass
Temperature:
800-1000 Degrees
Package:
100m Per Roll In Carton Box
Leading Time:
5-7 Days
Brand Name:
Tankii
Color:
Customized
Insulation Material:
PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type:
Solid/Stranded
Standard:
GB/IEC/ANSI/BS/DIN/JIS
Insulation:
Fiberglass
Temperature:
800-1000 Degrees
Package:
100m Per Roll In Carton Box
Leading Time:
5-7 Days
Brand Name:
Tankii
Description
Extension Thermocouple Cable 20 Awg With Ansi Colour Code Yellow And Red
Thermocouple extension Cable Type k 20 AWG with ANSI colour code yellow and red


Thermocouple wire is available in either thermocouple grade or extension grade. Extension grade wire is recommended for use in connecting thermocouples to the sensing or control equipment. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response and service life should be considered.


When investigating the best high temperature cable for your requirements, be sure to examine conductor listings. For thermocouple wire, conductors are designated by a "Type" labeling that refers to the materials used in the wire. For example, Type K Thermocouple Wire refers to “Chromel/Alumel” and Type T Thermocouple Wire refers to “Copper/Constantan.”

Type K and Type T are suitable for diverse measuring applications. Type K thermocouple wire, widely popular, is designated as general-purpose and is usually low cost. Type T thermocouple wire is commonly preferred for uses such as electrical generators. Type K and Type T are just a sampling of the styles of high temperature cable that we offer. Although these our are most frequently requested types, we carry other styles, including Type N and Type J. Type N Wire is made with Nicrosil/Nisil and Type J Wire is made with Iron/Constantan.



Mineral insulated cable ( MI cable ) , enamelled wire, ribbon wire, rods can be Customized according to your request.

Application Range:
•  Heating – Gas burners for ovens
•  Cooling – Freezers
•  Engine protection – Temperatures and surface temperatures
•  High temperature control – Iron casting

Different color codes can be supplied as per the request of the customers.

Detailed Description on thermocouple cable

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX


The color of Insulation and Sheath

Type Insulation Color Sheath Color
Positive Negative G H
/ S / S
SC/RC RED GREEN BLACK GRAY BLACK YELLOW
KCA RED BLUE BLACK GRAY BLACK YELLOW
KCB RED BLUE BLACK GRAY BLACK YELLOW
KX RED BLACK BLACK GRAY BLACK YELLOW
NC RED GRAY BLACK GRAY BLACK YELLOW
NX RED GRAY BLACK GRAY BLACK YELLOW
EX RED BROWN BLACK GRAY BLACK YELLOW
JX RED PURPLE BLACK GRAY BLACK YELLOW
TX RED WHITE BLACK GRAY BLACK YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign









































Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PE 80 Good Excellent Excellent Excellent Poor
PVC 105 Very Good Very Good Good Fair Excellent
TPE 125 Excellent Poor Good Good Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent





Delivery and Package:
1. Standard Export package for thermocouple wire
2. Delivery by sea or air, in about 5-7 days after getting the payment
Extension Thermocouple Cable 20 Awg With Ansi Colour Code Yellow And Red 0
