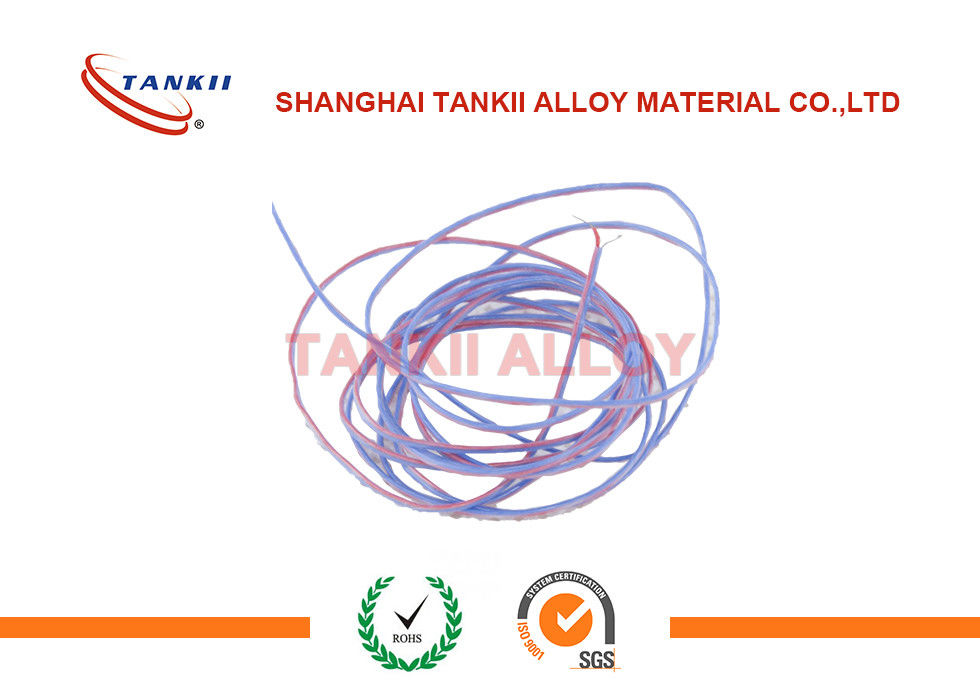

Tankii Alloy k Type Thermocouple Element k Type Thermocouple Insulated Cable Pfa With Crystal Color
1. Insulator Material
Silicone, fiberglass, PTFE, PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton
2. Sheath Material
Silicone, fiberglass, PTFE, PFA, FEP, PTFE, PVC,Quartz Fiber, Kapton
3. Conductor material
KX, JX, TX, EX, NX, SC.
4.Color code
ANSI, IEC, DIN, JIS, BS etc
5.Size:
Customized
6.MOQ:
200m
7.Samples Time:
(1)3-5days-If you want the exact size you need
(2)1day-For our available samples for reference.
8.OEM Accepted
Yes
9.Certification available:
Yes
10. Packing Details:
100m/roll, 200m/roll, 1000m/ carton, Carton size: 50*50*27cm GW:30kg
11.Production Capacity:
1000,000m Per month.
Detailed Description
| Thermocouple Code |
Comp. Type |
Comp. Wire Name |
Positive |
Negative |
| Name |
Code |
Name |
Code |
| S |
SC |
copper-constantan 0.6 |
copper |
SPC |
constantan 0.6 |
SNC |
| R |
RC |
copper-constantan 0.6 |
copper |
RPC |
constantan 0.6 |
RNC |
| K |
KCA |
Iron-constantan22 |
Iron |
KPCA |
constantan22 |
KNCA |
| K |
KCB |
copper-constantan 40 |
copper |
KPCB |
constantan 40 |
KNCB |
| K |
KX |
Chromel10-NiSi3 |
Chromel10 |
KPX |
NiSi3 |
KNX |
| N |
NC |
Iron-constantan 18 |
Iron |
NPC |
constantan 18 |
NNC |
| N |
NX |
NiCr14Si-NiSi4Mg |
NiCr14Si |
NPX |
NiSi4Mg |
NNX |
| E |
EX |
NiCr10-Constantan45 |
NiCr10 |
EPX |
Constantan45 |
ENX |
| J |
JX |
Iron-constantan 45 |
Iron |
JPX |
constantan 45 |
JNX |
| T |
TX |
copper-constantan 45 |
copper |
TPX |
constantan 45 |
TNX |
| |
| The color of Insulation and Sheath |
| Type |
Insulation Color |
Sheath Color |
| Positive |
Negative |
G |
H |
| / |
S |
/ |
S |
| SC/RC |
RED |
GREEN |
BLACK |
GRAY |
BLACK |
YELLOW |
| KCA |
RED |
BLUE |
BLACK |
GRAY |
BLACK |
YELLOW |
| KCB |
RED |
BLUE |
BLACK |
GRAY |
BLACK |
YELLOW |
| KX |
RED |
BLACK |
BLACK |
GRAY |
BLACK |
YELLOW |
| NC |
RED |
GRAY |
BLACK |
GRAY |
BLACK |
YELLOW |
| NX |
RED |
GRAY |
BLACK |
GRAY |
BLACK |
YELLOW |
| EX |
RED |
BROWN |
BLACK |
GRAY |
BLACK |
YELLOW |
| JX |
RED |
PURPLE |
BLACK |
GRAY |
BLACK |
YELLOW |
| TX |
RED |
WHITE |
BLACK |
GRAY |
BLACK |
YELLOW |
| Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign |
Packaging & Delivery
| Packaging Details |
Roll with plastic film wrapped and carton package |
| Delivery Detail |
Shipped in 7 days after payment |
Application:
FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request
4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
5. What is your warranty ?
For most of our products, the warranty will be 12 months.
6. When will I get a solution for defective products?
Within 48 hours (on working days )
7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
8. What is your shipping time?
For General Orders, the shipping time will be 5 workdays.
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business. Welcome to call me or email to me for more info on K type thermocouple extension wire.
