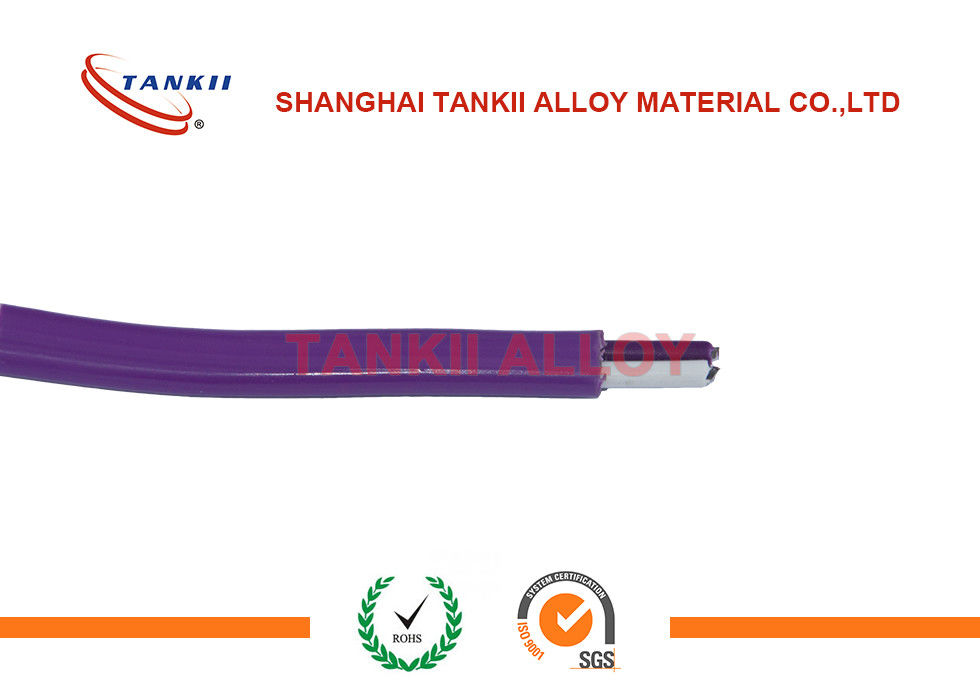

Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield

Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield
Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield

Large Image :  Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: KX/KC
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per week
Contact Now

Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield

Description
Color: Purple And White Insulation Material: PTFE/fep/ Ptfe
Conductor Type: Solid Standard: IEC
Leading Time: 5~7 Days Type: EX Thermocouple Extension Wire
High Light:

high temperature thermocouple cable

,

thermocouple cable k type

Purple and white color EX Thermocouple extension Cable With PTFE Insulation And Shield


Description
Name:Shield Cable
Model No.:Tankii
Size:3*0.5mm2 3*1.0mm2 3*1.5mm2 3*1.0mm2 4*1.0mm2, same as 2 cores
Feature
Ratings:-60ºC~+200ºC, 300/ 500V
Conductor:Tinned Copper
Insulation:PTFE
Sheath:PTFE or fiberglass braid
Shield:Tinned Copper ,Stainless steel wire
Application
For High Temperature equipment.

Detailed Description

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX

The color of Insulation and Sheath
Type Insulation Color Sheath Color
Positive Negative G H
/ S / S
SC/RC RED GREEN BLACK GRAY BLACK YELLOW
KCA RED BLUE BLACK GRAY BLACK YELLOW
KCB RED BLUE BLACK GRAY BLACK YELLOW
KX RED BLACK BLACK GRAY BLACK YELLOW
NC RED GRAY BLACK GRAY BLACK YELLOW
NX RED GRAY BLACK GRAY BLACK YELLOW
EX RED BROWN BLACK GRAY BLACK YELLOW
JX RED PURPLE BLACK GRAY BLACK YELLOW
TX RED WHITE BLACK GRAY BLACK YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign










































Packaging & Delivery

Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment



Purple and white color EX Thermocouple extension Cable With PTFE Insulation



Application:
Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield 0
