Mineral Insulation Type K Thermocouple Wire For Multipoint Furnace Temperature Survey

Product Details

Place of Origin: China mainland

Brand Name: Tankii

Certification: ISO9001

Model Number: JX / EX / KX /TX /RC SC

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per week

Get Best Price
Contact Now
Specifications
Highlight:

high temperature thermocouple cable

,

type k thermocouple wire

Color:
Custom Made Color
Insulation Material:
Armored Insulation
Conductor Type:
Solid/Stranded
Standard:
ANSI
Leading Time:
5~7 Days
Type:
K, J, T, E. N. R.S
Item:
Mineral Insulation Type K Thermocouple Wire For Multipoint Furnace Temperature Survey
Color:
Custom Made Color
Insulation Material:
Armored Insulation
Conductor Type:
Solid/Stranded
Standard:
ANSI
Leading Time:
5~7 Days
Type:
K, J, T, E. N. R.S
Item:
Mineral Insulation Type K Thermocouple Wire For Multipoint Furnace Temperature Survey
Description
Mineral Insulation Type K Thermocouple Wire For Multipoint Furnace Temperature Survey
K Type t Type Thermocouple Wire With Mineral Insulation Used For Multipoint Furnace Temperature Survey
Quick Details

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.


The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX

1. X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
2. C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.

Kay features
  1. Dissimilar conductors within a single cable
  2. PTFE, FEP, PFA or Polyimide insulations
  3. Available as twisted pair, multi-conductor, flat twin, or single shot design
  4. Excellent resistance to chemicals, oils and lubricants
  5. Wide temperature performance
  6. Color coded insulation for ease of identification
Application:

             Steel

  • Multipoint furnace temperature surveys.

  • Quality control temperature certification.


Detailed Description

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX

The color of Insulation and Sheath
Type Insulation Color Sheath Color
Positive Negative G H
/ S / S
SC/RC RED GREEN BLACK GRAY BLACK YELLOW
KCA RED BLUE BLACK GRAY BLACK YELLOW
KCB RED BLUE BLACK GRAY BLACK YELLOW
KX RED BLACK BLACK GRAY BLACK YELLOW
NC RED GRAY BLACK GRAY BLACK YELLOW
NX RED GRAY BLACK GRAY BLACK YELLOW
EX RED BROWN BLACK GRAY BLACK YELLOW
JX RED PURPLE BLACK GRAY BLACK YELLOW
TX RED WHITE BLACK GRAY BLACK YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign

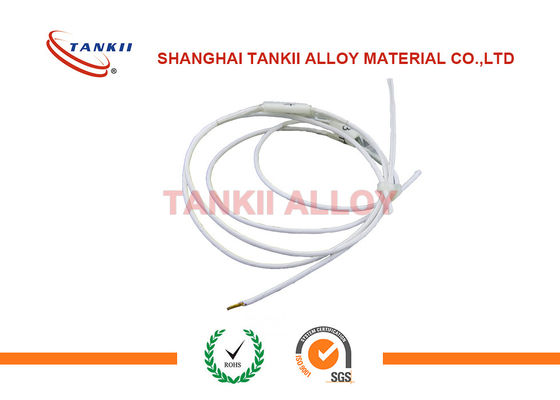

Mineral Insulation Type K Thermocouple Wire For Multipoint Furnace Temperature Survey 0

Packaging & Delivery

Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment





Application:

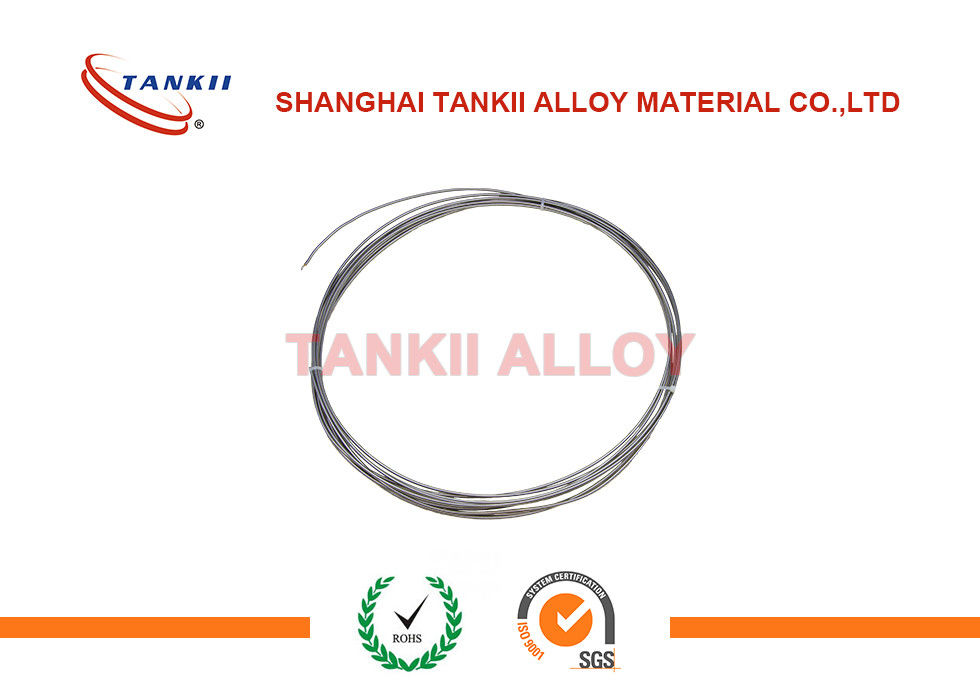

Mineral Insulation Type K Thermocouple Wire For Multipoint Furnace Temperature Survey 1
