Product Details:
|
| Color: | Yellow For K | Standard: | IEC/ANSI |
|---|---|---|---|
| Type: | K | Rated Current: | 10A/15A/16A |
| Material: | Nylon | Item: | Yellow Nylon K Type Thermocouple Miniature Connector 10A / 15A / 16A ISO Certified |
| High Light: | high temperature thermocouple cable,type k thermocouple wire |
||
ISO Certified k Type Thermocouple Miniature Connector With Yellow Color
Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.
Thermocouple wire, thermocouple cable, thermocouple strips are available,
STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS
1. Solid Pin Design
2. High Quality Thermoplastic body
3. Polarized Round pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit
10. Available in all calibrations; Type B, E, J, K, N, R, S, T
Connector Type and Color
| Type | Color | Conductor Material |
| KX | yellow ( ANSI ) or green ( IEC ) | NiCr-NiSi |
| NX | orange | NiCrSi-NiSiMg |
| EX | purple | NiCr-CuNi |
| JX | black | Fe-CuNi |
| TX | blue | Cu-CuNi |
| R/S | green | Cu-CuNi |
| PT100 | white | Cu/Ni |
Pack and delivery:
Packing: carton box
Delivery time : 3-5 days after getting the payment
Delivery: By express

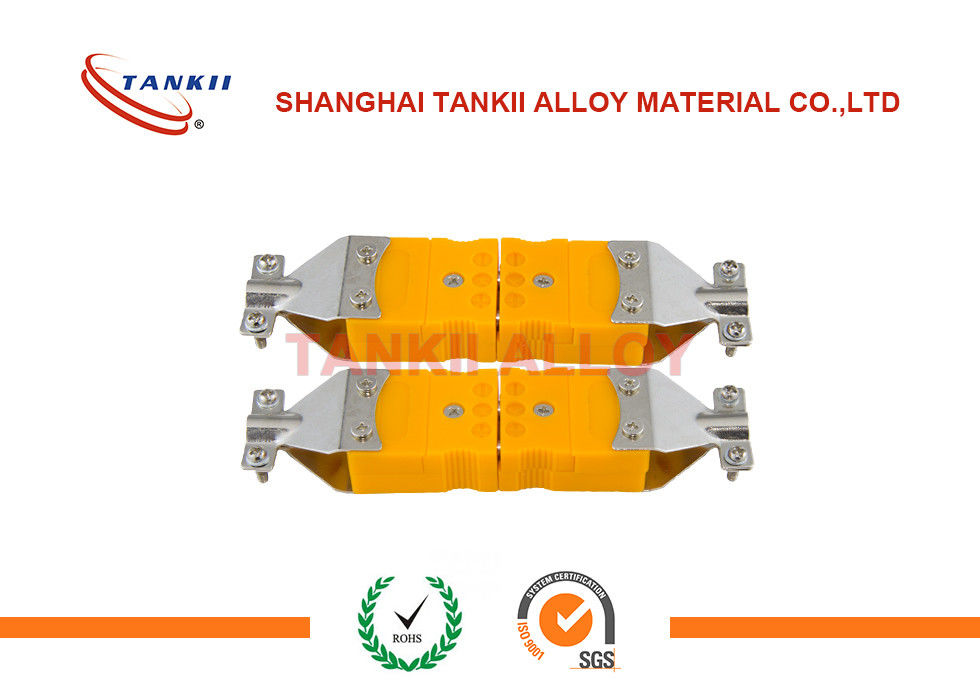

Product Picture
K type connector
About US
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple strips, thermocouple connectors and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers.
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Please feel free to call me or email to me for more information on k type thermocouple connector.
Fax: 86-21-56116916
