Product Details:
|
| Material: | Chromel Constantan | Surface: | Bright |
|---|---|---|---|
| Diameter: | Custom Made | Wire Type: | Solid Wire |
| Wire Class: | IEC 584- Class I | Leading Time: | 5 To 7 Days After Getting The Payment |
| Insualtion Material: | Bare, Without Insualtion | Application: | -200～900 ℃ |
| Item: | Food Industry Temperature Measuring Element Type E Thermocouple Wire 0.3mm | ||
| High Light: | high temperature thermocouple wire,thermocouple lead wire |
||

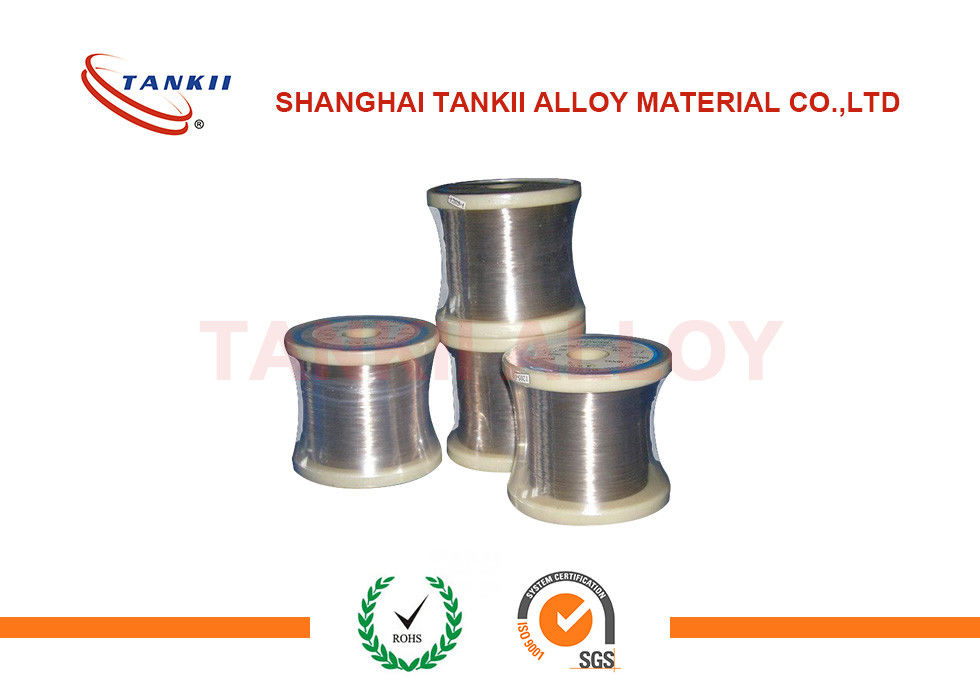

Temperature measuring element E Type Thermocouple wire 0.3mm used for Food and Pharmaceutical industry
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
Tankii's thermocouple products list includes the following:
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
