80 PPI 2500500mm Copper Matel Foam for filter , Purity 99.99%

Name: 80 PPI 2*500*500mm Copper Matel Foam for filter , Purity 99.99%
Brand: TANKII
SKU: Cu Foam
Price: 14.6 USD
Availability: InStock
Rating: 4.9 (179 reviews)

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: Cu Foam

Payment & Shipping Terms

Minimum Order Quantity: 10 square meter

Price: USD+ 14.6-19.8 + m2

Packaging Details: carton+Wooden case

Delivery Time: 7-10days

Payment Terms: T/T, L/C, Western Union,

Supply Ability: 5000000 Squaremeter

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    copper metal sheet, thin copper sheet


PPI:	80	Material:	Copper
Purity:	>99.99%Cu	Surface Density:	>=320g/m2
POROSITY:	>98%	Width:	1000mm MAX
Thickness:	0.3mm MIN	Sample:	Free
Standard:	GB/ASTM	Origin:	Shanghai, China
Application:	NiMh Battey,shield, Filter,etc.	Grade:	AAA

PPI:	80
Material:	Copper
Purity:	>99.99%Cu
Surface Density:	>=320g/m2
POROSITY:	>98%
Width:	1000mm MAX
Thickness:	0.3mm MIN
Sample:	Free
Standard:	GB/ASTM
Origin:	Shanghai, China
Application:	NiMh Battey,shield, Filter,etc.
Grade:	AAA

Description

80 PPI 2*500*500mm Copper Matel Foam for filter , Purity 99.99%

80 PPI 2*500*500mm Copper Matel Foam for filter , Purity 99.99%

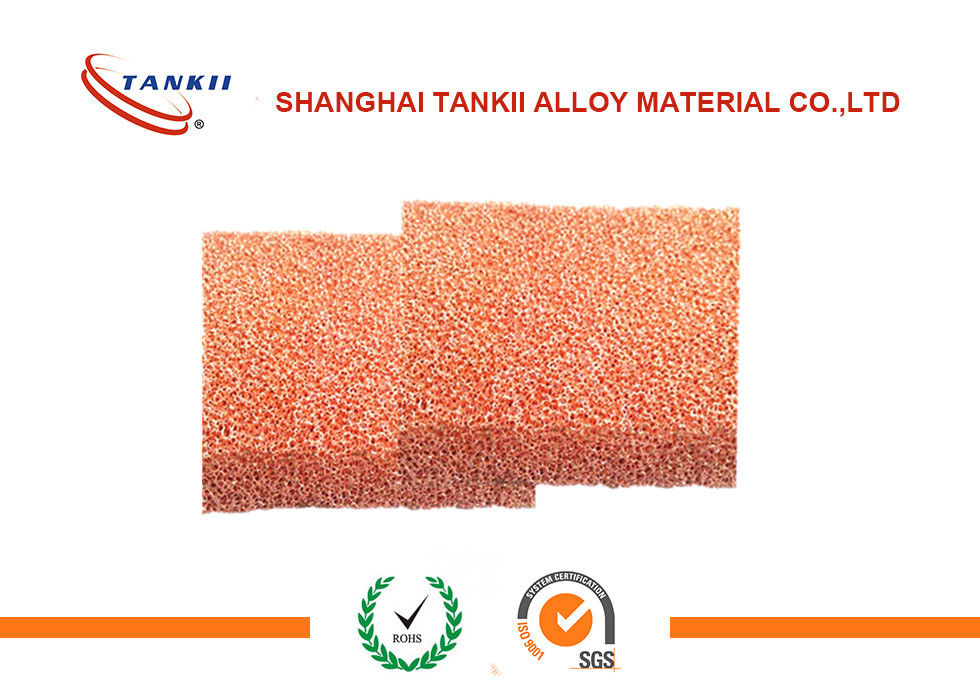

Copper Foam is low density permeable material with numerous applications. The defining characteristic of these foams is a very high porosity, typically >98% of the volume consisting of void spaces. Metallic foams have found a wide variety of applications in heat exchangers, energy absorption, flow diffusion and lightweight optics. Ceramic foam is often used for thermal insulation, acoustic insulation, adsorption of environmental pollutants, filtration of molten metal alloys, and as substrate for catalysts requiring large internal surface area. Copper Foam is generally immediately available in most volumes. Additional technical, research and safety (MSDS) information is available.

PERFORMANCE INDEX

ITEM	CONTINUOUS COPPER FOAM	THICK NICKEL FOAM
THICKNESS	(0.3~2.5)±0.05mm	(2.6~80)±0.05mm
PPI	90~120	10~80
SURFACE DENSITY	(250~1800)±30g/M2	(400~8000)±30g/M2
TENSILE STRENGTH	(VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2
ELONGATION	(VERTICAL)≥5% (HORIZONTAL)≥12%
POROSITY	≥98%	≥98%
WIDTH	(50~1000)±0.5mm	(50~1000)±0.5mm
SPLICE FREQUENCY	200m≤4 junction	largest length 1000mm
RATIO RESISTANCE	≤5X10-6	≤5X10-6

80 PPI 2*500*500mm Copper Matel Foam for filter , Purity 99.99% 0

80 PPI 2*500*500mm Copper Matel Foam for filter , Purity 99.99% 3
