Wear-Resistant C51000, C51080, C51100, C51180, C51900, C51980, Brass Belts/Strip

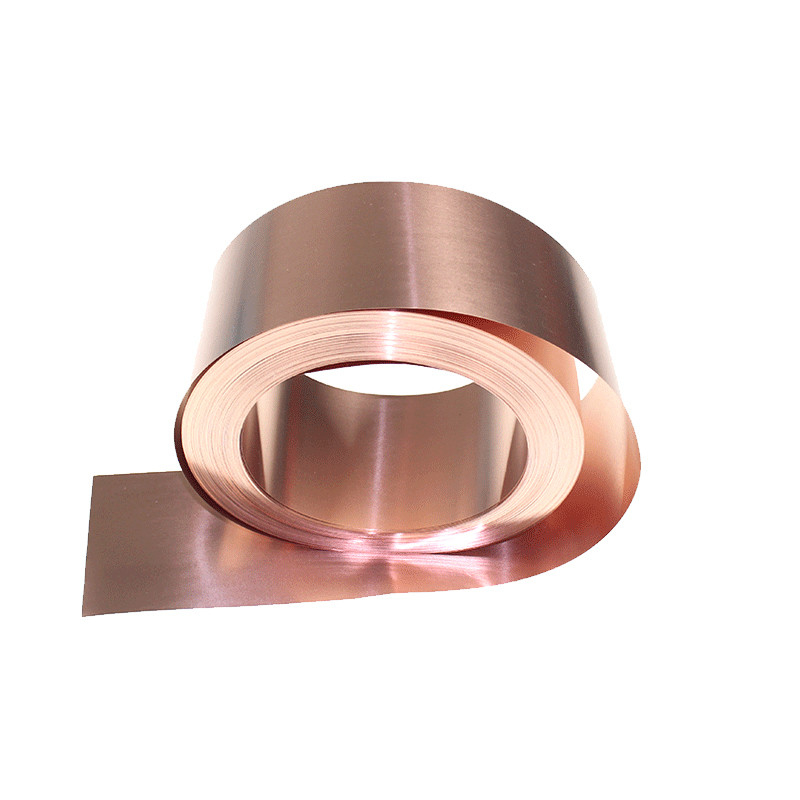

Name: Wear-Resistant C51000, C51080, C51100, C51180, C51900, C51980, Brass Belts/Strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: C51100
Price: 18.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: C51100

Payment & Shipping Terms

Minimum Order Quantity: 500 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            C51080 Brass Belts, C51100 Brass Belts, C51000 Brass Belts


Material:	Copper Tin Alloy	Surface:	Bright , Surface
Thickness:	0.05mm---20.00mm	Width:	1200 Mm Max.
Density:	8.8 G/cm3	Sample:	Accepted Small Order
Conductivity:	21% IACS

Material:	Copper Tin Alloy
Surface:	Bright , Surface
Thickness:	0.05mm---20.00mm
Width:	1200 Mm Max.
Density:	8.8 G/cm3
Sample:	Accepted Small Order
Conductivity:	21% IACS

Description

Wear-Resistant C51000, C51080, C51100, C51180, C51900, C51980, Brass Belts/Strip

CHEMICAL COMPOSITION

	Sn%	P%	Cu%
Nominal Composition			Bal.
Min	3.5	0.03
Max	4.9	0.35

PHYSICAL PROPERTIES

Density g/cm3	8.8
Conductivity at 20°C %IACS	21
Elastic Modulus GPa	120
Poisson's ratio	0.33
Thermal expansion coefficient 10-6/ K	17.8

MECHANICAL PROPERTIES

State	Yield strength	Tensile strength	Elongation	Hardness
	Mpa	MPa	A50%	HV
R380	≥290	380-485	≥20	110-160
R460	≥440	460-565	≥10	150-190
R495	≥485	496-600	≥4	160-200
R580	≥560	580-585	≥2	180-220
R625	≥605	625-725	≥1	200-240

Bending performance

Bending thickness: ≤0.5 mm, bending width: 10 mm

State	90° R/T		180° R/T
	GW	BW	GW	BW
R380	0	0	0	0
R460	0	0	0	1
R495	0	0.5	0	1.5
R580	0.5	1.5	1	2
R625	0.5	2.0	1	3

Chemical Compositiom
Alloy No.			Chemical Compositiom(wt.%)
Alloy No.			Cu+Ag	Sn	P	Pb(Max.)	Fe(Max.)	Zn(Max.)
1	JIS	C5111	Remainder	3.5-4.5	0.03-0.35	0.05	0.10	0.30
	ASTM	C51100	Remainder	3.5-4.9	0.03-0.35	0.05	0.10	0.30
	GB	QSn4-0.3	Remainder	3.5-4.9	0.03-0.35	0.05	0.10	0.30
	EN	CuSn4	Remainder	3.5-4.5	0.01-0.40	0.02	0.10	0.20
2	JIS	C5102	Remainder	4.2-5.5	0.03-0.35	0.05	0.10	0.30
	ASTM	C51000	Remainder	4.2-5.8	0.03-0.35	0.05	0.10	0.30
	GB	QSn5-0.2	Remainder	4.2-5.8	0.03-0.05	0.05	0.10	0.30
	EN	CuSn5	Remainder
3	JIS	C5191	Remainder	5.5-7.0	0.03-0.35	0.05	0.10	0.30
	ASTM	C51900	Remainder	5.0-7.0	0.03-0.05	0.05	0.10	0.30
	GB	QSn6.5-0.1	Remainder	6.0-7.0	0.10-0.25	0.02	0.05	0.30
	EN	CuSn6	Remainder	5.5-7.0	0.01-0.40	0.02	0.10	0.20
4	JIS	C5212	Remainder	7.0-9.0	0.03-0.35	0.05	0.10	0.30
	ASTM	C52100	Remainder	7.0-9.0	0.03-0.35	0.05	0.10	0.30
	GB	QSn8-0.3	Remainder	7.0-9.0	0.03-0.35	0.05	0.10	0.30
	EN	CuSn6	Remainder	7.5-8.5	0.01-0.40	0.02	0.10	0.20

Alloy System	designation	UNS	EN	JIS	GB (China)
Cu	TK11000	C11000	Cu-ETP	C1100	T2
CuCr/Zr	TK15100	C15100	CuZr0.1	C1510	TZr0.1
	TK18160	C18160	CuCr0.5Zr	—
	TK18150	C18150	CuCr1Zr	—	TCr1-0.15
CuCrSiTi	TK18070	C18070	CuCrSiTi	—	TCr0.3-0.2- 0.05
CuNiSnCrTi	TK18090	—	—	—
CuNiP	TK19000	C19000	CuNi1P	—
CuTi	TK19920	C19920	—	—	—
CuFe	TK19210	C19210	CuFe0.1P	C1921	TFe0.1
CuFe	TK19400	C19400	CuFe2P	C1940	TFe2.5
CuNiSi	TK19005	C19005	—	—	—
	TK19010	C19010	CuNiSi	—	—
	TK70260	C70260	CuNi2Si	C7026	BSi2-0.45
	TK70250	C70250	CuNi3SiMg	C7025	BSi3.2-0.7
	TK70250HS	C70250	CuNi4SiMg	C7025	—
CuNiCoSi	TK70318	C70318	CuNi3CoSi	—	—
Special Brass	TK42300	C42300	CuZn10Sn1NiSi	—	—
Special Brass	TK42500	C42500	CuSn3Zn9	—	HSn88-2
CuSn / Bronze	TK14415	C14415	CuSn0.15	—	TSn0.12
	TK51000	C51000	CuSn5	C5102	QSn5-0.2
	TK51100*	C51100	CuSn4	C5111	QSn4-0.3
	TK51900*	C51900	CuSn6	C5191	QSn6-0.2
	TK52100*	C52100	CuSn8	C5210	QSn8-0.3

Phosphor bronze is a copper alloy that contains tin and phosphorus. It is known for its excellent mechanical properties, corrosion resistance, and good wear resistance. Here are the key features and characteristics of phosphor bronze:

Key Properties

Composition:
- Copper (Cu): Typically around 90%
- Tin (Sn): Usually 5-10%
- Phosphorus (P): Typically 0.01-0.5%
Mechanical Properties:
- High tensile strength and good ductility.
- Excellent fatigue resistance.
Corrosion Resistance:
- Good resistance to corrosion, particularly in marine environments and acidic conditions.
Wear Resistance:
- Excellent wear resistance, making it suitable for applications involving friction.

Common Applications

Electrical Components: Used in connectors, switches, and other electrical applications due to its good conductivity.
Bearings and Bushings: Widely used in manufacturing bearings and bushings where low friction is required.
Musical Instruments: Employed in manufacturing certain musical instruments, such as brass instruments and piano strings.
Marine Hardware: Suitable for marine applications due to its corrosion resistance.

Fabrication

Phosphor bronze can be easily fabricated using standard methods such as:

Machining: Suitable for precision machining and forming.
Welding: Can be welded using appropriate techniques.
Casting: Often used in casting processes to produce complex shapes.

Wear-Resistant C51000, C51080, C51100, C51180, C51900, C51980, Brass Belts/Strip 0
