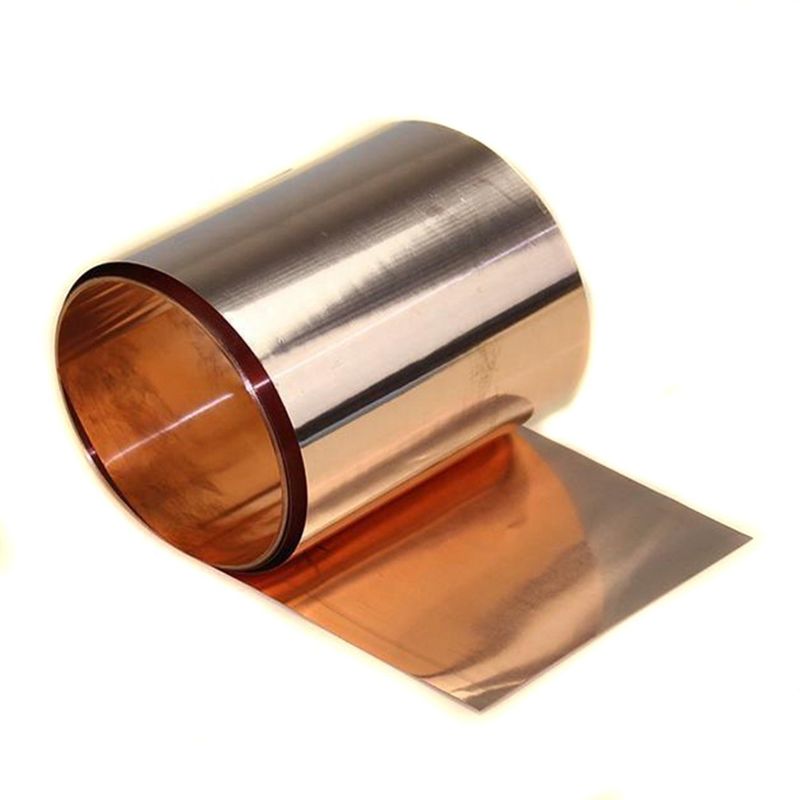

Phosphor Bronze Alloy Strip Alloy Sheet C5191 C52400 C51000 C52100 Copper Strip

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: C51000

Payment & Shipping Terms

Minimum Order Quantity: 500 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:
Material:
Copper Tin Alloy
Surface:
Bright
Thickness:
0.05mm-20.0mm
Width:
1200mm
Density:
8.85 G/cm3
Conductivity:
26 % IACS
Thermal Expansion Coefficient:
11.3 10-6/ K
Material:
Copper Tin Alloy
Surface:
Bright
Thickness:
0.05mm-20.0mm
Width:
1200mm
Density:
8.85 G/cm3
Conductivity:
26 % IACS
Thermal Expansion Coefficient:
11.3 10-6/ K
Description
Phosphor Bronze Alloy Strip Alloy Sheet C5191 C52400 C51000 C52100 Copper Strip

CHEMICAL COMPOSITION

  Sn% P% Cu%
Nominal Composition     Bal.
Min 4.2 0.03
Max 5.8 0.35



PHYSICAL PROPERTIES

Density g/cm3 8.85
Conductivity at 20°C %IACS 18
Elastic Modulus GPa 120
Poisson's ratio 0.33
Thermal expansion coefficient 10-6/ K 17.8



MECHANICAL PROPERTIES

State Yield strength Tensile strength Elongation Hardness
  Mpa MPa A50% HV
R400 ≥325 400-505 ≥20 125-170
R470 ≥420 470-545 ≥10 145-185
R525 ≥510 525-625 9 170-210
R605 ≥585 605-710 ≥2 180-220
R655 ≥636 655-760 ≥1 210-250
R690 ≥675 690-785 ≥1 220-270



Bending performance

Bending thickness: ≤0.5 mm, bending width: 10 mm

State 90° R/T 180° R/T
  GW BW GW BW
R400 0 0.5 0 1.5
R470 0 1 0.5 1
R525 0 1.5 1 2
R605 1 2 1.5 3
R655 1 2.5 2 4
R690 - - -



Alloy

System

designation



UNS



EN



JIS

GB

(China)

Cu TK11000 C11000 Cu-ETP C1100 T2





CuCr/Zr

TK15100 C15100 CuZr0.1 C1510 TZr0.1
TK18160 C18160 CuCr0.5Zr
TK18150 C18150 CuCr1Zr TCr1-0.15
CuCrSiTi TK18070 C18070 CuCrSiTi



TCr0.3-0.2-

0.05

CuNiSnCrTi TK18090
CuNiP TK19000 C19000 CuNi1P
CuTi TK19920 C19920



CuFe

TK19210 C19210 CuFe0.1P C1921 TFe0.1
TK19400 C19400 CuFe2P C1940 TFe2.5









CuNiSi

TK19005 C19005
TK19010 C19010 CuNiSi
TK70260 C70260 CuNi2Si C7026 BSi2-0.45
TK70250 C70250 CuNi3SiMg C7025 BSi3.2-0.7
TK70250HS C70250 CuNi4SiMg C7025
CuNiCoSi TK70318 C70318 CuNi3CoSi

Special

Brass

TK42300 C42300 CuZn10Sn1NiSi
TK42500 C42500 CuSn3Zn9 HSn88-2





CuSn /

Bronze



TK14415 C14415 CuSn0.15 TSn0.12
TK51000 C51000 CuSn5 C5102 QSn5-0.2
TK51100* C51100 CuSn4 C5111 QSn4-0.3
TK51900* C51900 CuSn6 C5191 QSn6-0.2
TK52100* C52100 CuSn8 C5210 QSn8-0.3



  • Mechanical Properties:

    • Good tensile strength and ductility.
    • Excellent fatigue resistance, making it suitable for dynamic applications.
  • Corrosion Resistance:

    • Offers good resistance to corrosion, particularly in marine environments.
  • Wear Resistance:

    • High wear resistance, ideal for applications involving friction.

Common Applications

  • Bearing Materials: Frequently used in bearings and bushings due to its low friction properties.

  • Gears and Pulleys: Suitable for manufacturing gears, pulleys, and other components that experience wear.

  • Marine Applications: Utilized in marine hardware and fittings due to its corrosion resistance.

Fabrication

C51000 can be processed through various methods, including casting, forging, and machining. It can be easily formed and welded, making it adaptable for different manufacturing processes.
