Chinese Manufacturer Brass Copper Sheet / Plate C42300, C42500 copper alloy plate sheet

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: 42300/42500

Payment & Shipping Terms

Minimum Order Quantity: 1000 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:
Material:
CuZn10Sn1NiSi
Thickness:
0.05mm-20.0mm
Width:
1200mm
Surace:
Bright
Density:
8.9 G/cm3
Standard:
GB
Conductivity:
32% IACS
Material:
CuZn10Sn1NiSi
Thickness:
0.05mm-20.0mm
Width:
1200mm
Surace:
Bright
Density:
8.9 G/cm3
Standard:
GB
Conductivity:
32% IACS
Description
Chinese Manufacturer Brass Copper Sheet / Plate C42300, C42500 copper alloy plate sheet

CHEMICAL COMPOSITION

  Ni% Si% Sn% Cu% Zn%
Nominal Composition         Bal.
Min 0.5 0.1 0.5 87
Max 1.5 0.3 1.5 91



PHYSICAL PROPERTIES

Density g/cm3 8.88
Conductivity at 20°C %IACS 32
Elastic Modulus GPa 120
Poisson's ratio 0.33
Thermal expansion coefficient 10-6/ K 16.7



MECHANICAL PROPERTIES

State Yield strength Tensile strength Elongation Hardness
  Mpa MPa A50% HV
R440 ≥420 440-540 ≥8 140-170
R520 ≥500 520-620 ≥6 150-190
R560 ≥550 560-660 3 170-210
R620 ≥590 620-720 ≥1 190-220



Bending performance

Bending thickness: ≤0.5 mm, bending width: 10 mm

State 90° R/T 180° R/T
  GW BW GW BW
R440 0 0 0 1
R520 0 0.5 0.5 1.5
R560 0.5 1.5 1.5 2.5
R620 1 2 2 5



Alloy

System

designation



UNS



EN



JIS

GB

(China)

Cu TK11000 C11000 Cu-ETP C1100 T2





CuCr/Zr

TK15100 C15100 CuZr0.1 C1510 TZr0.1
TK18160 C18160 CuCr0.5Zr
TK18150 C18150 CuCr1Zr TCr1-0.15
CuCrSiTi TK18070 C18070 CuCrSiTi



TCr0.3-0.2-

0.05

CuNiSnCrTi TK18090
CuNiP TK19000 C19000 CuNi1P
CuTi TK19920 C19920



CuFe

TK19210 C19210 CuFe0.1P C1921 TFe0.1
TK19400 C19400 CuFe2P C1940 TFe2.5









CuNiSi

TK19005 C19005
TK19010 C19010 CuNiSi
TK70260 C70260 CuNi2Si C7026 BSi2-0.45
TK70250 C70250 CuNi3SiMg C7025 BSi3.2-0.7
TK70250HS C70250 CuNi4SiMg C7025
CuNiCoSi TK70318 C70318 CuNi3CoSi

Special

Brass

TK42300 C42300 CuZn10Sn1NiSi
TK42500 C42500 CuSn3Zn9 HSn88-2





CuSn /

Bronze



TK14415 C14415 CuSn0.15 TSn0.12
TK51000 C51000 CuSn5 C5102 QSn5-0.2
TK51100* C51100 CuSn4 C5111 QSn4-0.3
TK51900* C51900 CuSn6 C5191 QSn6-0.2
TK52100* C52100 CuSn8 C5210 QSn8-0.3
  • Machinability:

    • Excellent machinability, making it suitable for precision machining applications such as screw machining.
  • Corrosion Resistance:

    • Moderate corrosion resistance, effective in various environments, particularly in freshwater and marine conditions.
  • Mechanical Properties:

    • Good strength and ductility, allowing for easy forming and shaping.

Common Applications

  • Precision Parts: Frequently used for manufacturing precision machined components like fittings and valves.

  • Automotive Components: Utilized in various automotive applications due to its durability and machinability.

  • Electrical Applications: Suitable for electrical connectors and terminals where conductivity and ease of machining are required.

Fabrication

C42300 plates can be processed through standard fabrication techniques such as cutting, bending, and welding. They are available in multiple thicknesses and dimensions to meet specific project requirements.

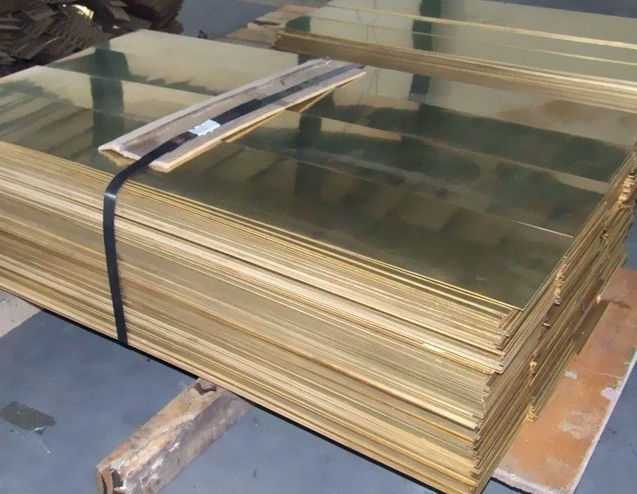

Chinese Manufacturer Brass Copper Sheet / Plate C42300, C42500 copper alloy  plate sheet 0
