Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: J / K / T / E / N / B / R / S type thermocouple wire
Payment & Shipping Terms
Minimum Order Quantity: 10 kg per size for thermocouple wire
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 5000Ton per year
Material: |
Chromel Alumel |
Surface: |
Bright / Oxidized |
Diameter: |
0.1mm-8.0mm |
Grade: |
I/II/III |
Type: |
K /kx |
Wire Dia: |
0.04 Mm 0.05mm 0.06mm 0.07mm |
MOQ: |
5kg Per Size |
Insulation: |
Available |
Leading Time: |
10-15 Days |
Item: |
Thermocouple Wire Chromel Alumel Iron Constantan Bare Wire 0.5mm 0.8mm 20AWG |
Material: |
Chromel Alumel |
Surface: |
Bright / Oxidized |
Diameter: |
0.1mm-8.0mm |
Grade: |
I/II/III |
Type: |
K /kx |
Wire Dia: |
0.04 Mm 0.05mm 0.06mm 0.07mm |
MOQ: |
5kg Per Size |
Insulation: |
Available |
Leading Time: |
10-15 Days |
Item: |
Thermocouple Wire Chromel Alumel Iron Constantan Bare Wire 0.5mm 0.8mm 20AWG |

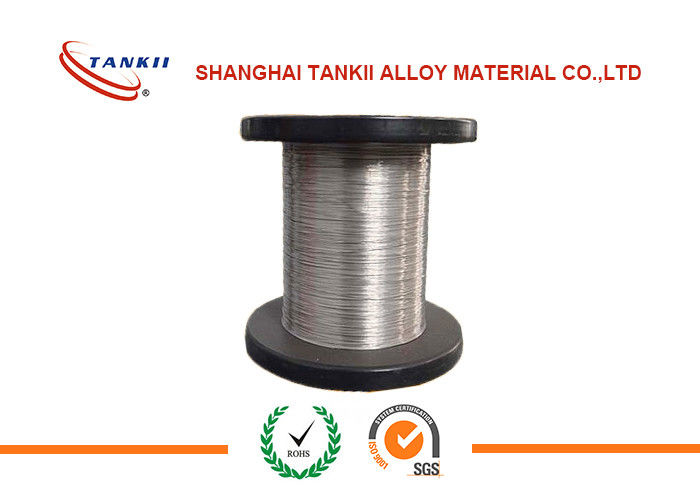

Thermocouple Wire Chromel Alumel Iron Constantan Bare Wire 0.5mm 0.8mm 20AWG
Quick Description
What is thermocouple wire?
Thermocouple wire allows temperatures to be measured electronically.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Thermocouple rods, enamelled wire, ribboon wire can be supplied according to the request of the customers.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
