Product Details:
|
| Material: | Copper | Thickness: | 0.3-80mm |
|---|---|---|---|
| PPI: | 50-130 | Surface Density: | 250-2000g/m2 |
| Porosity: | >98% | Sample: | Free |
| Standard: | GB | Purity: | 99.9%min |
| High Light: | copper metal sheet,thin copper sheet |
||

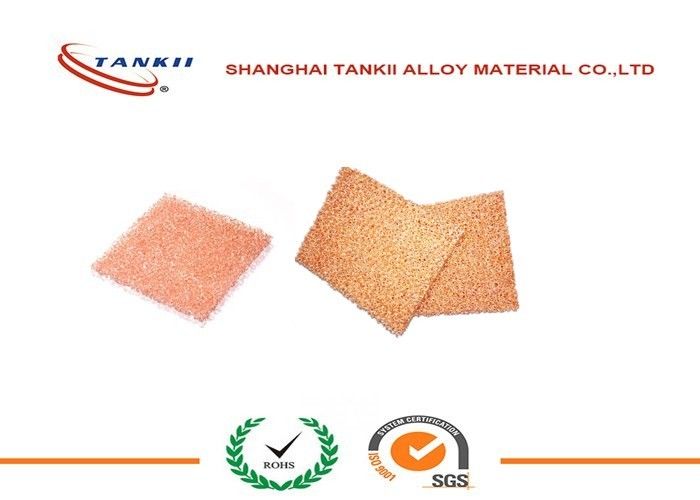

high quality porous metal copper foam with copper plate for heat dissipation, lithium ion battery, shield and filter
Basic Specification:
| ITEM | Copper Foam |
| THICKNESS | (0.3mm~45mm) ±0.5mm |
| PPI | 5~120 |
| HOLE SIZE | 0.1mm~10mm |
| SURFACE DENSITY | (280~9800)±30 g/m2 |
| BULK DENSITY | 0.1-0.8 g/cm3 |
| TENSILE STRENGTH | (VERTICAL)≥130n/cm2 (HORIZONTAL)≥100n/cm2 |
| ELONGATION | (VERTICAL)≥5% (HORIZONTAL)≥12% |
| POROSITY | 50-98% |
| WIDTH | (0~960) ±0.5mm |
| RATIO RESISTANCE | ≤5X10-6 |
| We accept customize as your requirements. | |
Feature:
1.Excellent mechanical property and processability
2.Extraordinary electricity and heat conductivity
3.Massive three- dimensional network structure
4.Excellent base & corrosion resistant alibility
5.Magnificent electromagnetic shielding ability
