Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam

Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam
Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam

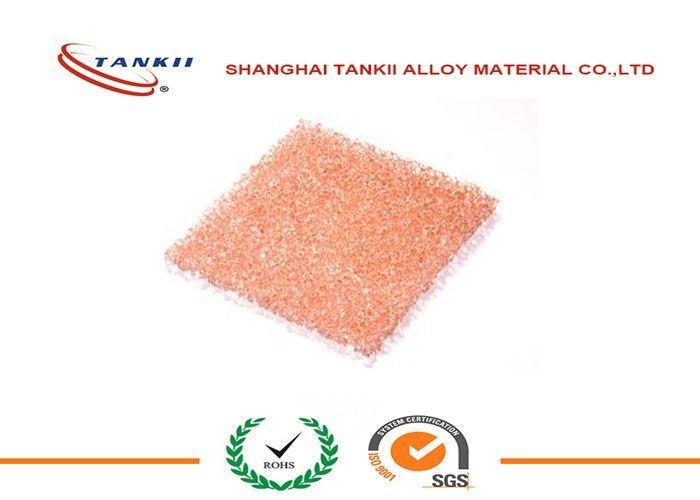

Large Image :  Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam

Product Details:
Place of Origin: Shanghai
Brand Name: TANKII
Certification: SGS, Rosh
Model Number: Foam Copper
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square meters
Price: USD+12.5-19.5+ per m2
Packaging Details: 1. individual polybag + carton 2. PVC handbag + carton 3. Woven handbag + carton 4. Color Box / Display box + carton
Delivery Time: 7-10days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000000+m2+per month

Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam

Description
Material: Copper Width: 960mm(MAX)
Thickness: 0.3-80mm PPI: 50-130
Porosity: >98% Sample: Free
Standard: GB Color: Silver Grey
High Light:

copper metal sheet

,

thin copper sheet

high quality porous metal copper foam with copper plate for heat dissipation

Basic Specification:



ITEM Copper Foam
THICKNESS (0.3mm~45mm) ±0.5mm
PPI 5~120
HOLE SIZE 0.1mm~10mm
SURFACE DENSITY (280~9800)±30 g/m2
BULK DENSITY 0.1-0.8 g/cm3
TENSILE STRENGTH (VERTICAL)≥130n/cm2 (HORIZONTAL)≥100n/cm2
ELONGATION (VERTICAL)≥5% (HORIZONTAL)≥12%
POROSITY 50-98%
WIDTH (0~960) ±0.5mm
RATIO RESISTANCE ≤5X10-6
We accept customize as your requirements.





Feature:

1.Excellent mechanical property and processability

2.Extraordinary electricity and heat conductivity

3.Massive three- dimensional network structure

4.Excellent base & corrosion resistant alibility

5.Magnificent electromagnetic shielding ability







Shield / Filter 0.3mm Ni Fe Foam Pure Copper Sheet Continuous Porous Cu Foam 0
