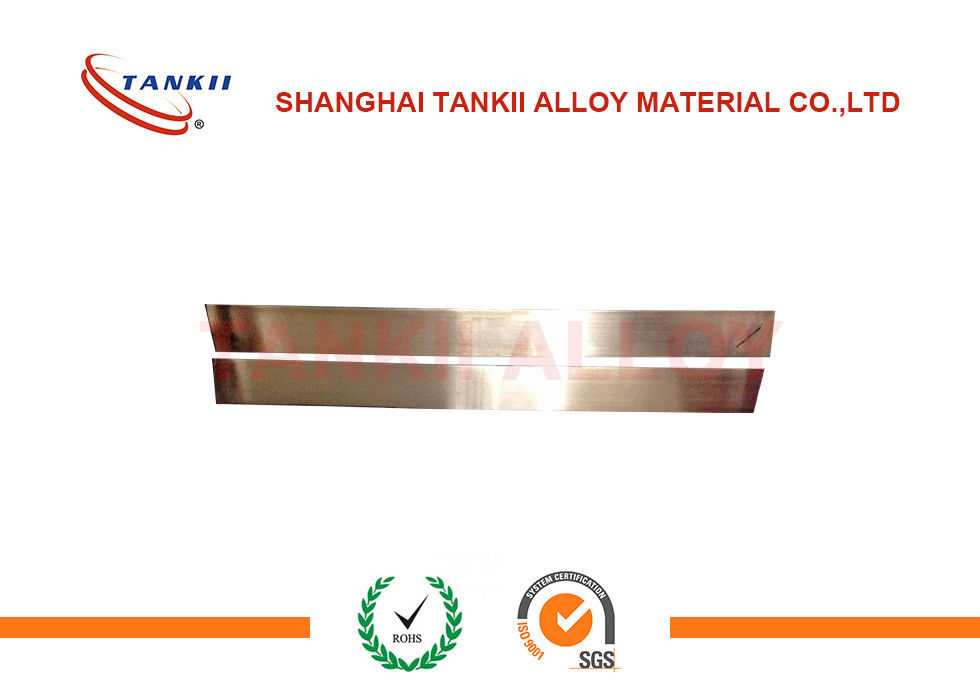

Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip

Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip
Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip

Large Image :  Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip

Product Details:
Place of Origin: shanghai
Brand Name: tankii
Certification: ISO
Model Number: 6j13
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD + 16.7 + KG
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 + Tons + Month
Contact Now

Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip

Description
Use: Shunt Resistivity: 0.44
Density: 8.4 Main Ingredients: MnCu
High Light:

copper metal sheet

,

thin copper sheet

Product Description
Manganin Strip/Tape/Roll 0.5mm*85mm
Product Description
Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.
Chemical Content, %
Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
2~5 11~13 <0.5 micro Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-100ºC
Resisivity at 20ºC 0.44±0.04ohm mm2/m
Density 8.4 g/cm3
Thermal Conductivity 40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC 0~40α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft 390-535
Elongation 6~15%
EMF vs Cu, μV/ºC (0~100ºC) 2(max)
Micrographic Structure austenite
Magnetic Property non
Hardness 200-260HB
Micrographic Structure Ferrite
Magnetic Property Magnetic



Resistance Alloy- Shunt Manganin Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire &Ribbon diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Also enameled condition is available

Copper And Manganin Bimetallic Pure Copper Sheet 0.44 Resistivity Shunt Manganin Strip 0
