High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor

High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor
High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor

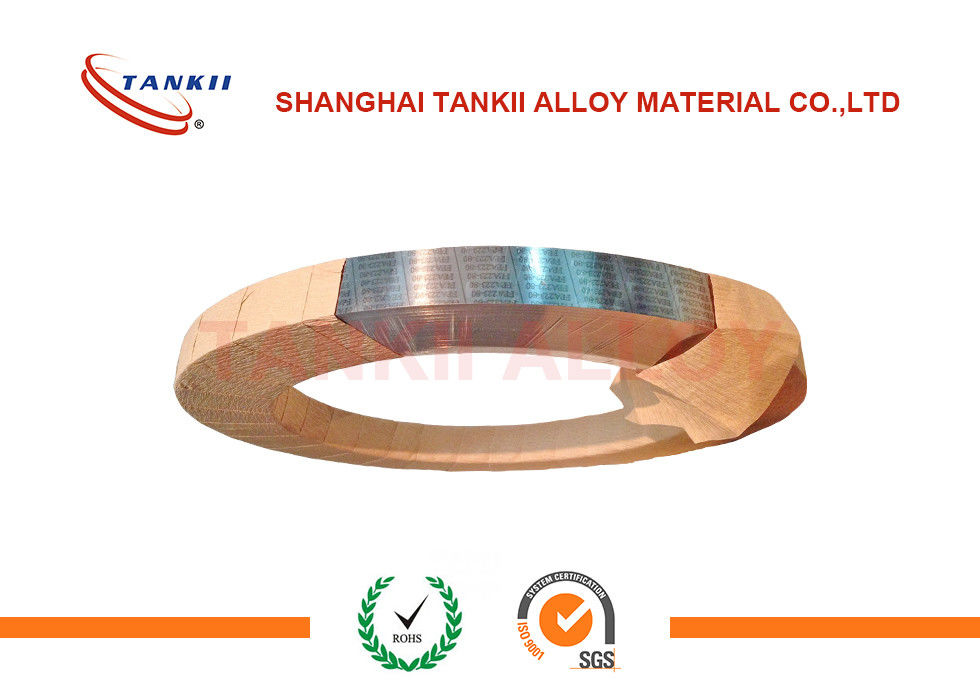

Large Image :  High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor

Product Details:
Place of Origin: shanghai
Brand Name: TANKII
Certification: ISO
Model Number: TB1577A
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: USD + 30.23 + KG
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 + Tons + month

High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor

Description
Use: Temperature Control Components Density: 8.1
Resistivity: 0.8 Bending: 15.0
Temperature Curvature: 28.5%±5% Shop Sign: TB1577A
High Light:

soft magnetic alloy

,

kovar alloy

TB1577A Thermal bimetal strip

Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.

The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.
Main features: high heat sensitive properties, good low temperature stability, easy to welding.

shop sign                           TB1577A

Chemical composition

shop sign Ni Cr Fe Co Cu Zn Mn Si C S P
Ni36 35.0~37.0 - allowance - - - ≤0.6 ≤0.3 0.05 0.02 0.02
Ni20Mn6 19.0~21.0 - allowance - - - 5.5~6.5 0.15~0.30 0.05 0.02 0.02



performance



Than bending K(20~135ºC)                                   15.0±5%

Temperature curvatureF/(greenhouse ~ 130 ºC)   28.5%±5%

resistivity(μΩ·m)                                                      0.8±5%

Density (g/cm3)                                                       8.1

production process
Cold rolled →go oil → pickling → annealing cold-rolled →oil → pickling → annealing cold-rolled → conform to the requirements of the use of thermal bimetal strip

Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity

High Heat Sensitive Property Bimetallic Strip Metals / Bimetal Sheet For Temperature Sensor 0
