Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: ASTM TM2
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: nigotiable
Packaging Details: plastic film winding, put into carton,wooden case
Delivery Time: 9-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150+ton+per month
Model No.: |
ASTM TM2 |
Surface Treatment: |
Galvanized |
Application: |
Boiler Plate |
Density: |
7.7g/cm³ |
Allows The Use Of Temperature: |
-70~260 |
Linear Temperature: |
-20~200 |
Modulus Of Elasticity: |
1.38 |
Model No.: |
ASTM TM2 |
Surface Treatment: |
Galvanized |
Application: |
Boiler Plate |
Density: |
7.7g/cm³ |
Allows The Use Of Temperature: |
-70~260 |
Linear Temperature: |
-20~200 |
Modulus Of Elasticity: |
1.38 |

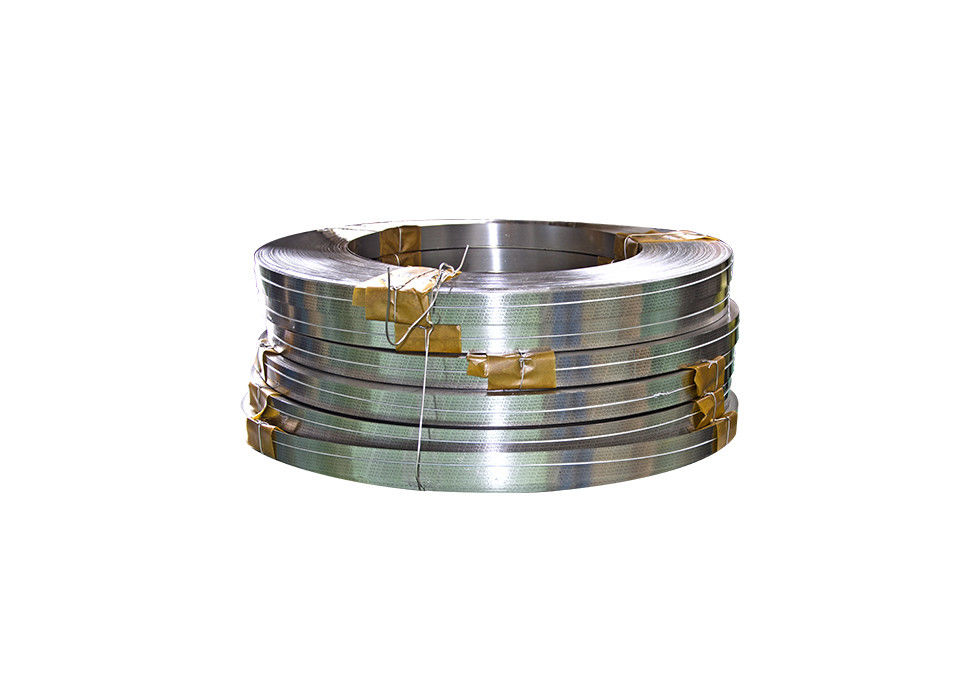

ASTM TM2 Thermostatic Bimetal strip
Bimetallic TB208/110 holds very high thermal sensitivity and higher resistivity,but the modulus of elasticity and allowable stress is lower,it can improve the sensitivity of the instrument,decrease the size and increase the force.
Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.
The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.
Composition
Grade | ASTM TM2 |
High expansion layer | Mn75Ni15Cu10 |
Low expansion layer | Ni36 |
Chemical composition(%)
Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
Ni36 | ≤0.05 | ≤0.3 | ≤0.6 | ≤0.02 | ≤0.02 | 35~37 | - | - | Bal. |
Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
Mn75Ni15Cu10 | ≤0.05 | ≤0.5 | Bal. | ≤0.02 | ≤0.02 | 14~16 | - | 9~11 | ≤0.8 |
Typical Physical properties
Density (g/cm3) | 7.7 |
Electrical resistivity at 20ºC(ohm mm2/m) | 1.13 ±5% |
Thermal conductivity, λ/ W/(m*ºC) | 6 |
Elastic Modulus, E/ Gpa | 113~142 |
Bending K / 10-6 ºC-1(20~135ºC) | 20.8 |
Temperature bending rate F/(20~130ºC)10-6ºC-1 | 39.0%±5% |
Allowable temperature (ºC) | -70~ 200 |
Linear temperature (ºC) | -20~ 150 |
Application: The material is mainly used as Non magnetic non matching ceramic sealing material in Gyro and other electric vacuum devices.
