High Precision Stainless Steel Welded Pipe Shadow Ring Coil Capillary Copper Ptir 10 Alloy Capillary Tube

Name: High Precision Stainless Steel Welded Pipe Shadow Ring Coil Capillary Copper Ptir 10 Alloy Capillary Tube
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: PtIr10
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO 9001

Model Number: PtIr10

Payment & Shipping Terms

Minimum Order Quantity: 200 Pcs

Price: negotiable

Packaging Details: Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 kg per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            High Precision Stainless Steel Welded Pipe, 10 Alloy Stainless Steel Welded Pipe


Model NO.:	PT90IR10	Size:	OD0.3*WT0.015mm Min.
Surface:	Bright	Name:	Platinum Iridium Tube
Shape:	PtIr Pipe/wire	Trademark:	TANKII
Origin:	China	HS Code:	7505.22
Production Capacity:	1 Tons/Year

Model NO.:	PT90IR10
Size:	OD0.3*WT0.015mm Min.
Surface:	Bright
Name:	Platinum Iridium Tube
Shape:	PtIr Pipe/wire
Trademark:	TANKII
Origin:	China
HS Code:	7505.22
Production Capacity:	1 Tons/Year

Description

High Precision Stainless Steel Welded Pipe Shadow Ring Coil Capillary Copper Ptir 10 Alloy Capillary Tube

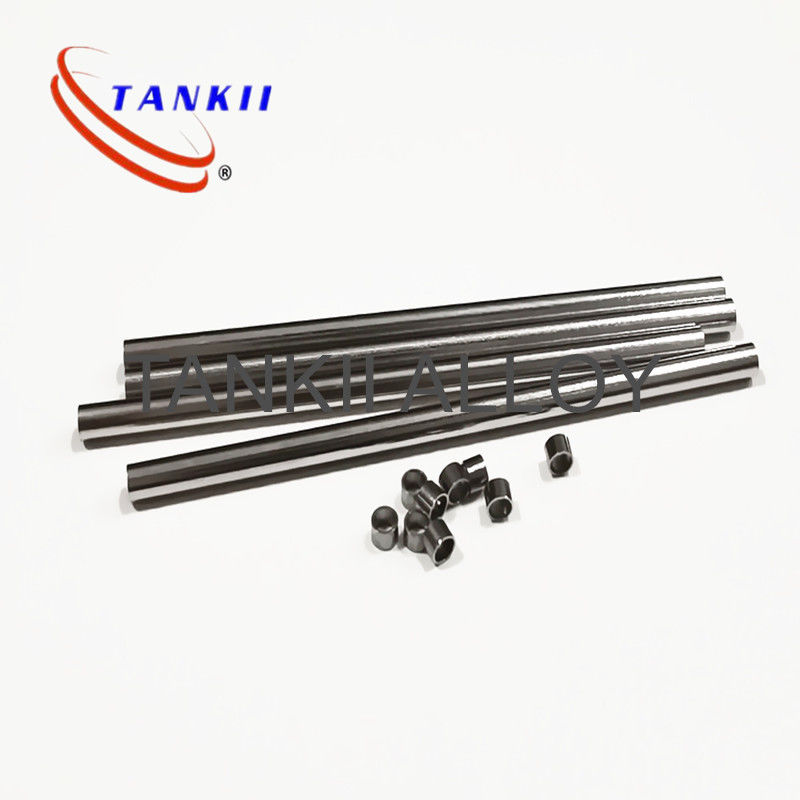

PT90IR10 Pure Platinum Iridium tube shadow ring Ultra Fine Capillary Pipe Alloy Tubes

Platinum Iridium alloy is a high -temperature metal. it consists of two metals: platinum and Iridium, which has excellent performance such as high strength, high corrosion resistance and high melting point. Widely used in the aerospace industry, medical equipment and other fields. The shadow ring is a marker ring used for X -ray development marks in the remote working area during interventional therapy, which belongs to disposable medical materials;High melting point, corrosion resistance, good cold processing performance, high accuracy; In line with human biocompatibility,stable transmission information, can be implanted; Product specifications:OD:0.3-5.0mm,wall thickness:0.015-0.2mm,support non-standard customization.Materials: Pt90lr10.

OD
mm

W.T. /mm

≥0.015

≥0.02

≥0.05

≥0.10

≥0.20

≥0.30

≥0.40

≥0.50

≥0.60

≥0.70

≥0.80

≥0.90

≥1.00

≥1.5

≥0.3

≥0.5

≥1.0

≥1.5

≥2.0

≥3.0

≥4.0

≥5.0

≥6.0

≥7.0

≥8.0

≥9.0

≥10.0

≥15.0

≥20.0

Material	Melting point (ºC)	Density (G/cm3)	Vickers hardnes Soft	Vickers hardnes Hard	Tensile force (MPa)	Resistivity (uΩ.cm)20ºC
Platinum (99.99%)	1772	21.45	40	100	147	10.8
Pt-Rh5%	1830	20.7	70	160	225	17.5
Pt-Rh10%	1860	19.8	90	190	274	19.2
Pt-Rh20%	1905	18.8	100	220	480	20.8
Platinum-Ir (99.99%)	2410	22.42
Pure Platinum-Pt (99.99%)	1772	21.45
Pt-Ir5%	1790	21.49	90	140	174	19
Pt-lr10%	1800	21.53	130	230	382	24.5
Pt-Ir20%	1840	21.81	200	300	539	32
Pt-lr25%	1840	21.7	200	300	238	33
Pt-Ir30%	1860	22.15	210	300	242	32.5
Pt-Ni10%	1580	18.8	150	320	441	32
Pt-Ni20%	1450	16.73	220	400	588	34.1
Pt-w%	1850	21.3	200	360	588	62
Applications: Gas sensors. Various sensors, medical components. Electric and heating probes, etc.

Platinum-iridium
Material Percentages
Pt-Ir wire(0.2-3mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Rod(3-10mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Foil(0.1-0.2mm) 90/10, 85/15, 80/20,75/25
Pt-Ir sheet(0.25-2mm) 90/10, 85/15, 80/20,75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or
foot;foil and sheet are sold by square inch or foot. Call or email for additional diameters, forms or custom sizes.

Material	Melting point °C	Density g/cm
Pure Pt --- Pt(99.99%)	1772	21.45
Pure Rh--- Rh(99.99%)	1963	12.44
Pt-Rh5%	1830	20.70
Pt-Rh10%	1860	19.80
Pt-Rh20%	1905	18.80
Pure Ir --- Ir(99.99%)	2410	22.42
Pt-Ir5%	1790	21.49
Pt-Ir10%	1800	21.53
Pt-Ir20%	1840	21.81
Pt-Ir25%	1840	21.70
Pt-Ir30%	1850	22.15
