1J46 Soft Magnetic Alloy Wire 0.02-8mm Bright Surface

Name: 1J46 Soft Magnetic Alloy Wire 0.02-8mm Bright Surface
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 5J20110/ TANKII 1200/ ТБ 2013
Price: 60.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Thermostat Bimetallic Strip

Certification: ISO 9001 and RoHS

Model Number: 5J20110/ TANKII 1200/ ТБ 2013

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: USD 40~80/KG

Packaging Details: Coil, Carton and Wooden Case

Delivery Time: 35~40 days

Payment Terms: T/T,Western Union

Supply Ability: 500KG per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    1J46 Precision Alloy, Soft Magnetic Alloys Precision Alloy, 0.02-8mm Precision Alloy


Name:	Soft Magnetic Alloys Wire/Precision Alloy/1J46	MOQ:	5kg
Surface:	Bright	Package:	Wooden Case

Name:	Soft Magnetic Alloys Wire/Precision Alloy/1J46
MOQ:	5kg
Surface:	Bright
Package:	Wooden Case

Description

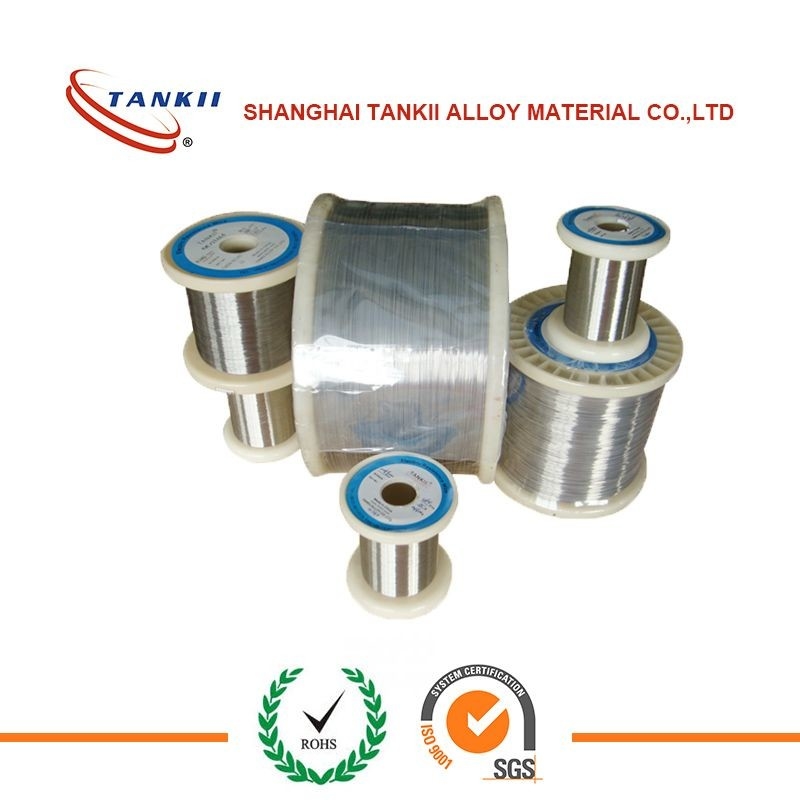

1J46 Soft Magnetic Alloy Wire 0.02-8mm Bright Surface

0.02-8mm Soft Magnetic Alloys Wire / Precision Alloy / 1J46

Product Specifications

Attribute	Value
Name	Soft Magnetic Alloys Wire/Precision alloy/1J46
MOQ	5kg
Surface	Bright
Package	Wooden Case

Product Description

Medium permeability of medium magnetic saturation soft magnetic alloy. This nickel alloy (45%-50% nickel content) features a saturated magnetic induction intensity of 1-1.5 T, offering higher permeability and coercive force than high permeability alloys. Ideal for various transformers, relays, electromagnetic clutches, and reactor cores. Its high resistivity makes it suitable for high-frequency applications.

Chemical Composition

Composition	C	P	S	Mn	Si
Content(%) ≤	0.03	0.02	0.02	0.6~1.0	0.15~0.3
Composition	Ni	Cr	Mo	Cu	Fe
Content(%)	45.0~46.5	-	-	0.2	Bal

Physical Properties

Shop Sign	Melting Point (ºC)	Resistivity (μΩ*m)	Density (g/cm³)	Curie Point (ºC)	Saturation Magnetostriction Coefficient (10-6)
1j46	10.9~11.2	0.56	8.75	400	0.5

Heat Treatment System

Shop Sign	Annealing Medium	Heating Temperature	Keep Temperature Time/h	Cooling Rate
1j46	Dry hydrogen or vacuum, pressure ≤ 0.1 Pa	1100~1200ºC	3~6	100~200ºC/h to 600ºC, then fast to 300ºC

Applications

Primarily used in weak magnetic or secondary magnetic field applications including small transformers, pulse transformers, relays, magnetic amplifiers, electromagnetic clutches, reactor cores, and magnetic shielding. Soft magnetic alloys are essential for energy conversion and information processing in electronics, precision instruments, and control systems.

Key Features

Low coercivity and magnetic hysteresis loss
High resistivity and low eddy-current loss
High initial magnetic permeability and maximum magnetic permeability
High saturation magnetic flux density

Packaging Options

Coil (plastic spool) + compressed ply-wooden case + pallet
Coil (plastic spool) + carton + pallet

Quality & Services

ISO9001 and SO14001 certified
Comprehensive after-sale services
Small order quantities accepted
Fast delivery
