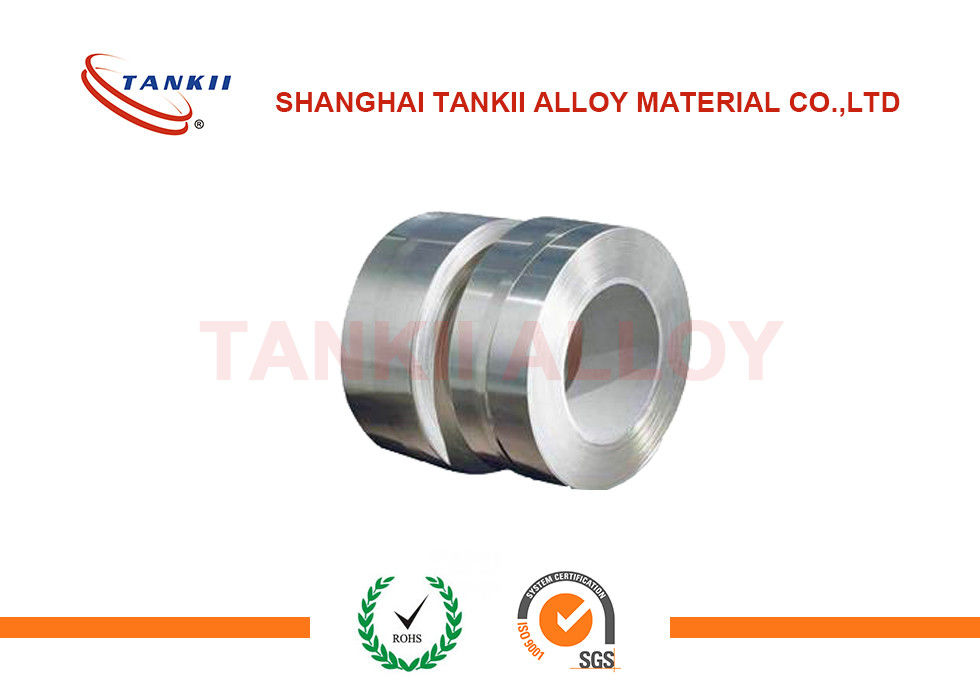

ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component

ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component
ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component

Large Image :  ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component

Product Details:
Place of Origin: China shanghai
Brand Name: tankii
Certification: ISO9001
Model Number: TM2
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: USD + 32 + KG
Packaging Details: wooden case
Delivery Time: 10-15day
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50 + Ton + month

ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component

Description
Use: Temperature Control Components Density: 7.7
Temperature Curvature: 39.0±5% Packaging: Wooden Case Or Carton
High Light:

soft magnetic alloy

,

kovar alloy





ASTM TM2 Thermal bimetal alloy strip

overview
Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.
The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.

System of heat treatment: heat sensitive resistance, resistivity and elastic modulus of samples before the measurement must undergo heat treatment, to eliminate stress.

Main features: high heat sensitive properties and high resistivity, but lower elastic modulus and allowed stress, can increase the sensitivity of the instrument, smaller size and increase the reaction



shop sign TM2
With brand
Composite layer
alloybrand
High expansion layer Mn75Ni15Cu10(Mn72Ni10Cu18)
middle layer --------
Low expansion layer Ni36

ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component 0





ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component 1



production process
Cold rolled →go oil → pickling → annealing cold-rolled →oil → pickling → annealing cold-rolled → conform to the requirements of the use of thermal bimetal strip



Welding performance: thermal bimetal not allowed in the flame or electric arc brazing or welding.Spot welding and resistance welding can be performed.Must be removed before welding, component spot welding processing surface oxidation film, grease and other stolen goods.5 j20110 because of its high expansion layer with low melting point, surface oxidation, be especially careful when welding.



ASTM TM2 Thermal bimetal Precision Alloy strip silver High resistance for temperature controlling component 2
