Product Details
Place of Origin: China
Brand Name: Precision Alloy
Certification: ISO 9001 and RoHS
Model Number: 1J22, 1J50, 1J79, 1J85
Payment & Shipping Terms
Minimum Order Quantity: 5~30KG
Price: USD 20~80$/ KG
Packaging Details: Coil in Wooden cases
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 10000KG per month
Shape: |
Strip, Foil, Sheet, Wire |
Condition: |
Bright/ Oxidized; Soft/ Hard |
Standard: |
ГОСТ 10994-74 / GBn198-88 |
Shape: |
Strip, Foil, Sheet, Wire |
Condition: |
Bright/ Oxidized; Soft/ Hard |
Standard: |
ГОСТ 10994-74 / GBn198-88 |
Precision Soft Magnetic Alloy High Permeability 1J22 1J50 1J79 1J85
Precision Alloys:
Precision Alloys have special physical and mechanical properties, and are extensively applied in the key elements and devices of precision motor, electric appliance, instruments and meters, telecommunication equipments, and precision machines.
According to the application and specialties, precision alloys are split into hard magnetic alloy, magnetically soft alloy, elastic alloy, expansion alloy, thermo bimetal, resistance alloy, thermocouple alloy, electric conduction alloy, electric contact alloy, shape memory alloy, superconducting alloy and so on.
1. Description
Soft Magnetic Alloy is one kind of alloy with high permeability and low coercivity in weak magnetic field. This kind of alloy is widely used in radio electronics industry, precision instruments, remote control and automatic control system, generally, it is mainly used in energy conversion and information processing.
1J22
Chemical Content(%)
| Mn | Ni | V | C | Si | P | S | Fe | Co |
| 0.21 | 0.2 | 1.3 | 0.01 | 0.19 | 0.004 | 0.003 | Bal | 50.6 |
Mechanical Properties
| Density | 8.2 g/cm3 |
| Thermal Expansion Coefficient (20~100ºC) | 8.5*10-6/ºC |
| Curie Point | 980 ºC |
| Volume Resistivity (20ºC) | 40 μΩ.cm |
| Saturation Magnetic Stricture Coefficient | 60~100 *10-6 |
| Coercive Force | 128 A/m |
| Magnetic induction strength in different magnetic field | |
| B400 | 1.6 |
| B800 | 1.8 |
| B1600 | 2.0 |
| B2400 | 2.1 |
| B4000 | 2.15 |
| B8000 | 2.2 |
2. Usage
It is used in electro-magnet pole, end welded pipe in magnetron, earphone diaphragm, torque motor rotor transducer ferrite core.
3. Features
It has a high saturation magnetic induction and high-magnetostriction coefficient.
4. Packing detail

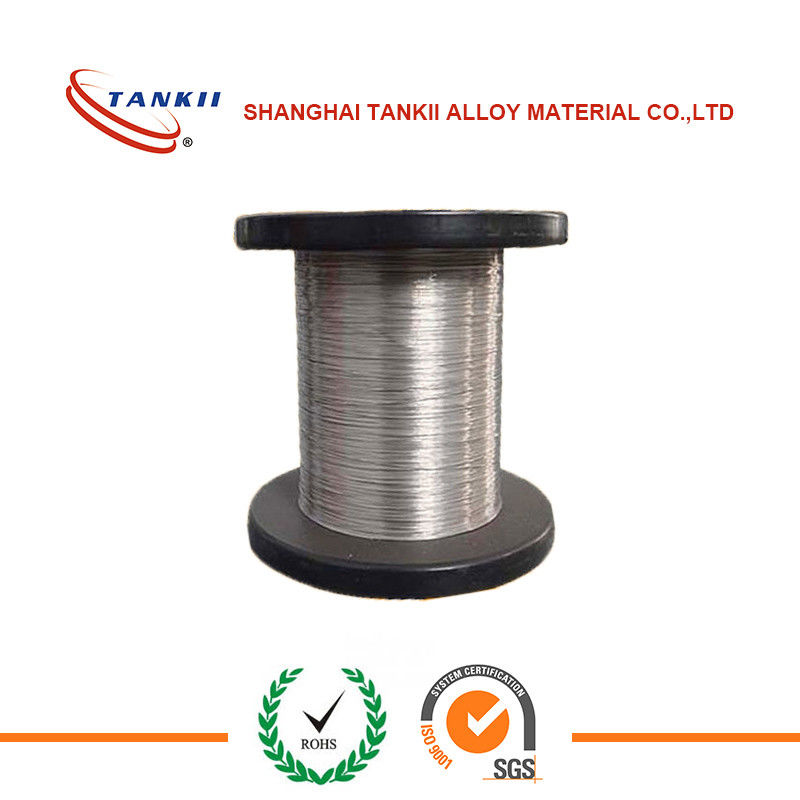

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
Application: Transformer, Electric relay, Electromagnetic clutch core.
Feature: High permeability alloy and High saturation magnetic flux density alloy.
Precision Soft Magnetic Alloy (1J22, 1J50, 1J79, 1J85)
