Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO
Model Number: CuNi30Mn
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Payment Terms: Western Union, T/T, L/C
Supply Ability: 60,000/month
Conductor Material: |
: Copper Nickel |
CuNi Series: |
CuNi(1,2,6,8,10,14,19,23,30,34,6J40(CuNi40) |
Shape: |
: Wire |
Application: |
: Heating Systerm |
Highest Working Temperature: |
: 250°C |
Model Number: |
: CuNi23Mn |
Conductor Material: |
: Copper Nickel |
CuNi Series: |
CuNi(1,2,6,8,10,14,19,23,30,34,6J40(CuNi40) |
Shape: |
: Wire |
Application: |
: Heating Systerm |
Highest Working Temperature: |
: 250°C |
Model Number: |
: CuNi23Mn |
Product Description
CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
30 |
1.0 |
- |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
350℃ |
|
Resisivity at 20℃ |
0.35%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
10(Max) |
|
Melting Point |
1170℃ |
|
Tensile Strength,N/mm2 Annealed,Soft |
400 Mpa |
|
Tensile Strength,N/mm2 Cold Rolled |
Mpa |
|
Elongation(anneal) |
25% (Max) |
|
Elongation(cold rolled) |
(Max) |
|
EMF vs Cu, μV/ºC (0~100ºC) |
-37 |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
Non |
Resistance Alloy- CuNi30Mn Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft

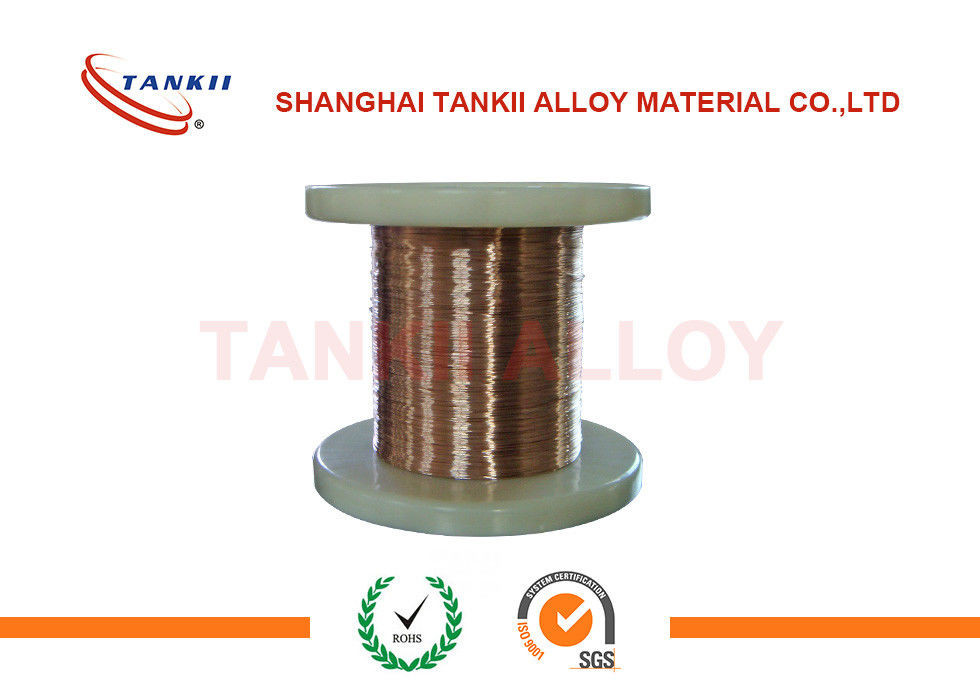

Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition is available
Chemical composition and main properties
|
Characteristic |
Resistivity ( 200C μΩ.m) |
Max.working Temperature ( 0C) |
Tensile Strength (Mpa) |
Melting point (0C) |
Density ( g/cm3) |
TCR x10-6/ 0C (20~600 0C) |
EMF vs Cu (μV/ 0C) (0~100 0C) |
|
Alloy Nomenclature |
|||||||
|
NC003 (CuNi1) |
0.03 |
200 |
210 |
1085 |
8.9 |
<100 |
-8 |
|
NC005 (CuNi2) |
0.05 |
200 |
220 |
1090 |
8.9 |
<120 |
-12 |
|
NC010 (CuNi6) |
0.1 |
220 |
250 |
1095 |
8.9 |
<60 |
-18 |
|
NC012 (CuNi8) |
0.12 |
250 |
270 |
1097 |
8.9 |
<57 |
-22 |
|
NC015 (CuNi10) |
0.15 |
250 |
290 |
1100 |
8.9 |
<50 |
-25 |
|
NC020 (CuNi14) |
0.2 |
300 |
310 |
1115 |
8.9 |
<30 |
-28 |
|
NC025 (CuNi19) |
0.25 |
300 |
340 |
1135 |
8.9 |
<25 |
-32 |
|
NC030 (CuNi23) |
0.3 |
300 |
350 |
1150 |
8.9 |
<16 |
-34 |
|
NC035 (CuNi30) |
0.35 |
350 |
400 |
1170 |
8.9 |
<10 |
-37 |
|
NC040 (CuNi34) |
0.4 |
350 |
400 |
1180 |
8.9 |
0 |
-39 |
|
NC050 (CuNi44) |
0.5 |
400 |
420 |
1200 |
8.9 |
<-6 |
-43 |
