Product Details:
|
| Standard: | ASTM / GB / JIS / DIN | Surface: | Brght |
|---|---|---|---|
| Sanple: | Free | Chemical: | Cu 99.90% |
| Color: | Red | ||
| High Light: | copper metal sheet,thin copper sheet |
||

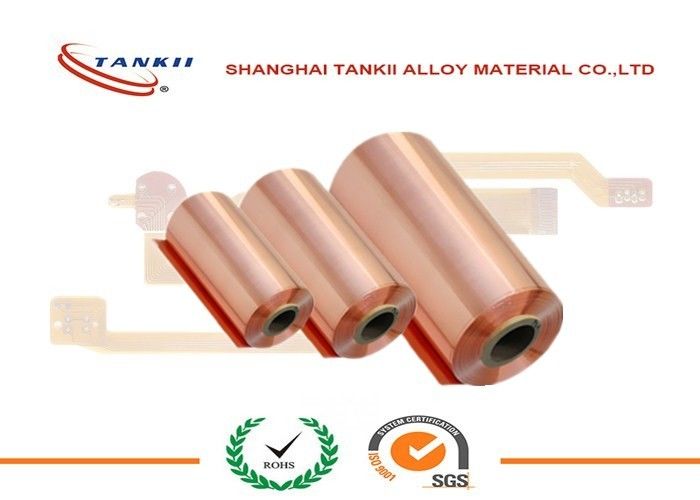

Cu - ETP OF - Cu SW - Cu Pure Copper Sheet C1201 C1020 C1011 Transformers Cable Electrical Power
Chemical Content, %
| Cu | Bi | Sb | As | Fe | Ni | Pb | S | Zn | ROHS Directive | |||
| Cd | Pb | Hg | Cr | |||||||||
| 99.90 | 0.001 | 0.002 | 0.002 | 0.005 | - | 0.005 | 0.005 | - | ND | ND | ND | ND |
Physical Properties
| Melting Point - Liquidus | 1083℃ |
| Melting Point - Solidus | 1065℃ |
| Density | 8.91 gm/cm3@ 20 ℃ |
| Specific Gravity | 8.91 |
| Electrical Resistivity | 1.71 microhm-cm @ 20 ℃ |
| Electrical Conductivity** | 0.591 MegaSiemens/cm @ 20 ℃ |
| Thermal Conductivity | 391.1 W/m ·oK at 20 C |
| Coefficient of Thermal Expansion | 16.9 ·10-6per℃(20-100 ℃) |
| Coefficient of Thermal Expansion | 17.3 ·10-6per℃(20-200 ℃) |
| Coefficient of Thermal Expansion | 17.6·10-6per℃(20-300 ℃) |
| Specific Heat Capacity | 393.5 J/kg ·oK at 293 K |
| Modulus of Elasticity in Tension | 117000 Mpa |
| Modulus of Rigidity | 44130 Mpa |
Application of Copper foil
1) Electric and electricsprings,switches
2) Lead frames
3) Connectors and oscillation reeds
3)PCB field
4) Communication cable, Cable armoring, Mobile phone mainboard
5) Ion battery production lamination with PI film
6) PCB collector(electrode backing) materials
Product Character
| Alloy No | Temper | Mechanical Properties | |||||||
| Tensile strength(N/mm2) | Elongation(%) | Vickers hardess(hv) | |||||||
| GB | JIS | GB | JIS | GB | JIS | GB | JIS | GB | JIS |
| T2 | C1100 | M | O | ≥195 | ≥195 | ≥30 | ≥30 | ≤70 | - |
| Y4 | 1/4H | 215-275 | 215-285 | ≥25 | ≥20 | 60-90 | 55-100 | ||
| Y2 | 1/2H | 245-345 | 235-315 | ≥8 | ≥10 | 80-110 | 75-120 | ||
| Y | H | 295-380 | ≥275 | ≥3 | - | 90-120 | ≥80 | ||
| T | EH | ≥350 | - | - | - | ≥110 | - | ||
| TY | SH | - | - | - | - | - | - | ||
| T3 | C1100 | M | O | ≥195 | - | ≥30 | - | ≤70 | - |
| Y4 | 1/4H | 215-275 | - | ≥25 | - | 60-90 | - | ||
| Y2 | 1/2H | 245-345 | - | ≥8 | - | 80-110 | - | ||
| Y | H | 295-380 | - | ≥3 | - | 90-110 | - | ||
| T | EH | ≥350 | - | - | - | ≥110 | - | ||
| TY | SH | - | - | - | - | - | - | ||
