C11000 C1100 C101 Pure Copper Sheet Cu - ETP R - Cu57 0.001 - 5mm * 0.5 - 1000mm

Product Details

Place of Origin: Shanghai China

Brand Name: TANKII

Certification: ISO:9001 & RoHS

Model Number: Cu - ETP

Payment & Shipping Terms

Minimum Order Quantity: 50 kilograms

Price: USD+8-11+kilograms

Packaging Details: Standard export package,suit for all kinds of transportation

Delivery Time: 5-10days for the nuture order

Payment Terms: Western Union, L/C, T/T

Supply Ability: 100+Tons+per month

Get Best Price
Contact Now
Specifications
Highlight:

copper metal sheet

,

thin copper sheet

Color:
Red
Standard:
ASTM / GB / JIS / DIN
Surface:
Bright
Size:
0.001mm - 5 Mm * 0.5mm - 1000mm
Color:
Red
Standard:
ASTM / GB / JIS / DIN
Surface:
Bright
Size:
0.001mm - 5 Mm * 0.5mm - 1000mm
Description

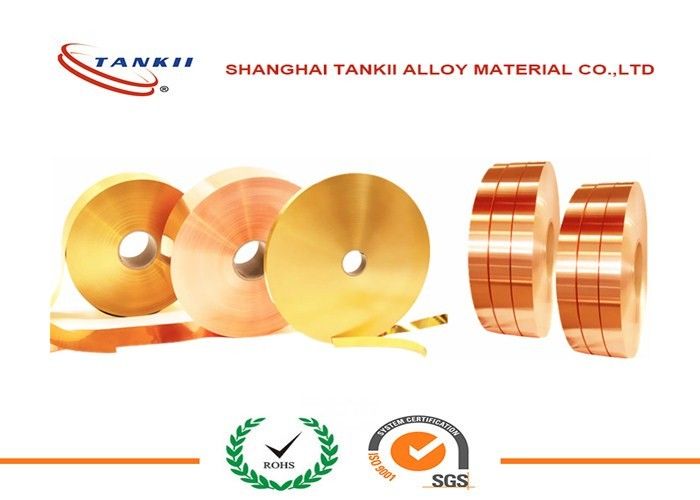

C11000 C1100 C101 Pure Copper Sheet Cu - ETP R - Cu57 0.001 - 5mm * 0.5 - 1000mm

C11000 C1100 C101 Pure Copper Sheet Cu - ETP R - Cu57 0.001 - 5mm * 0.5 - 1000mm



Specifications

copper foil//Cu ETP/E-Cu58/C11000 For the manufacture of transformer! Copper content from99.90%



1 .  Import(GermanyMKM: GreeceHALCOR): E-Cu57 Temper M
Domestic: C11000 Temper Soft , 1/2hard,hard
Material: Copper strip/Foil

Item Copper Foil/strip
Material /Grade C11000
Width 0.5mm-1000mm
thickness 0.001mm-5mm
Length as required
Package Standard export package,suit for all kinds of transport,or as required.
Surface mill,polished,bright,hair line,brush,sand blast,etc
Price term CIF FOB CFR
Payment Term T/T,L/C
Moq 1MQ

2 .  Appearance standard:
( 1 ) .  Soft surface, no grease, smooth and without feeling scratch.
( 2 ) .  Tolerances of side burr, thickness and width should less than that in the standard.

3 .  Packing:
( 1 ) . Generally polyethylene film roll the coil and put them on the wooden pallets. Also we can meet special requirements of customers.
( 2 ) . Strip itself and identified material all conform to RoHS environmental requirements.

4 .  Applications:
Good electric conductivity and thermal conductivity, high intensity and rigidity. Used as material in electronic connectors and large scale integrated circuit lead frame.

5 .  Parter:
Min Quantity:according to your size

6 . Physical Properties

Melting Point - Liquidus 1083℃
Melting Point - Solidus 1065℃
Density 8.91 gm/cm3@ 20 ℃
Specific Gravity 8.91
Electrical Resistivity 1.71 microhm-cm @ 20 ℃
Electrical Conductivity** 0.591 MegaSiemens/cm @ 20 ℃
Thermal Conductivity 391.1 W/m ·oK at 20 C
Coefficient of Thermal Expansion 16.9 ·10-6per℃(20-100 ℃)
Coefficient of Thermal Expansion 17.3 ·10-6per℃(20-200 ℃)
Coefficient of Thermal Expansion 17.6·10-6per℃(20-300 ℃)
Specific Heat Capacity 393.5 J/kg ·oK at 293 K
Modulus of Elasticity in Tension 117000 Mpa
Modulus of Rigidity 44130 Mpa



Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
