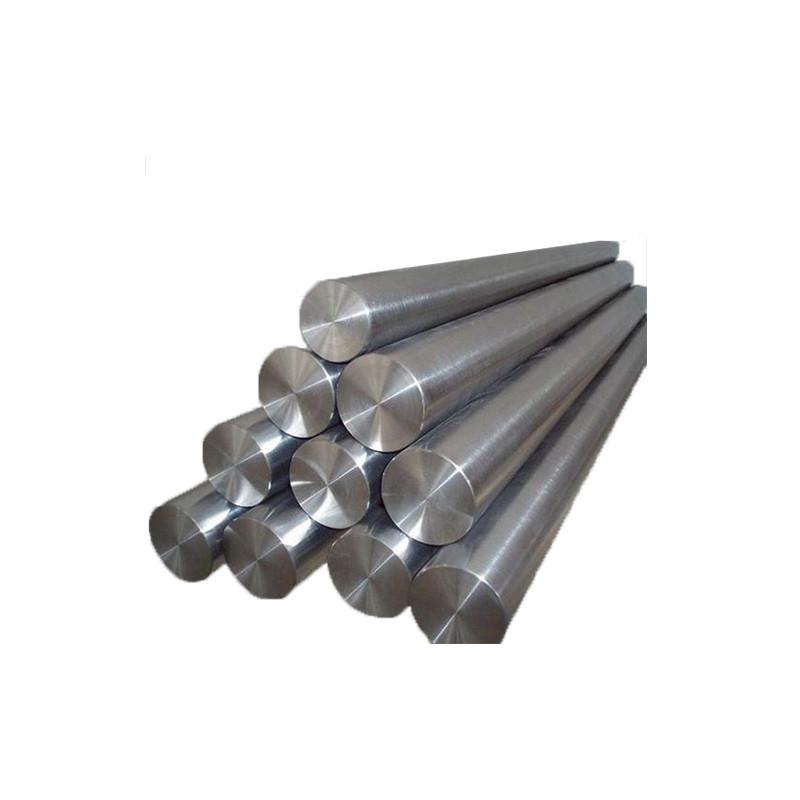

Custmized High Quality Nickel Based Monel400 K500 Uns No4400 Alloy Round Bar

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: Monel 400 bar

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Wooden Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Custmized Nickel Based Monel400 Round Bar

,

Uns No4400 Alloy Round Bar

Model NO.:
Monel Rod
Shape:
Wrie, Pipe, Bar, Strip, Plate
Surface:
Bright Surface
Specification:
GB, AISI, ASTM, DIN, EN, SUS, UNS
Origin:
Shanghai China
Trademark:
TANKII
HS Code:
7505120000
Production Capacity:
2000 Tons/Year
Model NO.:
Monel Rod
Shape:
Wrie, Pipe, Bar, Strip, Plate
Surface:
Bright Surface
Specification:
GB, AISI, ASTM, DIN, EN, SUS, UNS
Origin:
Shanghai China
Trademark:
TANKII
HS Code:
7505120000
Production Capacity:
2000 Tons/Year
Description
Custmized High Quality Nickel Based Monel400 K500 Uns No4400 Alloy Round Bar

Monel 400 is a nickel-copper alloy (about 67% Ni - 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric a cid and ammonia systems. Monel 400 has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.

Features:
* Resistant to seawater and steam at high temperatures
* Excellent resistance to rapidly flowing brackish water or seawater
* Excellent resistance to stress corrosion cracking in most freshwaters
* Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
* Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acids
* Excellent resistance to neutral and alkaline salt
* Resistance to chloride induced stress corrosion cracking
* Good mechanical properties from sub-zero temperatures up to 1020° F
* High resistance to alkalis

Applications:
* Valves, pumps, shafts, fittings, and fasteners
* Industrial heat exchangers
* Chlorinated solvents
* Crude oil distillation towers
* Marine engineering
* Chemical and hydrocarbon processing equipment
* Gasoline and freshwater tanks
* Crude petroleum stills
* De-aerating heaters
* Boiler feed water heaters and other heat exchangers
Chemical Composition
Grade
Ni%
Cu%
Fe%
Mn%
C%
Si%
S%
Monel 400
Min 63
28-34
Max 2.5
Max 2.0
Max 0.30
Max 0.50
Max 0.024
Monel 400 International Brand

USA
GE
UK
FR

UNS
SEW VDIUV
BS
AFNOR
Monel 400
N04400
W.Nr.2.4360 NiCu30Fe
NA 12
Nu 30
Physical Properties
Grade
Density
Melting Point
Monel 400
8.83 g/cm3
1300ºC-1390ºC
Mechanical Properties
Alloy
Tensile Strength
(Rm N/mm2)
Yield strength
(RP0.2N/mm2)
Elongation(A5%)
HB
Monel 400
480
170
35
≥331
Production Standard

Bar
Forging
Pipe
Sheet/Strip
Welding Wire
Standard
ASTM B164
ASTM B564
ASTM B165
ASTM B127
ERNiCu-7
