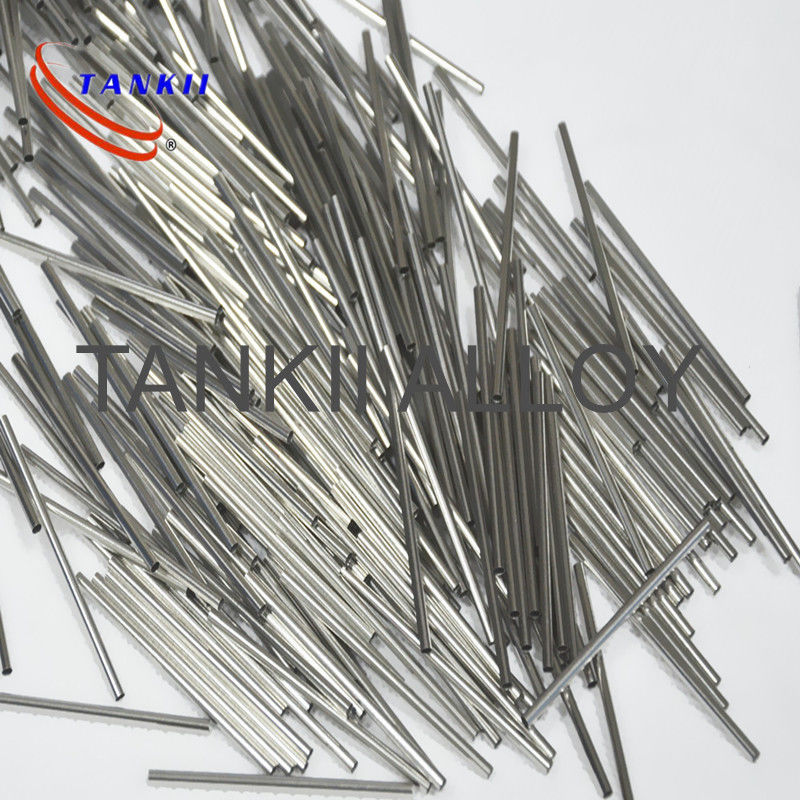

Od 0.5-5.0mm High Quality Pure Nickel Ni201 Ni200 Ni205 Ni212 Ni270 Tube Nickel 201 Tube / Pipe

Name: Od 0.5-5.0mm High Quality Pure Nickel Ni201 Ni200 Ni205 Ni212 Ni270 Tube Nickel 201 Tube / Pipe
Brand: TANKII
SKU: NI200,201,205,212,270
Rating: 4.6 (168 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: NI200,201,205,212,270

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    High Quality Nickel 201 Tube, 0.5-5.0mm Nickel 201 Tube, Pure Nickel 201 Tube


Material:	Nickel Ni201 Ni200 Ni205 Ni212 Ni270	OD:	0.30mm-80mm
W.T:	0.02mm Min.	Length:	0.30mm Min.
Density:	8.9 G/cm3	Surface:	Bright
Series:	NiMn2，NiMn3， NiMn5 Etc.	Origin:	Shanghai China

Material:	Nickel Ni201 Ni200 Ni205 Ni212 Ni270
OD:	0.30mm-80mm
W.T:	0.02mm Min.
Length:	0.30mm Min.
Density:	8.9 G/cm3
Surface:	Bright
Series:	NiMn2，NiMn3， NiMn5 Etc.
Origin:	Shanghai China

Description

Od 0.5-5.0mm High Quality Pure Nickel Ni201 Ni200 Ni205 Ni212 Ni270 Tube Nickel 201 Tube / Pipe

OD 0.5-5.0mm High Quality Pure Nickel Ni201 Ni200 Ni205 Ni212 Ni270 Tube Nickel 201 Tube / Pipe

Description
Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders etc.
Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 200	Min 99.2	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.15	Max 0.01

Physical Data

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Our Production Standard

	Bar	Forging	Pipe	Sheet/Strip	Wire
ASTM	ASTM B160	ASTM B564	ASTM B161/B163/B725/B751	AMS B162	ASTM B166

Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 201	Min 99	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.02	Max 0.01

Physical Data

Density	8.9g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.085×10-6ohm.m
Melting Point	1435-1445ºC
Thermal Conductivity	79.3 W/m-K
Mean Coeff Thermal Expansion	13.1×10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties	Nickel 201
Tensile Strength	403 Mpa
Yield Strength	103 Mpa
Elongation	50%

Our Production Standard

	Bar	Forging	Pipe	Sheet/Strip	Wire
ASTM	ASTM B160	ASTM B564	ASTM B161/B163/B725/B751	AMS B162	ASTM B166

	Main Composition %
	Ni	Mn	Si
NiMn2	Bal.	1.5-2.5	0.3
NiMn3	Bal.	2.3-3.3	0.3
NiMn5	Bal.	4.6-5.4	0.5

Code No.	Dia. mm	TS. N/mm2	Elongation %
NiMn2	≤6.0	≥350	≥20
NiMn3	≤6.0	≥350	≥20
NiMn5	≤6.0	≥350	≥20

Application
Alkali industry.
Chlor-alkali chemical and organic chloride production.
Food processing industry.
High temperature halogen and salt corrosion environment.
Electronic instrument parts. Water treatment.

Od 0.5-5.0mm High Quality Pure Nickel Ni201 Ni200 Ni205 Ni212 Ni270 Tube Nickel 201 Tube / Pipe 0
