Thermocouple Bare Alloy Wire Ni/Cr/Si/Cu/Al/ Pure Iron(Type K/N/E/J/T) For Electric Insulated Cable/copper Wire

Name: Thermocouple Bare Alloy Wire Ni/Cr/Si/Cu/Al/ Pure Iron(Type K/N/E/J/T) For Electric Insulated Cable/copper Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: J / K / T / E / N / B / R / S
Price: 39.60 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: J / K / T / E / N / B / R / S

Payment & Shipping Terms

Minimum Order Quantity: 10 kg per size

Price: Negotiation

Packaging Details: roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Delivery Time: 5-10 days after getting the payment

Payment Terms: T/T, Paypal, Western Union, MoneyGram,

Supply Ability: 1000Ton per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Electric Insulated Thermocouple Bare Alloy Wire, Pure Iron Thermocouple Bare Alloy Wire


KP-KN:	Chromel Alumel	Surface:	Bright
Diameter:	0.3mm ,0.5mm. 0.6mm, 0.7mm, 0.8mm	Grade:	I/II/III
SP:	Pt Rh10	SN:	Pt
Shape:	Round Wire	MOQ:	10kg For Each Leg
Leading Time:	2-5 Days	Package:	Waterproof Plastic Tape
R:	Pt Rh13- Pt	B:	Pt Rh30-Pt Rh6
JP:	Fe	JN:	CuNi

KP-KN:	Chromel Alumel
Surface:	Bright
Diameter:	0.3mm ,0.5mm. 0.6mm, 0.7mm, 0.8mm
Grade:	I/II/III
SP:	Pt Rh10
SN:	Pt
Shape:	Round Wire
MOQ:	10kg For Each Leg
Leading Time:	2-5 Days
Package:	Waterproof Plastic Tape
R:	Pt Rh13- Pt
B:	Pt Rh30-Pt Rh6
JP:	Fe
JN:	CuNi

Description

Thermocouple Bare Alloy Wire Ni/Cr/Si/Cu/Al/ Pure Iron(Type K/N/E/J/T) For Electric Insulated Cable/copper Wire

Thermocouple Bare Alloy Wire Ni/Cr/Si/Cu/Al/ pure iron(Type K/N/E/J/T)for electric insulated cable/copper wire/hdmi cable

Type K is the most commonly used thermocouple for measuring high temperatures, providing the widest operating temperature range from - 200 ° to + 1260 °C.Type K has a better resistance to oxidation than other types of thermocouple (except type N) and is particularly recommended for oxidizing or inert atmospheres.It should not be used without protection in sulphurous atmospheres, in reducing atmospheres or a long time in a vacuum.Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

Type N thermocouple has been developed which provides much longer life, longer exposure to high temperature and better reliability of EMF drift and short term EMF changes.

Type E thermocouple has the highest EMF output per degree of all the referenced thermocouples.

Type J Thermocouple is frequently used for its low cost and high EMF It can be used in oxidizing conditions up to 760°C. For higher temperatures, it is recommended to use large wire diameters.Type J thermocouple is suitable for oxidizing, reducing inert atmosphere or vacuum.

Type T thermocouple is suitable for oxidizing, reducing inert atmosphere or vacuum.

1.Chemical composition and mechanical properties

Product	Chemical Composition/%							Density (g/cm3)	Melting point (ºC)	Resistivity (μΩ.cm)	Tensile Strength (Mpa)
Product	Ni	Cr	Si	Al	Mg	Fe	Cu	Density (g/cm3)	Melting point (ºC)	Resistivity (μΩ.cm)	Tensile Strength (Mpa)
KP(+) Nickel Chrome	90	10	-	-	-	-	-	8.7	1427	70	≥490
KN(-) Nickel Silicon	97	-	3	-	-	-	-	8.6	1399	29	≥390
KN(-) Nickel Aluminum	96	-	1	3	-	-	-	8.6	1399	29	≥390
NP(+) Nickel Chrome Silicon	Blance	13.7-14.7	1.2-1.6	-	<0.01	-	-	8.7	1427	70	≥490
NN(-) Nickel Silicon Magnesium	Blance	<0.02	4.2-4.6	-	0.5-1.5	-	-	8.6	1399	29	≥390
EP(+) Nickel Chrome	90	10	-	-	-	-	-	8.5	1427	70.6	≥490
EN(-) Copper Nickel	45	-	-	-	-	-	55	8.8	1220	49	≥390
JP(+) Pure Iron	-	-	-	-	-	100	-	7.8	1402	12	≥240
JN(-) Copper Nickel	45	-	-	-	-	-	55	8.8	1220	49	≥390
TP(+) Copper Wire	-	-	-	-	-	-	100	8.9	1084	1.71	≥196
TN(-) Copper Nickel	45	-	-	-	-	-	55	8.8	1220	49	≥390

2.Maximum operating temperatures

Product	Alloy wire Dia/mm	The long-term operating temperatures/°C	The short-term operating temperatures/°C
KP/KN	0.3	700	800
	0.5	800	900
	0.8,1.0	900	1000
	1.2,1.6	1000	1100
	2.0,2.5	1100	1200
	3.2	1200	1300
NP/NN	0.3	700	800
	0.5	800	900
	0.8,1.0	900	1000
	1.2,1.6	1000	1100
	2.0,2.5	1100	1200
	3.2	1200	1300
EP/EN	0.3,0.5	350	450
	0.8,1.0,1.2	450	550
	1.6,2.0	550	650
	2.5	650	750
	3.2	750	900
JP/JN	0.3,0.5	300	400
	0.8,1.0,1.2	400	500
	1.6,2.0	500	600
	2.5,3.2	600	750
TP/TN	0.2,0.3	150	200
TP/TN	0.5,0.8	200	250

3.EMF reference table (μV)

Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Tolerance	Range of EMF
KP/KN	100	4 096	±46	4 050-4 142
	200	8 138	±44	8 094-8 182
	300	12 209	±50	12 159-12 259
	400	16 397	±68	16 329-16 465
	500	20 644	±85	20 559-20 729
	600	24 905	±102	24 803-25 007
	700	29 129	±117	29 012-29 246
	800	33 275	±131	33 144-33 406
	900	37 326	±144	37 182-37 470
	1000	41 276	±156	41 120-41 432
	1100	45 119	±167	44 952-45 286
	1200	48 838	-	-
	1300	52 410	-	-

Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Tolerance	Range of EMF
NP/NN	100	2774	±44	2730-2818
	200	5913	±49	5864-5962
	300	9341	±53	9288-9394
	400	12974	±59	12915-13033
	500	16748	±76	16672-16824
	600	20613	±94	20519-20707
	700	24527	±110	24417-24637
	800	28455	±126	28329-28581
	900	32371	±140	32231-32511
	1000	36256	±154	36102-36410
	1100	40087	±167	39920-40254
	1200	43846	-	-
	1300	47477	-	-

Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Tolerance	Range of EMF
EP/EN	100	6 319	±68	6 251-6 387
	200	13 421	±74	13 347-13 495
	300	21 036	±93	20 943-21 129
	400	28 946	±128	28 818-29 074
	500	37 005	±162	36 843-37 167
	600	45 093	±194	44 899-45 287
	700	53 112	±223	52 889-53 335
	800	61 017	±251	60 766-61 268
	900	66 787	-	-

Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Tolerance	Range of EMF
JP/JN	100	5 269	±82	5 187-5 351
	200	10 779	±83	10 696-10 862
	300	16 327	±83	16 244-16 410
	400	21 848	±88	21 760-21 936
	500	27 393	±112	27 281-27 505
	600	33 102	±140	32 962-33 242
	700	39 132	±174	38 958-39 306
	750	42 281	±192	42 089-42 437
	760	42 919	±194	42 725-43 113

Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
Product	Operating temperatures/°C	Nominal value of thermoelectric EMF	Tolerance	Range of EMF
TP/TN	100	4 279	±24	4 255-4 303
	150	6 704	±30	6 674-6 734
	200	9 288	±43	9 245-9 331
	250	12 013	±56	11 957-12 069
	300	14 862	±70	14 792-14 932
	350	17 818	±74	17 744-17 892

Our production as per norm GB/T 2614-2010,ASTME230,IEC6584.For further information or special request, please contact us.

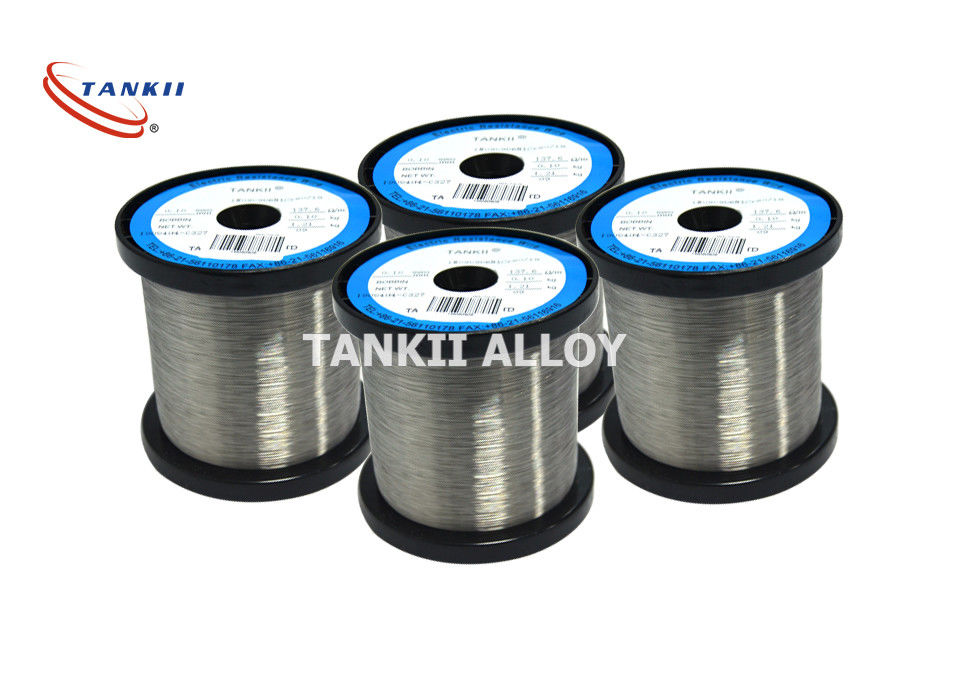

Product Picture of thermocouple wire :
