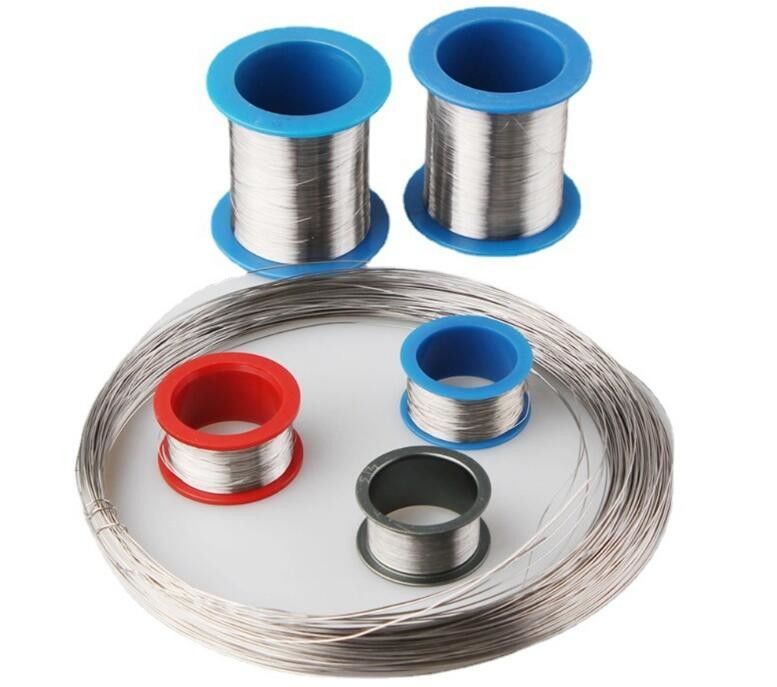

PtIr10 PtIr20 PtIr 25 PtIr30 High Purity Capillarity Tube Platinum Iridium Alloy Wire/tube For Medical Surgery

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001,SGS

Model Number: PtIr10 PtIr20 PtIr30

Payment & Shipping Terms

Minimum Order Quantity: 1 meters

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

PtIr30 capillarity tube

,

PtIr20 capillarity tube

,

PtIr10 Platinum Iridium Alloy Wire

Model NO.:
Pt90Ir10, Pt80Ir20, Pt70Ir30
Surface:
Bright Surface
Product Name:
Platinum Iridium Wire
Condition:
Soft
Transport Package:
DIN Spool Carton Wooden Case
Grade:
PT90IR10, PT80IR20, PT70IR30
Trademark:
TANKII
HS Code:
7115901090
Model NO.:
Pt90Ir10, Pt80Ir20, Pt70Ir30
Surface:
Bright Surface
Product Name:
Platinum Iridium Wire
Condition:
Soft
Transport Package:
DIN Spool Carton Wooden Case
Grade:
PT90IR10, PT80IR20, PT70IR30
Trademark:
TANKII
HS Code:
7115901090
Description
PtIr10 PtIr20 PtIr 25 PtIr30 High Purity Capillarity Tube Platinum Iridium Alloy Wire/tube For Medical Surgery

PtIr10 PtIr20 PtIr 25 PtIr30 high purity capillarity tube platinum iridium alloy wire/tube for medical surgery



Pt-iridium wire is a platinum-based binary alloy containing selenium. It is a continuous solid solution at high temperature. When slowly cooled to 975~700 ºC, solid phase decomposition occurs, but the phase equilibrium process proceeds very slowly. It can significantly improve the corrosion resistance of platinum due to its easy volatilization and oxidation. There are Ptlr10, Ptlr20, Ptlr25, Ptlr30 and other alloys, with high hardness and high melting point, high corrosion resistance and low contact resistance, the chemical corrosion rate is 58% of pure platinum, and the oxidation weight loss is 2.8mg/g. It is a classic electrical contact material. Used for high ignition contacts of aero-engines, electrical contacts of relays with high sensitivity and Wei motors; potentiometers and conductive ring brushes of precision sensors such as aircraft, missiles and gyroscopes

Appliance:

Platinum-iridium (Pt-Ir) alloy wire has a wide range of applications due to its exceptional properties, including:

  1. Electrical and Electronic Applications:

    • Electrical contacts and connectors: The corrosion resistance and durability of Pt-Ir alloy wire make it suitable for use in electrical contacts, connectors, and switches that operate in harsh environments.
    • Electrodes: Pt-Ir alloy electrodes are used in various electrochemical applications, such as pH meters, dissolved oxygen sensors, and fuel cells, due to their high electrical conductivity and corrosion resistance.
    • Spark plug electrodes: The high melting point and wear resistance of Pt-Ir alloy wire make it an ideal material for spark plug electrodes in internal combustion engines.
  2. Scientific and Laboratory Equipment:

    • Thermocouple elements: Pt-Ir alloy wire is used in the construction of thermocouples, which are widely used for temperature measurement in scientific and industrial applications.
    • Laboratory crucibles and equipment: The chemical inertness and high-temperature stability of Pt-Ir alloy make it suitable for use in laboratory equipment, such as crucibles, boats, and other components that operate at high temperatures.
  3. Medical and Dental Applications:

    • Implantable devices: Pt-Ir alloy's biocompatibility and corrosion resistance make it suitable for use in medical implants, such as pacemaker electrodes and orthopedic devices.
    • Dental applications: Pt-Ir alloy is used in the production of dental fixtures, such as crowns, bridges, and orthodontic appliances, due to its strength, durability, and biocompatibility.
  4. Aerospace and Defense Applications:

    • Rocket nozzle components: The high-temperature performance and mechanical strength of Pt-Ir alloy wire make it suitable for use in rocket nozzle components and other aerospace applications.
    • Electrical contacts in military equipment: Pt-Ir alloy's resistance to corrosion and wear makes it an ideal material for electrical contacts in military and defense equipment.

The unique combination of properties, including corrosion resistance, high-temperature performance, and mechanical strength, make platinum-iridium alloy wire a valuable material in a wide range of industries and applications.

Material Melting point (ºC) Density (G/cm3) Vickers hardnes
Soft
Vickers hardnes
Hard
Tensile force
(MPa)
Resistivity
(uΩ.cm)20ºC
Platinum (99.99%) 1772 21.45 40 100 147 10.8
Pt-Rh5% 1830 20.7 70 160 225 17.5
Pt-Rh10% 1860 19.8 90 190 274 19.2
Pt-Rh20% 1905 18.8 100 220 480 20.8
Platinum-Ir (99.99%) 2410 22.42
Pure Platinum-Pt (99.99%) 1772 21.45
Pt-Ir5% 1790 21.49 90 140 174 19
Pt-lr10% 1800 21.53 130 230 382 24.5
Pt-Ir20% 1840 21.81 200 300 539 32
Pt-lr25% 1840 21.7 200 300 238 33
Pt-Ir30% 1860 22.15 210 300 242 32.5
Pt-Ni10% 1580 18.8 150 320 441 32
Pt-Ni20% 1450 16.73 220 400 588 34.1
Pt-w% 1850 21.3 200 360 588 62
Specifications: 0.015~1.2(mm) in round wire, strip: 60.1~0.5(mm)
Applications: Gas sensors. Various sensors, medical components. Electric and heating probes, etc.
