Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001-2008
Model Number: K,J,T,E,N
Payment & Shipping Terms
Minimum Order Quantity: 5KG
Price: Negotiation

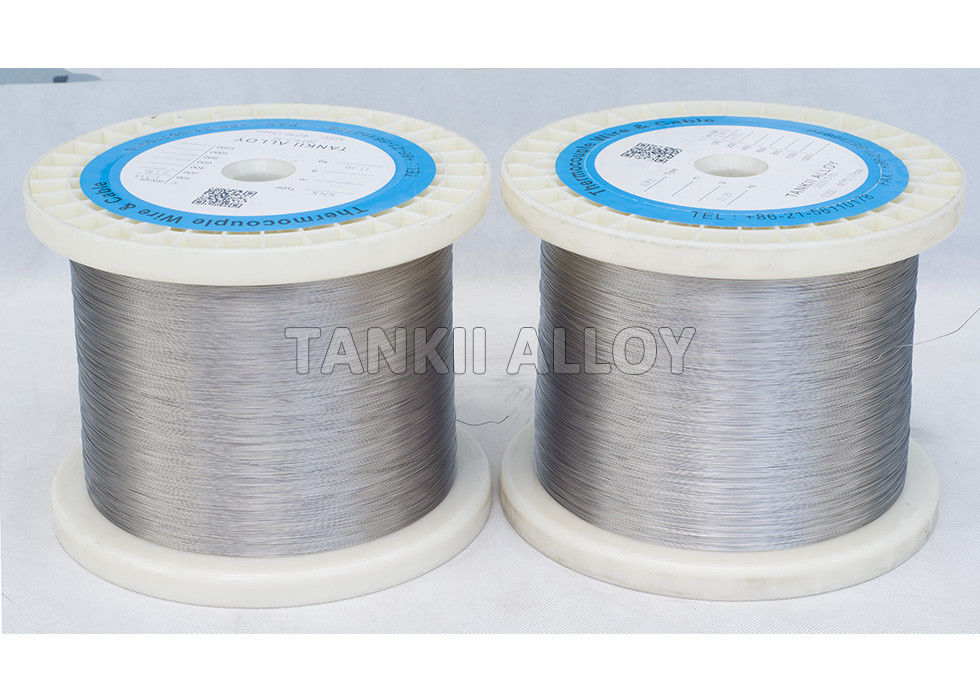

Packaging Details: On spool or in coil
Delivery Time: 5-10 working days
Supply Ability: 20MT/MONTH
Conductor: |
Chromel And Alumel |
Wire Color: |
Bright Or Oxidized |
Size: |
0.1mm~8mm |
Shape: |
Wire/rod/strip/ribbon Wire |
Application: |
Thermocouple Sensor |
Conductor: |
Chromel And Alumel |
Wire Color: |
Bright Or Oxidized |
Size: |
0.1mm~8mm |
Shape: |
Wire/rod/strip/ribbon Wire |
Application: |
Thermocouple Sensor |
K Thermocouple Bare Wire with J E T N 0.2mm to 10mm Diameter , High Temperature Thermocouple Wire
|
Type |
Conductor |
Temperature range |
μV |
Tolerance acc IEC 584-2 |
||||||
|
Class 1
|
Class 2 |
Class 3 |
||||||||
|
T |
+ Copper (Cu) -Constantan(CuNi) |
-200 ºC / + 350 ºC - |
-5603 to - 17816 |
-40 ºC / + 350 ºC |
± 0,5 ºC or ± 0,004 . /t/ |
|
± 1 ºC or ± 0,0075 . /t/ |
-200 ºC / + 40 ºC |
± 1 ºC or ± 0,015 ./t/ |
|
|
J |
+ Iron (Fe) -Constantan(CuNi) |
-40 ºC / + 750 ºC - |
-1960 to + 42283 |
-40 ºC / + 750 ºC |
± 1,5 ºC or ± 0,004 . /t/ |
|
± 2,5 ºC or ± 0,0075 ./t/ |
|
|
|
|
E |
+ Chromel (NiCr) -Constantan(CuNi) |
-200 ºC / + 900 ºC - |
-8824 to + 68783 |
-40 ºC / + 800 ºC |
± 1,5 ºC or ± 0,004 . /t/ |
-40 ºC / + 900 ºC |
± 2,5 ºC or ± 0,0075 ./t/ |
-200 ºC / + 40 ºC |
± 2,5 ºC or ± 0,015 ./t/ |
|
|
K |
+ Chromel (NiCr) - Alumel (NiAl) |
-200 ºC / + 1200 ºC |
-5891 to + 48828 |
-40 ºC / + 1000 ºC |
± 1,5 ºC or ± 0,004 . /t/ |
-40 ºC / + 1200 ºC |
± 2,5 ºC or ± 0,0075 . /t/ |
-200 ºC / + 40 ºC |
± 2,5 ºC or ± 0,015 ./t/ |
|
|
N |
+ Nicrosil (NiCrSi) - Nisil (NiSi) |
-200 ºC / + 1200 ºC |
-3990 to + 43836 |
-40 ºC / + 1000 ºC |
± 1,5 ºC or ± 0,004 . /t/ |
-40 ºC / + 1200 ºC |
± 2,5 ºC or ± 0,0075 ./t/ |
-200 ºC / + 40 ºC |
± 2,5 ºC or ± 0,015 ./t/ |
|
Thermocouple materials are normally supplied to meet manufacturing tolerances specified in the table for temperatures above -40 ºC.
These materials, however, may not fall within the manufacturing tolerances for low temperatures
given under Class 3 for Type T, E and K thermocouples if thermocouples are required to meet limits of Class 3,as well as those of Class 1 and/or Class 2.
The purchaser shall state this, and selection of materials is usaly required.
