Copper Sheet Roll 0.5mm * 300mm Pure Copper Sheet for Railway Electrification ROHS

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO,ROHS

Model Number: C11000

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: in roll,woodencase outside

Payment Terms: L/C, T/T, Western Union

Supply Ability: 600,000kg/Month

Get Best Price
Contact Now
Specifications
Highlight:

copper metal sheet

,

thin copper sheet

Description

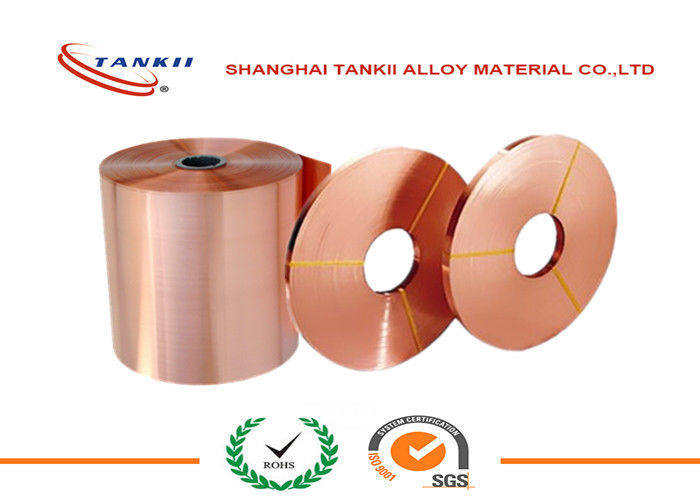

Copper Sheet Roll 0.5mm * 300mm Pure Copper Sheet for Railway Electrification ROHS

Copper Sheet Roll 0.5mm * 300mm Pure Copper Sheet for Railway Electrification ROHS



Specifications of copper strip:

1) Thickness: 0.005mm- 2.5mm

2) Width: 610mm max. Coil weight: 10ton Max
3) Trial order accept.
4) Grade: UNS:C1100 EN:Cu-ETP EUR CW004A




Chemical Composition

Cu(wt.%)>99.9%

O(wt.%)0.005-0.04





Mechanical Properties

Alloy No

   Temper

Mechanical Properties

 Tensile strength(N/mm2)

 Elongation(%)

 Vickers hardess(hv)

 GB

 JIS

 GB

 JIS

 GB

 JIS

 GB

 JIS

 GB

 JIS

    T2

  C1100

 M

 ≥195

 ≥195

 ≥30

 ≥30

 ≤70

 -

 Y4

 1/4H

 215-275

 215-285

 ≥25

 ≥20

 60-90

 55-100

 Y2

 1/2H

 245-345

 235-315

 ≥8

 ≥10

 80-110

 75-120

 Y

 H

 295-380

 ≥275

 ≥3

 -

 90-120

 ≥80

 T

 EH

 ≥350

 -

 -

 -

 ≥110

 -

 TY

 SH

 -

-





Specifications of copper strip for  Railway Electrification  :
1)Grade: C1100  C1020  C1220.
2)Chemical Composition:
C1100: Cu >99.90% C1020: Cu >99.96% C1220: Cu >99.90%; P 0.015-0.04%
3)Oxygen content:
C1100: O < 500PPM C1020: O < 50PPM
4)Temper: O, 1/4H, 1/2H, H
O : HV<70; 1/4H :HV 65-85;  1/2H :HV 80-100; H :HV >100
5)Electric 20°CConductivity:
C1100/C1020 >97% ;C1220 >80%



Product Ranges of copper strip and brass strip:

Standard Range of Coppers and Copper Alloys Manufactured
coppers CDA 10200,11000 and 12200 Best Sales Item
Radiator CDA 14000 series
Leadframe CDA 19210 new and best
Plain Brassed CDA 20000 series
Phosphor Bronzes C51000, C51010, C51110, C52100, and C52400
Nickel Silvers CDA 73000 to 77000





Available Thickness and Width Ranges
Thickness Range Width Range
inch mm inch mm
min. max. min. max. min. max. min. max.
0.0013 0.0040 0.0350 0.1000 0.5 13 12.5 325
0.0040 0.0200 0.1000 0.5000 0.5 24 12.5 610
0.0200 0.0320 0.5000 0.8000 0.5 24 12.5 610
0.0320 0.0700 0.8000 1.8000 0.5 24 12.5 610
0.0700 0.1000 1.8000 2.5000 1 24 25
610




Features for copper strip:
1)  Enjoy good electricity and heat conduction
2)  Elongation
3)  Good corrosion-resistance
4)  Climate-hardiness





Applications for copper strip:

1)  Commutators
2)  Traction Motors
3)  Earthening
4)  Switchgear Products
5)  Railway Electrification
6)  Electrical Components
7)  Panel Boards
8)  Power Transformers
9)  Connectors
