Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO,ROHS
Model Number: C11000
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: in roll,woodencase outside
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600,000kg/Month

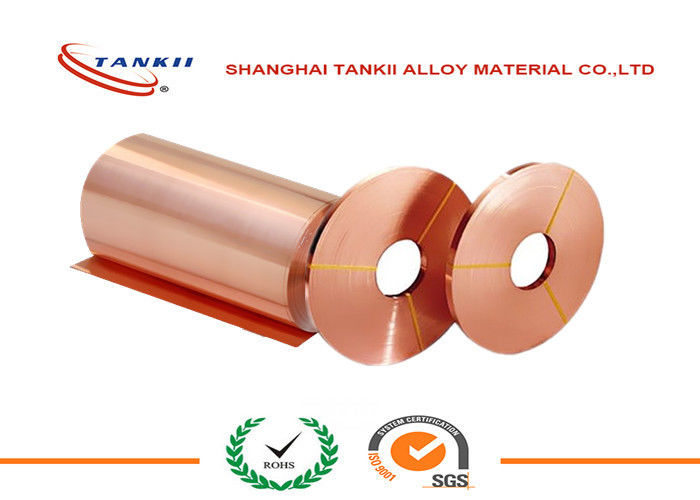

Copper Metal Sheet 0.1mm * 56mm Pure Copper Foil Climate-hardiness
| Specifications of copper strip: | |
| Thickness | 0.005mm- 2.5mm |
| Width& Coil weight | 610mm max&10ton Max |
| Trial order | accept. |
| Grade: | UNS:C1100 EN:Cu-ETP EUR CW004A |
| Chemical Composition | |
| Cu(wt.%) | >99.9% |
| O(wt.%) | 0.005-0.04 |
Mechanical Properties
|
Alloy No |
Temper |
Mechanical Properties |
|||||||
|
Tensile strength(N/mm2) |
Elongation(%) |
Vickers hardess(hv) |
|||||||
|
GB |
JIS |
GB |
JIS |
GB |
JIS |
GB |
JIS |
GB |
JIS |
|
T2 |
C1100 |
M |
O |
≥195 |
≥195 |
≥30 |
≥30 |
≤70 |
- |
|
Y4 |
1/4H |
215-275 |
215-285 |
≥25 |
≥20 |
60-90 |
55-100 |
||
|
Y2 |
1/2H |
245-345 |
235-315 |
≥8 |
≥10 |
80-110 |
75-120 |
||
|
Y |
H |
295-380 |
≥275 |
≥3 |
- |
90-120 |
≥80 |
||
|
T |
EH |
≥350 |
- |
- |
- |
≥110 |
- |
||
|
TY |
SH |
- |
- |
- |
- |
- |
- |
||
Features for copper strip:
1) Enjoy good electricity and heat conduction
2) Elongation
3) Good corrosion-resistance
4) Climate-hardiness
Applications for copper strip:
1) Commutators
2) Traction Motors
3) Earthening
4) Switchgear Products
5) Railway Electrification
6) Electrical Components
7) Panel Boards
8) Power Transformers
9) Connectors
