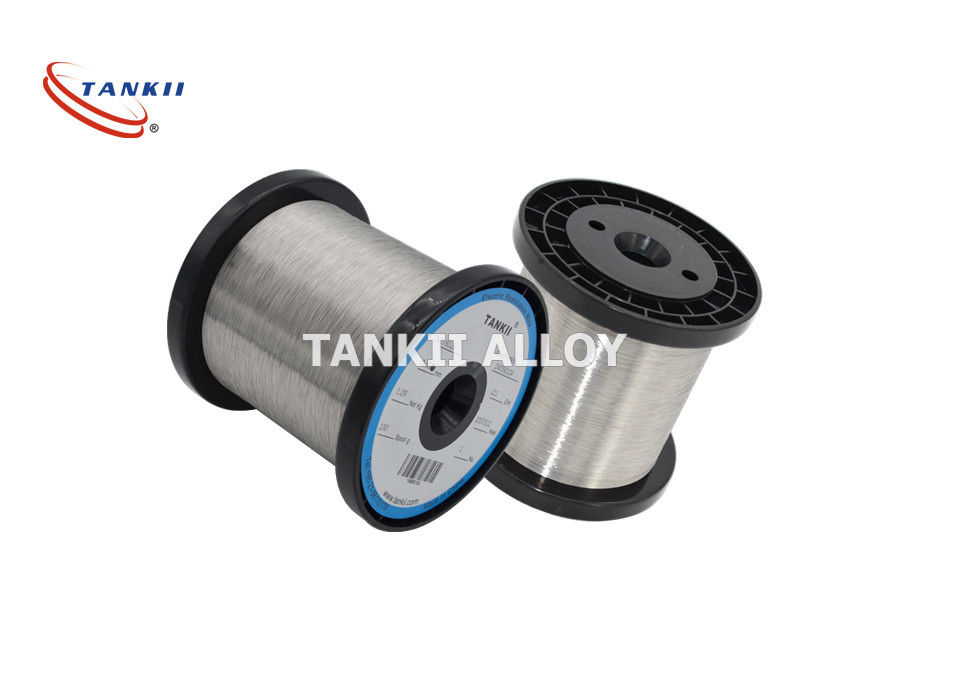

NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface

NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface
NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface

Large Image :  NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: N
Payment & Shipping Terms:
Minimum Order Quantity: 0.1kg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: Within 3 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface

Description
Diameter: 0.16mm In Stock Material: NiCrSi-NiSiMg
Surface: Bright Wire Type: Solid Wire
Insulation: Bare Wire Class: IEC 584-1
Leading Time: Stock Wires MOQ: One Spool/ 1M
High Light:

N Type Solid Thermocouple Bare Wire

,

0.16mm Solid Thermocouple Bare Wire

,

Bright Surface Thermocouple Bare Wire



NN NP 0.16mm Stock Size N Type Solid Thermocouple Wire Price



Quick Description

Type N thermocouple wire has greater emf stability and corrosion resistance than Type K, however the combination develops a lower emf output and cannot, therefore, be directly substituted.



The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K. Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K. The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon. The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon.





Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.



Type N Temperature Range:

  • Maximum continuous operating temperature: up to 2,300F (1,260C)
  • Short term use: 2,336F (1,280C)
  • Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)
  • Extension wire, 32 to 392F (0 to 200C)

Type N Accuracy (whichever is greater):
  • Standard: +/- 2.2C or +/- .75%
  • Special Limits of Error: +/- 1.1C or 0.4%

Consideration for bare wire type E thermocouple applications:

  • The type N holds up better to oxidation at high temperatures when compared to the type K.

Characteristics:

The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,

such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.



NN NP 0.16mm Stock Size N Type Solid Thermocouple Wire Price


Thermocouple strips, thermocouple connectors are available.

Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation



NN NP 0.16mm Stock Size N Type Solid Thermocouple Wire Price


N Type Thermocouple Stranded Wire's 19/0.16mm 200 ℃ and 350℃​ in Stock 66kg
Type Tensile Strength Elongation EMF
      (vs Platinum)(mV)
  N/mm² % 100℃ 200℃ 400℃
NNX 625 25 0.969 1.951 /
NPX 692 26.7 1.800 3.968 /
NN 710 27 0.987 1.989 4.066
NP 615 30 1.789 3.947 8.894


Application:N type thermocouple

NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface 0



N  type extension cable:

NN NP 0.16mm N Type Solid Thermocouple Bare Wire Bright Surface 1



 Delivery and Packing of thermocouple wire:

1. Packaging Details : 3900~5000m per roll with plastic film wrapped and carton package.
2. Leading time : within 3 days
3. Delivery: By express / air / sea

NN NP 0.16mm Stock Size N Type Solid Thermocouple Wire Price

Welcome to call me or email to me for more information on N type thermocouple stranded wire 19/0.16mm or solid wire 0.16mm.
