Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: Pure Copper Sheet
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: 15-25$
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Width: |
As Required |
Application: |
Furnace Heating |
Shape: |
Sheet |
Alloy Or Not: |
Alloy |
Material: |
Copper |
Surface: |
Polished |
Type: |
Copper Sheeting |
Color: |
As Required |
Width: |
As Required |
Application: |
Furnace Heating |
Shape: |
Sheet |
Alloy Or Not: |
Alloy |
Material: |
Copper |
Surface: |
Polished |
Type: |
Copper Sheeting |
Color: |
As Required |

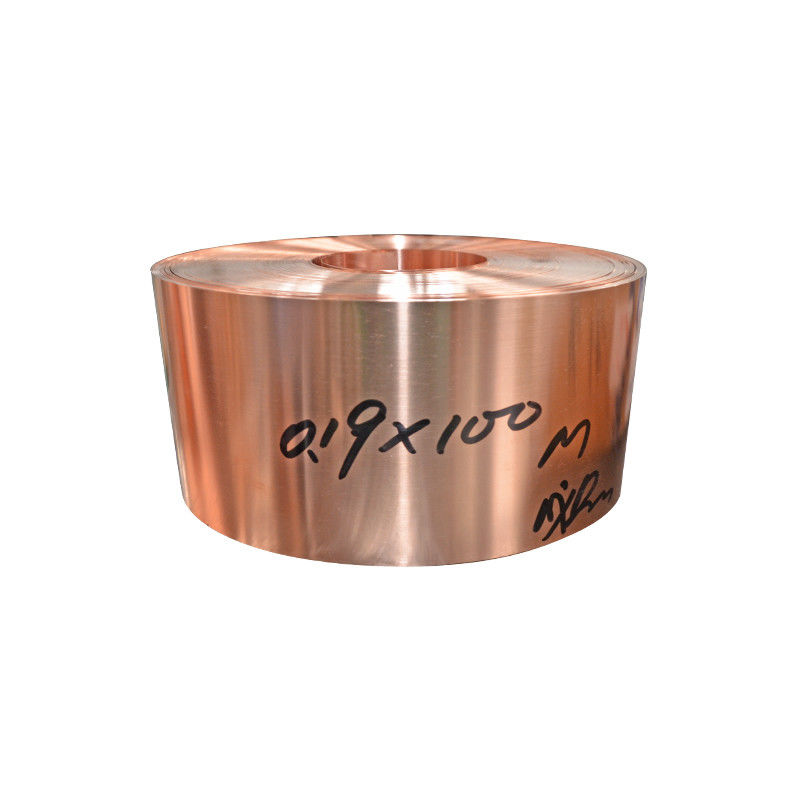

High pressure resistance C17500 Copper sheet DIN2.1285
Unusual wear resistance
High property levels
High yield strength
High hardness values
Beryllium Copper Chemical Composition
| ASTM | Cu | Ni | Co | Be |
| C17200 | Balance | 1 | 1 | 1.80-2.10 |
| C17000 | Balance | 1 | 1 | 1.60-1.85 |
| C17300 | Balance | 1 | 1 | 1.85-2.10 |
| ASTM | Cu | Ni | Co | Be |
| C17500 | Balance | - | 2.4-2.7 | 0.4-0.7 |
| C17510 | Balance | 1.4-2.2 | 0.3 | 0.2-0.6 |
beryllium copper C17200
Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition
| Element | Component |
| Be | 1.85-2.10% |
| Co+Ni | 0.20% Min |
| Co+Ni+Fe | 0.60% Max. |
| Cu | Balance |
Typical Physical Properties
| Density (g/cm3) | 8.36 |
| Density before age hardening (g/cm3 | 8.25 |
| Elastic Modulus (kg/mm2 (103)) | 13.40 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)) | 0.25 |
| Melting Range (°C) | 870-980 |
Mechanical property:(before heat treatment)
| status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity ( IACS%) |
Elongation (%) |
| H | 70-85 | 210-240 | 22 | 2-8 |
| 1/2H | 60-71 | 160-210 | 22 | 5-25 |
| 0 | 42-55 | 90-160 | 22 | 35-70 |
Mechanical property:(after heat treatment)
| status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity (IACS%) |
Elongation (%) |
| H | 130-151 | 380-420 | 22 | 1-5 |
| 1/2H | 126-147 | 370-410 | 22 | 2-7 |
| 0 | 112-135 | 350-339 | 22 | 3-11 |
Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
Company Profile
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
