Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: Ni200 Ni201
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Application: |
Industry |
Conductor Type: |
Solid |
Conductor Material: |
Copper |
Surface: |
Bright |
Material: |
Fine Raw Material |
Color: |
As Required |
Standard: |
ASTM |
Diameter: |
0.1-10mm |
Shape: |
Wire |
MOQ: |
5KG |
Application: |
Industry |
Conductor Type: |
Solid |
Conductor Material: |
Copper |
Surface: |
Bright |
Material: |
Fine Raw Material |
Color: |
As Required |
Standard: |
ASTM |
Diameter: |
0.1-10mm |
Shape: |
Wire |
MOQ: |
5KG |
Product Description

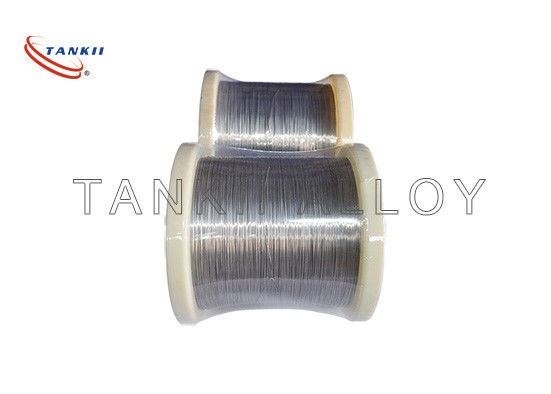

1.63mm Thermocouple wire bare wire ( type K )
NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
Detailed Parameter
|
Chemical Composition
|
|||||
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
Ni |
Cr |
Si |
|||
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
|
Working Temperature
|
||
Diameter/mm |
Long time Working temperature /ºC |
Short period Working temperature /ºC |
0.3 |
700 |
800 |
0.5 |
800 |
900 |
0.8,1.0 |
900 |
1000 |
1.2,1.6 |
1000 |
1100 |
2.0,2.5 |
1100 |
1200 |
|
3.2
|
1200 |
1300 |
Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting
Packing & Delivery
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: By sea/ air. About 7days, as the order quantity.
