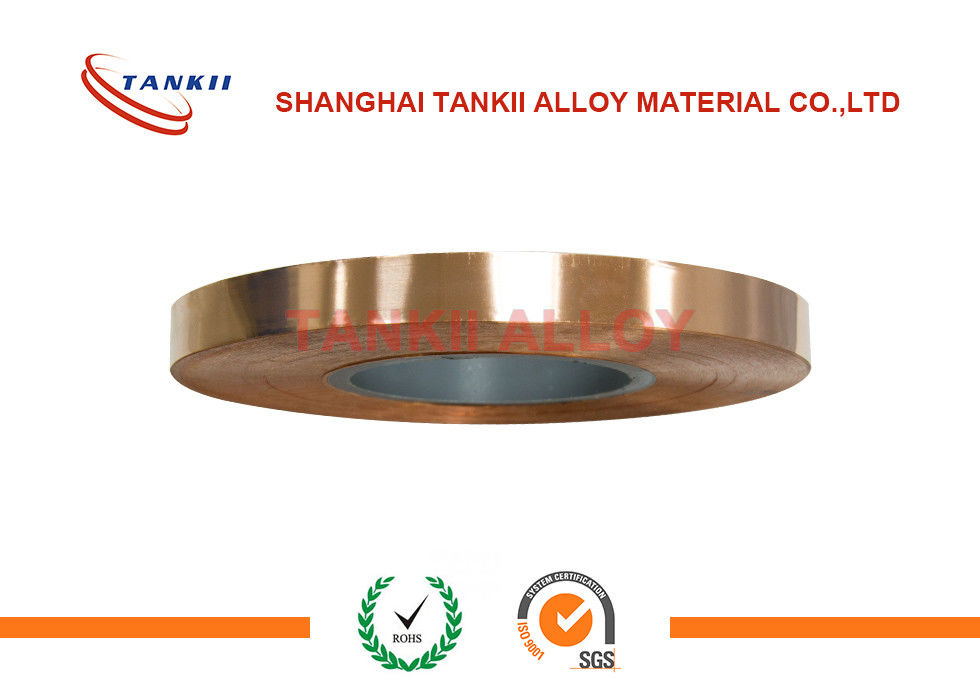

C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: DIN, ASTM, JIS

Model Number: copper alloy

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 25days

Payment Terms: Western Union, T/T, D/P, D/A, L/C

Supply Ability: 1000T/month

Get Best Price
Contact Now
Specifications
Highlight:

Beryllium Copper Alloy Strips

,

C1720 Copper Alloy Strips

,

0.8mm Thick Copper Alloy Strips

Product Name:
C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width
Material:
Copper
Density:
8.4(g/cm3)
Sample:
Small Order Accepted
Surface:
Bright
Colour:
Bronze
Elongation:
30%
Other Name:
CB101
Product Type:
Copper Alloy
MOQ:
20KG
Product Name:
C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width
Material:
Copper
Density:
8.4(g/cm3)
Sample:
Small Order Accepted
Surface:
Bright
Colour:
Bronze
Elongation:
30%
Other Name:
CB101
Product Type:
Copper Alloy
MOQ:
20KG
Description
C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width

C1720 Beryllium copper alloy strips 0.8mm thick 200mm width
Copper-beryllium alloys are mainly based on copper with a beryllium addition. High strength beryllium copper alloys contain 0.4-2% of beryllium with about 0.3 to 2.7% of other alloying elements such as nickel, cobalt, iron or Lead. The high mechanical strength is achieved by precipitation hardening or age hardening.
Beryllium Copper is a copper alloy with the optimum combination of mechanical and physical properties such as tensile strength, fatigue strength, performance under elevated temperatures, electrical conductivity, bending formability and corrosion resistance. Beryllium Copper is widely used as contact springs in various applications like connectors, switches, relays, etc.


Chemical Composition

ElementComponent
Be1.85-2.10%
Co+Ni0.20% Min
Co+Ni+Fe0.60% Max.
CuBalance



Typical Physical Properties



Density (g/cm3)8.36
Density before age hardening (g/cm38.25
Elastic Modulus (kg/mm2 (103))13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C)17 x 10-6
Thermal Conductivity (cal/(cm-s-°C))0.25
Melting Range (°C)870-980

Mechanical property (Before Hardening treatment) :


statusTensile strength
(Kg/mm3)
Hardness
(HV)
Conductivity
( IACS%)
Elongation
(%)
H70-85210-240222-8
1/2H60-71160-210225-25
042-5590-1602235-70


After Hardening treatment

BrandTensile strength
(Kg/mm3)
Hardness
(HV)
Conductivity
(IACS%)
Elongation
(%)
C17200-TM061070-1210330-390≥17≥4


Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
Our product are in the form of wire, ribbon, strip, coil.
Round wire
Ribbon (flat wire)
Strip / foil
Stranded wire
Sheet / plate
Applications
Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting, machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories, stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings, worm gear etc.



Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.

C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width 0C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width 1C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width 2C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width 3C1720 Beryllium Copper Alloy Strips 0.8mm Thick 200mm Width 4
