C17200 Beryllium Copper Alloy Aging Hardening Treatment

C17200 Beryllium Copper Alloy Aging Hardening Treatment
C17200 Beryllium Copper Alloy Aging Hardening Treatment C17200 Beryllium Copper Alloy Aging Hardening Treatment C17200 Beryllium Copper Alloy Aging Hardening Treatment C17200 Beryllium Copper Alloy Aging Hardening Treatment

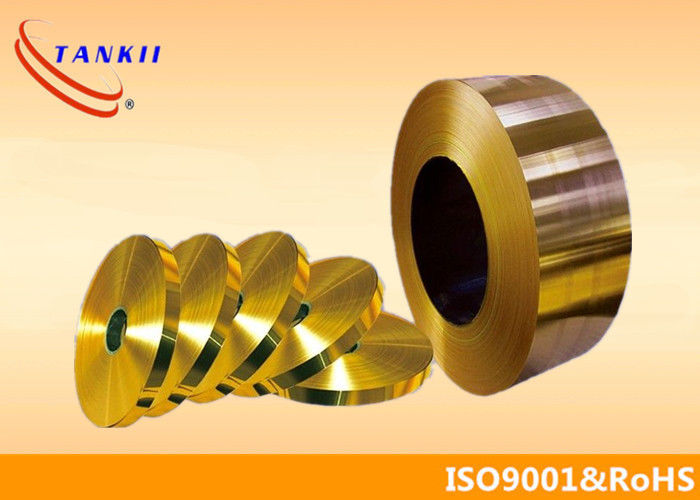

Large Image :  C17200 Beryllium Copper Alloy Aging Hardening Treatment

Product Details:
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: C17200
Payment & Shipping Terms:
Minimum Order Quantity: 200kg
Price: negotiable
Packaging Details: in Roll, in Woodencase Outside
Delivery Time: 8-20 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 200+ton+month

C17200 Beryllium Copper Alloy Aging Hardening Treatment

Description
Type: Copper Strips Another Name: CB101
Elongation: 30%
High Light:

C17200 Beryllium Copper Alloy

,

Aging Hardening Beryllium Copper Alloy

,

Anti Corrosion Beryllium Copper Alloy

C17200 Aging hardening treatment Beryllium Copper Strip

copper beryllium manufacturer
Unusual wear resistance
High property levels
High yield strength
High hardness values


C17200 TM04 beryllium copper strip

Beryllium Copper Chemical Composition

ASTM Cu Ni Co Be
C17200 Balance 0.1 0.1 1.80-2.10
C17000 Balance 1 1 1.60-1.85
C17300 Balance 1 1 1.85-2.10
ASTM Cu Ni Co Be
C17500 Balance - 2.4-2.7 0.4-0.7
C17510 Balance 1.4-2.2 0.3 0.2-0.6


beryllium copper C17200

Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

Chemical Composition

Element Component
Be 1.85-2.10%
Co+Ni 0.20% Min
Co+Ni+Fe 0.60% Max.
Cu Balance


Typical Physical Properties

Density (g/cm3) 8.36
Density before age hardening (g/cm3 8.25
Elastic Modulus (kg/mm2 (103)) 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)) 0.25
Melting Range (°C) 870-980


Mechanical property (Before Hardening treatment) :

status Tensile strength
(Kg/mm3)
Hardness
(HV)
Conductivity
( IACS%)
Elongation
(%)
H 70-85 210-240 22 2-8
1/2H 60-71 160-210 22 5-25
0 42-55 90-160 22 35-70


After Hardening treatment

Brand Tensile strength
(Kg/mm3)
Hardness
(HV)
Conductivity
(IACS%)
Elongation
(%)
C17200-TM04 93-1030 280-340 ≥17 ≥9


Features

1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

Our product are in the form of wire, ribbon, strip, coil.

Round wire
Ribbon (flat wire)
Strip / foil
Stranded wire
Sheet / plate
Features


1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

PRODUCT APPLICATION

Applications

Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting

machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,

stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,

worm gear etc.

Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
