Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: pure copper
Payment & Shipping Terms
Minimum Order Quantity: 30kg
Packaging Details: in Roll, Wooden Case Outside
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 200+ton+month
Material: |
Pure Copper |
Type: |
Copper Strip |
Surface: |
Bright |
HS Code: |
74101100 |
Thickness: |
0.01-2.5mm |
Width: |
1-610mm |
Material: |
Pure Copper |
Type: |
Copper Strip |
Surface: |
Bright |
HS Code: |
74101100 |
Thickness: |
0.01-2.5mm |
Width: |
1-610mm |

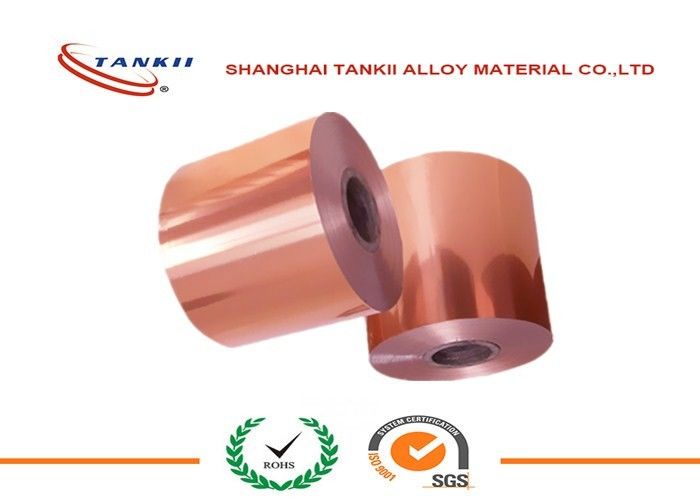

C1100 Pure Copper Foil / Strip for Transformer
Cu%99.90 C11000 Cu ETP
Min thickness:0.001mm
little order can accept
Specification of red copper strip we supply:
Strip: thick:0.15-3.0mm width:610mm
Plate:thick:0.5-3mm width:610mm Length:2500mm
| Quality ltems | General Technical Terms | ||||||
| 1/3 OZ/ft 2 (12μ m) | 1/2 OZ/ft 2 (18μ m) | 3/4OZ/ft 2 25μ m | 1 OZ/ft 2 35μ m | 7/5 OZ/ft 2 (1.4μ m) | 2 OZ/ft 2 (70μ m) | ||
| Area Weight(g/) | 102-112 | 153 | 230 | 305 | 435 | 610 | |
| Tensile Strenght(kg/mm 2) | STD-E | ≥ 205 | ≥ 205 | ≥ 235 | ≥ 275 | ≥ 275 | ≥ 275 |
| HD-E | ≥ 17 | ≥ 103 | ≥ 156 | ≥ 205 | ≥ 205 | ≥ 205 | |
| Elongation(%) | STD-E | ≥ 2 | ≥ 205 | ≥ 3 | ≥ 3 | ≥ 3 | ≥ 3 |
| HD-E | ≥ 2 | ≥ 2.5 | ≥ 3 | ≥ 3 | ≥ 5 | ≥ 5 | |
| Surface Roughness(μ m) | Shiny Surface Ra | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 |
| Matte Surface Rz | 5 | 6 | 10 | 10 | 12 | 12 | |
| Peel Strength(Kg/cm) | ≥ 1.1 | ≥ 1.2 | ≥ 1.8 | ≥ 1.8 | ≥ 2.1 | ≥ 2.1 | |
| Leakage Poins(points/) | ≤ 5 | No | |||||
| High Temperature Anti-Oxidization Performance | Treat in the 200 constant temperature for 60 minutes, there is no oxidation stain | ||||||
