Colorful Enameled Varnish Wire

Product Details

Place of Origin: Shanghai, China

Brand Name: Tankii

Certification: ISO9001:2015

Model Number: resistance alloy

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiated price

Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

enamelled copper wire

,

enamel magnet wire

Size:
0.1mm-1.5mm
Insulation:
Polyester, Polyimide, Polyurethane
Type:
I, II
Temperature Class:
130/155/180
Application:
Transformer, Instrument
Size:
0.1mm-1.5mm
Insulation:
Polyester, Polyimide, Polyurethane
Type:
I, II
Temperature Class:
130/155/180
Application:
Transformer, Instrument
Description

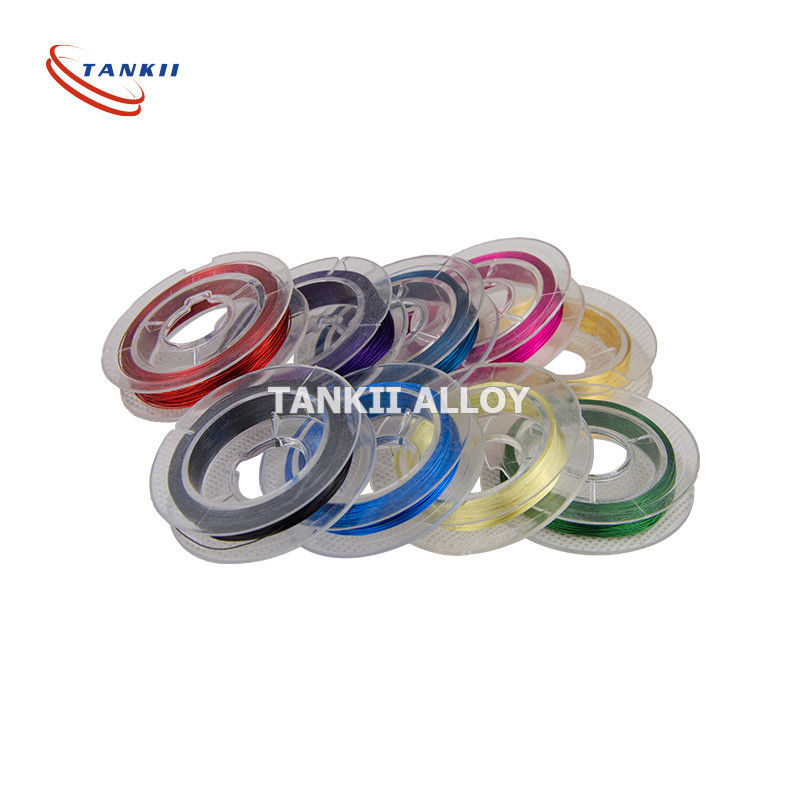

Colorful Enameled Varnish Wire

0.1mm-1.5mm Colorful Enameled Varnish Wire for Instrument Decoration



Magnet wire or enameled wire is a copper or aluminum wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, generators, speakers, hard disk head actuators, electromagnets, electric guitar pickups and other applications that require tight coils of insulated wire.

The wire itself is most often fully annealed, electrolytically refined copper. Aluminum magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.



Enameled Type Polyester Modified Polyester polyester-imide Polyamide-imide polyester-imide /Polyamide-imide
Insulation Type PEW/130 PEW(G)/155 EIW/180 EI/AIW/200 EIW(EI/AIW)220
Thermal class 130, CLASS B 155, CLASS F 180, CLASS H 200, CLASS C 220, CLASS N
Standard

IEC60317-0-2

IEC60317-29

MW36-A

IEC60317-0-2

IEC60317-29MW36-A

IEC60317-0-2

IEC60317-29

MW36-A

IEC60317-0-2

IEC60317-29

MW36-A

IEC60317-0-2

IEC60317-29

MW36-A





Type



Like other wire, magnet wire is classified by diameter (AWG number, SWG or millimeters) or area (square millimeters), temperature class, and insulation class.


Cross-sectional view of AWG33 magnet wire taken using a scanning electron microscope
Breakdown voltage depends on the thickness of the covering, which can be of 3 types: Grade 1, Grade 2 and Grade 3. Higher grades have thicker insulation and thus higher breakdown voltages.

The temperature class indicates the temperature of the wire at which it has a 20,000 hour service life. At lower temperatures the service life of the wire is longer (about a factor of 2 for every 10 °C lower temperature). Common temperature classes are 105 °C, 130 °C, 155 °C, 180 °C and 220 °C.



Copper windings in a miniaturized electric motor
Electric motors convert electrical energy into mechanical motion, usually through the interaction of magnetic fields and current-carrying conductors. Electric motors are found in numerous diverse applications, such as fans, blowers, pumps, machines, household appliances, power tools, and disk drives. The very largest electric motors with ratings in the thousands of kilowatts are used in such applications as the propulsion of large ships. The smallest motors move the hands in electric wristwatches.

Electric motors contain coils to produce the required magnetic fields. For a given size of motor frame, high conductivity material reduces the energy loss due to coil resistance. Poorer conductors generate more waste heat when transferring electrical energy into kinetic energy.

Because of its high electrical conductivity, copper is commonly used in coil windings, bearings, collectors, brushes, and connectors of motors, including the highest quality motors. Copper’s greater conductivity versus other materials enhances the electrical energy efficiency of motors. For example, to reduce load losses in continuous-use induction-type motors above 1 horsepower, manufacturers invariably use copper as the conducting material in windings. Aluminium is an alternate material in smaller horsepower motors, especially when motors are not used continuously.

One of the design elements of premium motors is the reduction of heat losses due to the electrical resistance of conductors. To improve the electrical energy efficiency of induction-type motors, load loss can be reduced by increasing the cross section of copper coils. A high efficiency motor will usually have 20% more copper in the stator winding than its standard counterpart.

Early developments in motor efficiency focused on reducing electrical losses by increasing the packing weight of stator windings. This made sense since electrical losses typically account for more than half of all energy losses, and stator losses account for approximately two‐thirds of electrical losses.

There are, however, disadvantages in increasing the electrical efficiency of motors through larger windings. This increases motor size and cost, which may not be desirable in applications such as appliances and in automobiles.
