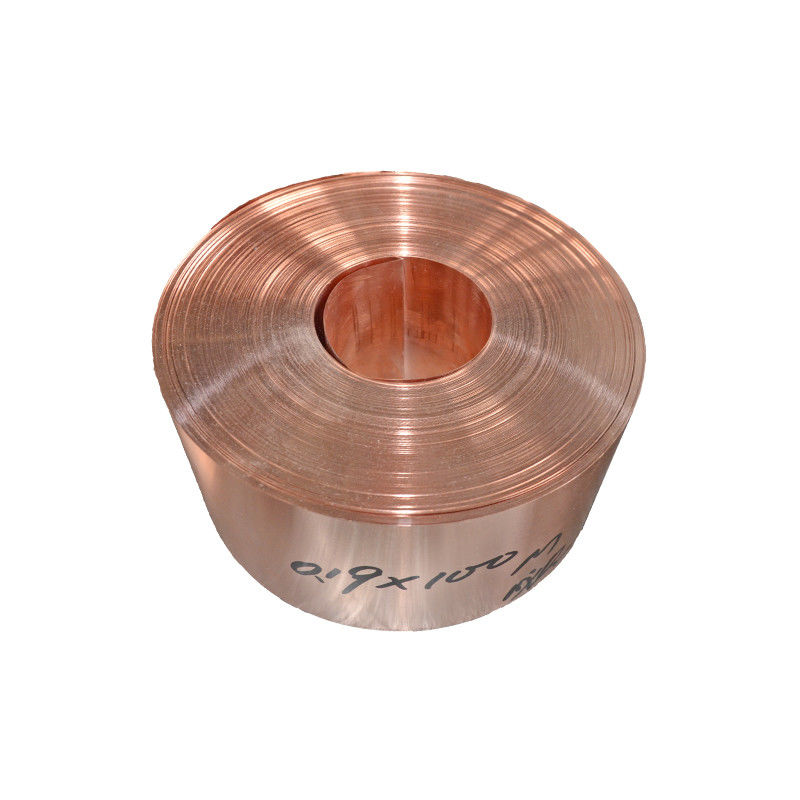

C5191 Tin Phosphor Bronze Strip For Electronics Lead Frames

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: C5191 / C51900

Payment & Shipping Terms

Minimum Order Quantity: 100KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per Month

Get Best Price
Contact Now
Specifications
Highlight:

C5191 Tin Phosphor Bronze Strip

,

0.01mm Phosphor Bronze Strip

,

ASTM Phosphor Bronze Strip

Material:
Phosphor Bronze Alloy
Surface:
Bright / Polished
Thickness:
0.01mm Min.
Width:
300mm Max.
Shape:
Wire/rod/strip/plate/coil/Tape
Standard:
ASTM/GB
Material:
Phosphor Bronze Alloy
Surface:
Bright / Polished
Thickness:
0.01mm Min.
Width:
300mm Max.
Shape:
Wire/rod/strip/plate/coil/Tape
Standard:
ASTM/GB
Description
C5191 Tin Phosphor Bronze Strip For Electronics Lead Frames

Tin Phosphor Bronze Plate/Strip (C5191/C5210/C5102/C5212) for Electronics / Lead Frames



Technology: Extrusion/Sand casting/drawing/Hot rolling/Turn-milling

Grade: C54400 / C51900/ C52100/ C51100 / C5101/ C5191 /CuSn4Zn2/ CuSn6 /CuSn4 /CuSn8 / QSn4-3/ QSn6.5-0.1/ and so on

Standard:ASTM,AISI,EN,BS,JIS,GB

Size:Thickness:0.2~200mm,Width:20~2500mm. Length
10mm~12000mm, or as required.

Application:copper sheet can be made to do all sorts of deep drawing and bending stress components,such as manufacturing pins,rivets,gasket,nuts,conduits,the barometer spring,screen,
radiator parts, etc.

Package: Wooden pallet or plywood case.

These plate is processed as the standard strictly, the surface is very bright and smooth, no stomatal sand holes and cracks.

Copper Alloy No. Composition.%
Tin Phosphorus Iron, max Lead Zinc nickel Copper
QSn8-0.3 7.0-9.0 0.03-0.35 0.1 0.05max 0.20max 0.20max Remainder



Copper Alloy UNS No. Composition,%
Tin Phosphorus Iron,max Lead Zinc Copper
C52100 7.0-9.0 0.03-0.35 0.10 0.05max 0.20max Remainder



Product Brass Coil,Brass Strips,Bronze coil,Bronze Strip.
Material Qsn6.5-0.1,Qsn8-0.3,C5191,C5210,C5102,C51000,etc.Or as required.
Standard ASTM,AISI,EN,BS,JIS,GB/T,BSI,AS/NZS,ISO,etc.
Surface-mount mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
Thickness 0.01-1.0mm
Hardness 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc.
Shape Square,Rectangular.or in roll.
Width 1-300mm
Length 1000-2000m,or as required.
Package Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box .
Application ·Well used in welding.
·Be used in the manufacture of precision instruments,etc.
·Ship parts.
·with extremely good plasticity
·High strength.
·Good cutting performance.
Container Size 20Gp - 2.352(width) *2.385 ( Height ) * 5.90 ( Inside length ) Meter
40Gp - 2.352(width) *2.385 ( Height ) * 11.8 ( Inside length ) Meter
40HQ - 2.352(width) *2.69 ( Width ) * 5.90 ( Inside length ) Meter
Export Region America , Canada ,Japan , England , Saudi Arab , India , Singapore , Korea , Australia , Brazil , Argentina , Mexico , Russia , Turkey , Greece , France , Germany , Spain
Payment terms T/T , L/C , West Union .
Delivery time 1 days in stock , if not within 7 days
Port of shipment Tianjin Xingang port , Qingdao port , Shanghai port , ningbo port , Guangzhou port
Trade Terms FOB , CFR , CIF etc.



C5191 Tin Phosphor Bronze Strip For Electronics Lead Frames 0
