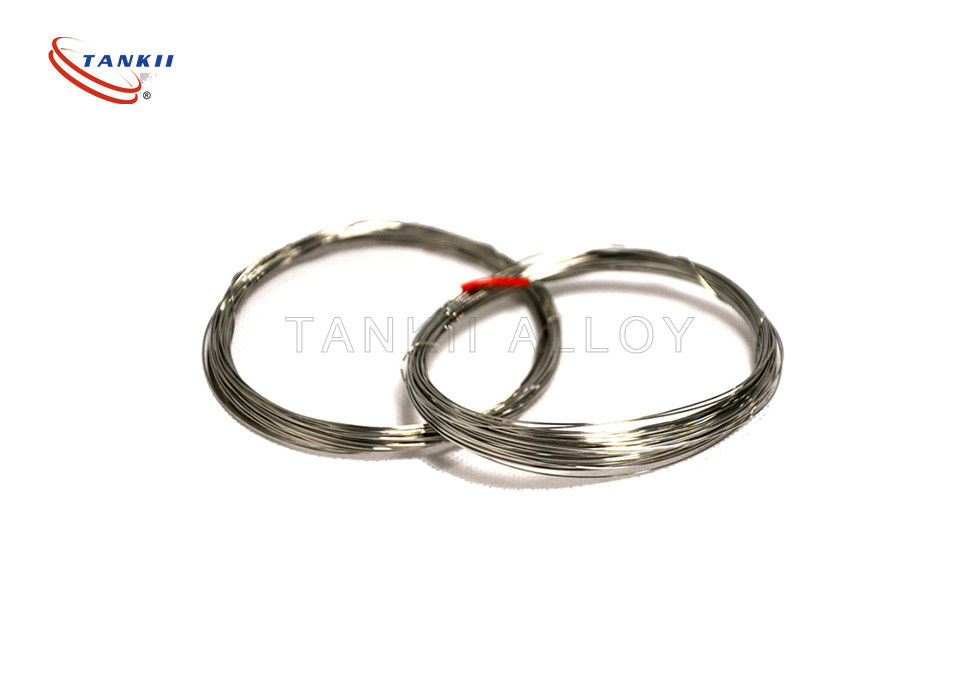

0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring

0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring
0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring 0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring 0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring 0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring

Large Image :  0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: S/R/B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 10Ton per year

0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring

Description
Material: Pt Rh Alloy Surface: Bright
Diameter: 0.1~5.0mm Wire Type: Singlewire
Insulation: No Wire Class: IEC Class I
Leading Time: 5~10 Days After Getting The Payment Application: Thermocouple,temperature Measurement
Standard: ANSI, IEC584 Item: 0.5mm S/B/R Type Thermocouple Wire Bare Wire With Used For High Temperature Measuring
High Light:

thermocouple lead wire

,

high temperature thermocouple wire

0.5mm S/B/R Type Thermocouple Wire Bare Wire With Used For High Temperature Measuring


Introduction:

Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.
Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples
Platinum rhodium thermocouple(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting






Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.


Tankii products conform to the standards of IEC584 -1and IEC-2.


Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii noble metal thermocouple alloy wire with class 1 and 2 are available.

Application Range of Tankii  thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation

0.5mm S/B/R Type Thermocouple Wire Bare Wire With Used For High Temperature Measuring


Tankii noble metal Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t



Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.


A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.







 Delivery and Packing of thermocouple wire:

1. Packaging Details : Carton box.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring 0
0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring 1
0.5mm S/B/R Type Thermocouple Bare Wire For High Temperature Measuring 2



Welcome to call me or email to me for more information on S /B/R  type thermocouple wire, Thermocouple cable, thermocouple flat wire, thermocouple strip.
