Custom Made Thermocouple Alloy Wire Packed In Roll With 1.5mm 2.0mm 2.5mm

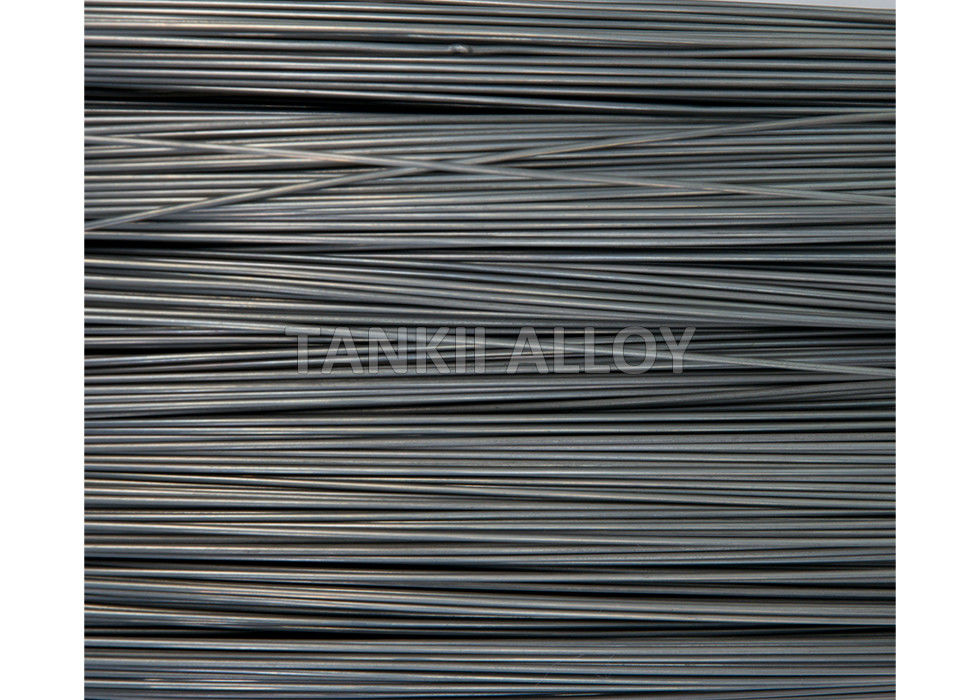

Thermocouple Alloy Wire Class One Packed In Roll With 1.5mm 2.0mm 2.5mm Used For Thermocouple Sensor
Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
Application Range of Tankii thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
Thermocouple Alloy Wire Class One Packed In Roll With 1.5mm 2.0mm 2.5mm Used For Thermocouple Sensor
Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Tankii products conform to the standards of IEC584 -1and IEC-2.
Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.
Thermocouple Alloy Wire Class One Packed In Roll With 1.5mm 2.0mm 2.5mm Used For Thermocouple Sensor
More parameters of Tankii thermocouple wires:
Tankii Thermocouple Type and Temperature Range
|
Thermocouple type and index
|
Measurement Range
℃
|
|
Type
|
Index
|
|
PtRh30-PtRh6
|
B |
600~1700 |
|
PtRh13-Pt
|
R |
0~1600 |
|
PtRh10-Pt
|
S |
0~1600 |
|
NiCr-NiSi
|
K |
-200~1300 |
|
NiCr-CuNi (constantan)
|
E |
-200~900 |
|
Fe-CuNi (constantan)
|
J |
-40~750 |
|
Cu-CuNi (constantan)
|
T |
-200~350 |
|
NiCrSi-NiSi
|
N |
-200~1300 |
The allowable grade and Tolerance are obtained at 0℃
|
Thermocouple
Type
|
Grade |
Temperature range
℃
|
Allowable Tolerance /℃ |
| Type B |
Ⅱ |
600~1700 |
±0.25% t |
| Ⅲ |
600~800 |
±4 |
| 800~1700 |
±0.5%t |
| Type R(S) |
Ⅰ |
0~1100 |
±1 |
| 1100~1600 |
±[1+(t－1100) ×0.3％] |
| Ⅱ |
0~600 |
±1.5 |
| 600~1600 |
±0.25% t |
| Type K and Type N |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| Type E |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| Type J |
Ⅰ |
-40~750 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~750 |
±2.5℃ or ±0.75%t |
| Type T |
Ⅰ |
-40~350 |
±0.5℃ or ±0.4%t |
| Ⅱ |
-40~350 |
±1.0℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±1.0℃ or ±1.5%t |
Product details:
Delivery and Packing of thermocouple wire:
1. Packaging Details : DIN spools with plastic film wrapped and carton package.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
Thermocouple Alloy Wire Class One Packed In Roll With 1.5mm 2.0mm 2.5mm Used For Thermocouple Sensor
Thermocouple Alloy Wire Class One Packed In Roll With 1.5mm 2.0mm 2.5mm Used For Thermocouple Sensor
Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple flat wire, thermocouple strip.
