Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Standard: |
ANSI, IEC584 |
Application: |
Thermocouple,temperature Measurement |
Tolerance: |
IEC Class 1 |
Diameter: |
Customized |
Delivery Time: |
5~10 Days After Getting The Payment |
Item: |
Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin |
Conductor Type: |
Stranded |
Shape: |
Wire On Bobbin |
Standard: |
ANSI, IEC584 |
Application: |
Thermocouple,temperature Measurement |
Tolerance: |
IEC Class 1 |
Diameter: |
Customized |
Delivery Time: |
5~10 Days After Getting The Payment |
Item: |
Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin |
Conductor Type: |
Stranded |
Shape: |
Wire On Bobbin |

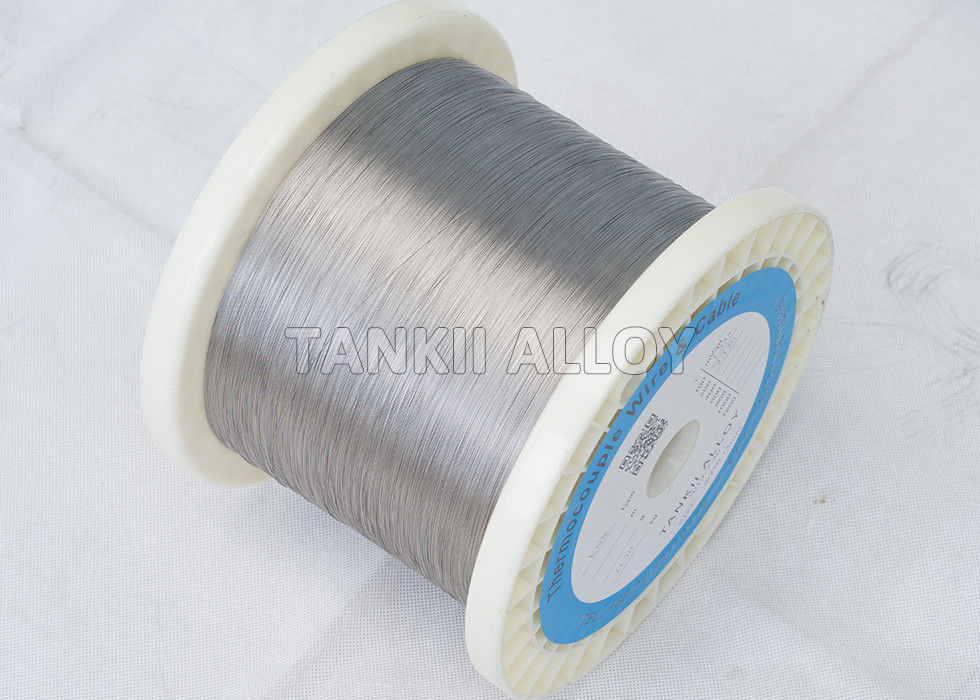

Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin
Tankii NiCrSi-NiSi thermocouple wire type N
The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K.
Shanghai Tankii Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K.
Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin
Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Tankii products conform to the standards of IEC584 -1and IEC-2.
|
Thermocouple type and index |
Measurement Range ℃ |
|
|
Type |
Index |
|
|
|
B | 600~1700 |
|
|
R | 0~1600 |
|
|
S | 0~1600 |
|
|
K | -200~1300 |
|
|
E | -200~900 |
|
|
J | -40~750 |
|
|
T | -200~350 |
|
|
N | -200~1300 |
The allowable grade and Tolerance are obtained at 0℃
|
Thermocouple |
Grade |
Temperature range |
Allowable Tolerance /℃ |
| Type B | Ⅱ | 600~1700 | ±0.25% t |
| Ⅲ | 600~800 | ±4 | |
| 800~1700 | ±0.5%t | ||
| Type R(S) | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] | ||
| Ⅱ | 0~600 | ±1.5 | |
| 600~1600 | ±0.25% t | ||
| Type K and Type N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~750 | ±2.5℃ or ±0.75%t | |
| Type T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
| Ⅱ | -40~350 | ±1.0℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
Product details:
