Tankii Thermocouple Bare Wire , Type K J E T Bare Wire 0.2mm For Thermocouple Sensor

Product Details

Place of Origin: China Mainland

Brand Name: Tankii

Certification: ISO9001

Model Number: K

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Standard exoprt package in carton box or wooden box

Delivery Time: 5-7 days after getting the payment

Payment Terms: T/T, Paypal, Western Union, MoneyGram,

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

bare wire thermocouple

,

thermocouple lead wire

Standard:
ANSI, IEC584
Application:
Thermocouple,temperature Measurement
Tolerance:
IEC Class 1
Diameter:
Customized
Delivery Time:
5~10 Days After Getting The Payment
Item:
Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor
Conductor Type:
Stranded
Shape:
Wire On Bobbin
Standard:
ANSI, IEC584
Application:
Thermocouple,temperature Measurement
Tolerance:
IEC Class 1
Diameter:
Customized
Delivery Time:
5~10 Days After Getting The Payment
Item:
Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor
Conductor Type:
Stranded
Shape:
Wire On Bobbin
Description
Tankii Thermocouple Bare Wire , Type K J E T Bare Wire 0.2mm For Thermocouple Sensor

Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor


Tankii Type K thermocouple is composed of a Nickel-10% chromium (+) wire versus a nickel-5% aluminum and silicon (-) wire. This type of thermocouple should only be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). They are most widely used at temperatures above 540'C (1000"F) due to superior oxidation resistance in comparison to Types E, T, or J. There are some conditions which should be avoided when using Type K thermocouples.

Vacuum applications should not use Type K due to vaporization of chromium in the positive element.



Tankii Type K thermocouples should not be used in Sulfurous environments since both elements will rapidly corrode and the negative element will eventually fail mechanically due to becoming brittle.

Reducing atmospheres should also be avoided. Low oxygen levels can cause the Green-Rot phenomenon in which the chromium in the elements starts to oxidize causing large negative drifts in calibration.



Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor



Application Range of Tankii thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation





Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor



Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1and IEC-2.


Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.



Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor

More parameters of Tankii thermocouple wires:

Tankii Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t


Product details:

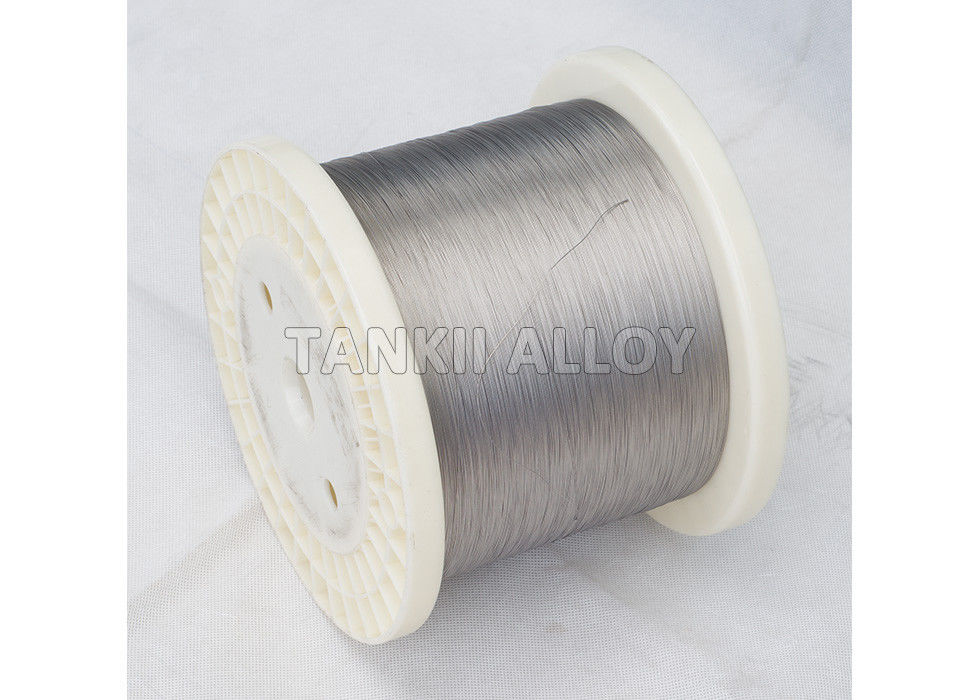

Tankii Thermocouple Bare Wire , Type K J E T Bare Wire 0.2mm For Thermocouple Sensor 0


 Delivery and Packing of thermocouple wire:

1. Packaging Details : DIN spools with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty


Tankii Thermocouple Alloy Wires Type K J E T Bare Wire 0.2mm For Thermocouple Sensor
Tankii Thermocouple Bare Wire , Type K J E T Bare Wire 0.2mm For Thermocouple Sensor 1


Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple  flat wire, thermocouple strip.
