RTD / Pt100 Resistance Cable Conductor Silver Plated Copper Wire 7 * 0.2mm 32AWG
RTD / Pt100 Resistance Cable Conductor Silver Plated Copper Wire 7*0.2mm 32AWG
A thermocouple is composed of two wires made from dissimilar metals. These two wires are joined to form a temperature measurement junction. Each wire is made of a specific metal or metal alloy. For example, the positive (+) conductor of a type K thermocouple is made of a chromium/nickel alloy called chromel and the negative (-) conductor is made of an aluminum/nickel alloy called alumel. Wire used to make a thermocouple junction is called thermocouple wire.
RTD / Pt100 Resistance Cable Conductor Silver Plated Copper Wire 7*0.2mm 32AWG
Shanghai Tankii Thermocouple types
Industry specifications recognize different types of thermocouples and thermocouple wires with a letter designating each type. Some common types are K, J, T and E. Different thermocouple types have different temperature ranges over which they can be used successfully. The chemical make-up of each thermocouple alloy, the temperature error limits allowed, and the color codes for each thermocouple type are specified in ISA/ANSI standard MC96.1. The important thing to remember from an application standpoint is that the thermocouple wire type must match the thermocouple type.
Tankii Extension Wire
Thermocouple extension wire types such as KX, JX, TX and EX are used to connect the measuring junction to the temperature recording or process control instrumentation. This can be hundreds or even thousands of feet away. Extension wire is normally exposed to temperatures and other environmental conditions that are less extreme than those encountered by the measuring junction. As a result, "extension" grade wire is not calibrated above 400° F (204° C) and is typically insulated and jacketed with materials with lower temperature ratings. Since low voltage instrumentation signals are being carried thermocouple extension wire is often shielded.
RTD / Pt100 Resistance Cable Conductor Silver Plated Copper Wire 7*0.2mm 32AWG
Tankii Resistance Temperature Detectors (RTDs)
There are other temperature measurement technologies than the thermocouple such as RTDs (resistance temperature detector). In applications with temperatures above 1,200° F (650° C) thermocouple is used. At lower temperatures RTDs are used for their simpler operation and greater sensitivity and stability. Thermocouples have a better response time. RTDs are special resistors whose resistance value changes with temperature in a known way. RTDs are connected to the temperature recording or process control instrumentation using ordinary copper instrumentation cable. Thermocouple wire is not required to connect an RTD.
Typical RTD cable is standard instrumentation cable in two, three, or four conductors or possibly groups of pairs/triads/quads depending on the type of RTD being used and number of devices being monitored. Individual or overall shielding is often used for noise immunity.

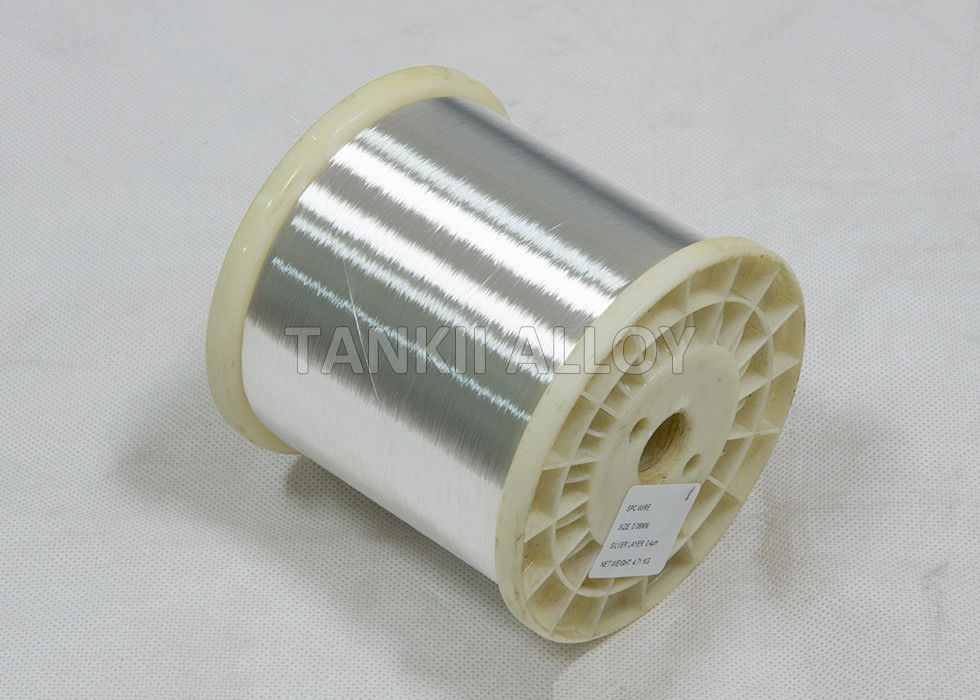

The RTD cable's conductor: silver plated copper wire / pure nickel wire
Tankii can supply bare conductor to customers if they request, single and stranded one are both available.
Single wire dia: 0.05~1.5mm
Stranded wire: section area no more than 6.0mm2
RTD / Pt100 Resistance Cable Conductor Silver Plated Copper Wire 7*0.2mm 32AWG
Packaging & Delivery
| Packaging Details |
Roll with plastic film wrapped and carton package |
| Delivery Detail |
Shipped in 7 days after payment |
Cable:
FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request
4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
5. What is your warranty ?
For most of our products, the warranty will be 12 months.
6. When will I get a solution for defective products?
Within 48 hours (on working days )
7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.
PTFE / PVC / Rubber Insulated RTD / Pt100 Resistance Cable With 3 Cores or 4 Cores
Welcome to call me or email to me for more info on silver plated copper wire, thermocouple cable , RTD cable.
