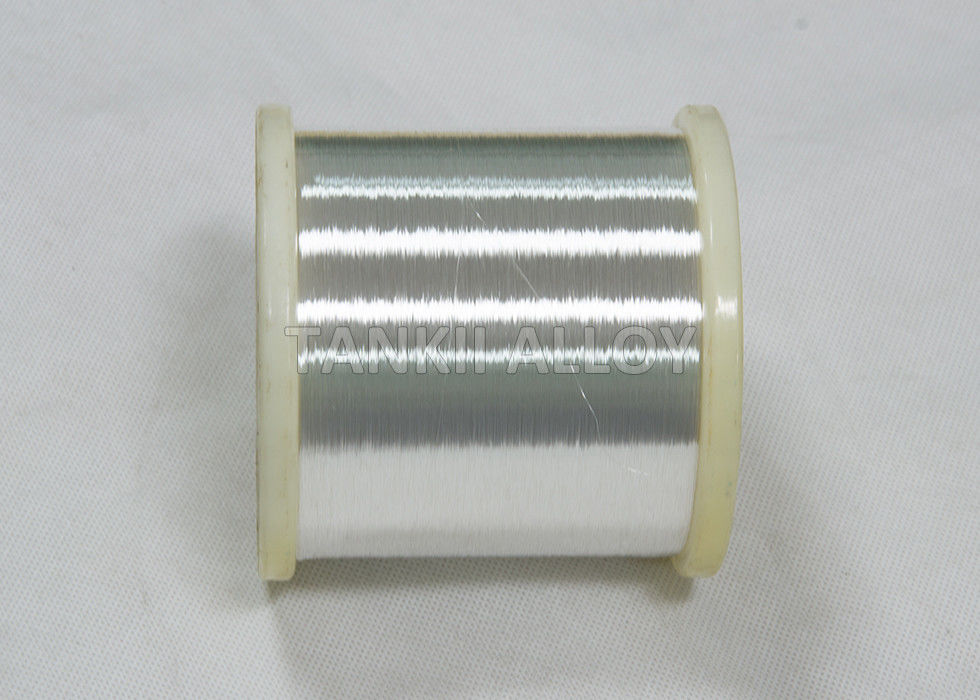

Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors

Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors
Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors

Large Image :  Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors

Description
Material: Cooper Wire Surface: Bright
Diameter: >0.15mm Wire Type: Single Wire
Insulation: Customized Wire Class: IEC Class I , II
Leading Time: Silver Plated Copper Wire 0.2mm 32AWG Used For Thermocouple Conductors
High Light:

thermocouple lead wire

,

high temperature thermocouple wire


Silver Plated Copper Wire 0.2mm 32AWG Used For Thermocouple Conductors





Silver-plated copper wire is made by silver plating or drawing on high quality oxygen-free copper. It has excellent conductivity, thermal conductivity, corrosion resistance and high temperature oxidation resistance.



Application scope: This product is a good conductor for signal transmission, and can be widely used as connecting wire in computer, conductor in electronics and power industry, conductor in communication industry, aerospace, military products and other high temperature resistant conductors. For long-term use, the temperature is below + 200 C.



Technical parameters:

1. The resistivity of silver-plated copper wire is less than 0.017241.mm2/m and the temperature coefficient of resistance is 0.003931/(℃)

2. The surface of silver-plated copper wire should be smooth and colourless, and there should be no defects such as metal particles, burrs or any mechanical damage that may damage the product quality. The coating is continuously and firmly adhered to the surface of copper wire, and at high temperature of +(400 +5)degrees centigrade for 30 minutes. No staining, blackening and discoloration occur.

3. According to customer's requirements, silver-plated copper wire with a thickness of more than 1 micron should undergo 1-3 cycles of sodium polysulfide test without blackening.


Silver Plated copper wire: 0.15-0.5mm



Soft condition Silver plated copper wire:



Dia (mm)

Tensile Strength

≥ N/ mm2

Elongation

≥%

0.05-0.1
0.11-0.15
0.16-0.25
0.26-0.5
0.51-1.0
1.1-2.0
---
196
196
196
196
196

5.5
10
15
20
25
25



Tolerance of the dia:

Nominal dia -mm Tolerance
0.050-0.100
0.110-0.250
0.260-0.700
0.710-1.000
1.100-2.000



±0.003
±0.005
±0.010
±0.015
±0.020










Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors 0





Application: The conductor of RTD cable.

Silver Plated Copper Wire 0.2mm 32AWG Bright Surface For Thermocouple Conductors 1








 Delivery and Packing of thermocouple wire:

1. Packaging Details : 5kg or 10kg  per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty


Welcome to call us  or email to us for more information on silver plated copper wire .
